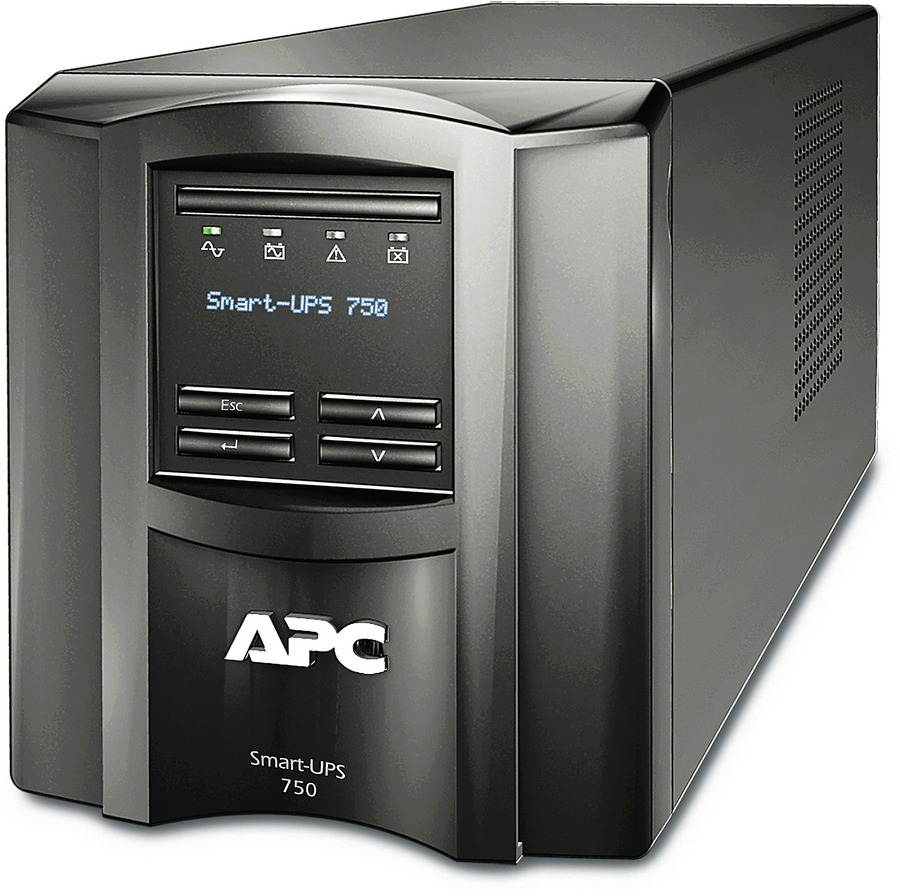

APC Smart-UPS 750VA LCD 120V with SmartConnect
|
|
Regularly: $593.00
On Sale: $569.28
Sale Ends:
May 26th, 2024
Manufacturer:
APC
Smart-UPS 750VA, LCD, 120V, with SmartConnect
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59194732
|
SMT750C
|
731304325451 |
Active
|
Details
|
General Information |
|
Summary |
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote power management of the UPS over the network.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
0.75 kVA |
|
Output power |
500 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
82 V |
|
Input operation voltage (max) |
144 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
110 V |
|
Output operation voltage (max) |
127 V |
|
Output frequency |
50/60 Hz |
|
Surge energy rating |
540 J |
|
Hold time (min) |
6 ms |
|
Hold time (max) |
10 ms |
|
Noise level |
41 dB |
|
Audible alarm(s) |
Yes |
|
Web-based management |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm |
|

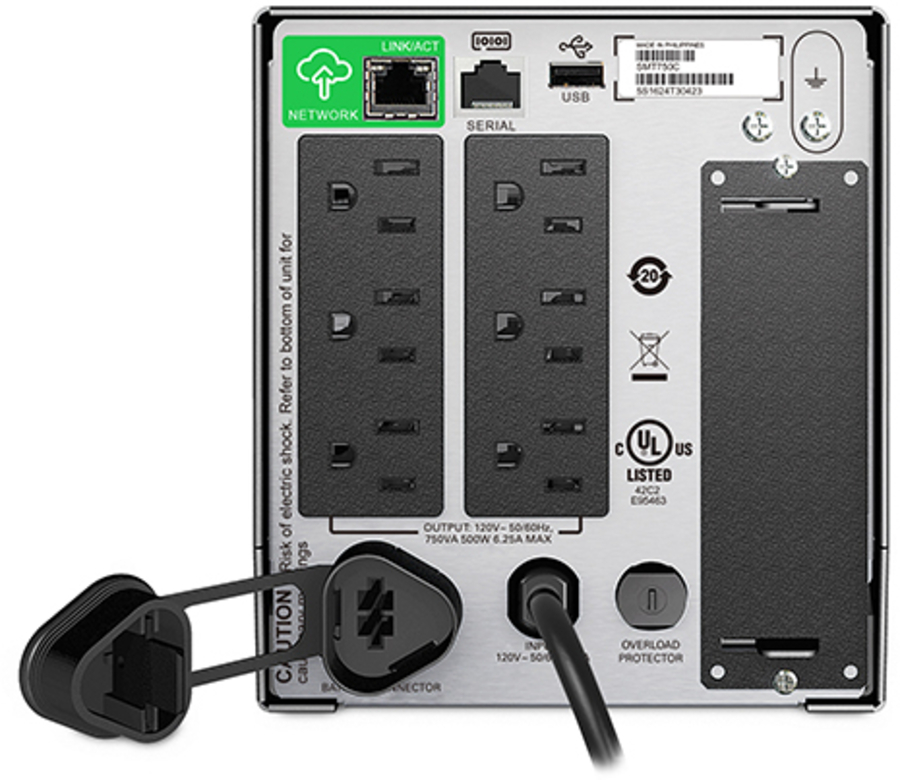

Ports & interfaces |
|
AC outlet types |
NEMA 5-15R |
|
Power plug |
NEMA 5-15P |
|
AC outlets quantity |
6 AC outlet(s) |
|
USB port |
Yes |
|
Serial interface |
Yes |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
3 h |
|
Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Cold start |
Yes |
|
Replacement battery cartridge |
RBC48 |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Display type |
LCD |
|
Certification |
CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS, ENERGY STAR |
|
Weight & dimensions |
|
Width |
138 mm |
|
Depth |
369 mm |
|
Height |
161 mm |
|
Weight |
12.5 kg |
|
Package width |
278 mm |
|
Package depth |
499 mm |
|
Package height |
301 mm |
|
Package weight |
14 kg |
|
Packaging data |
|
Cables included |
USB cable |
|
Resource CD |
Yes |
|
Software CD |
Yes |
|
Logistics data |
|
Products per pallet |
24 pc(s) |
|
Other features |
|
Output voltage |
120 V |
|
