General Information |
|
Summary |
ADAPTIVE SINEWAVE 10 OUT 15A AVR RJ11/45/COAX 3YR |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
1 kVA |
|
Output power |
600 W |
|
Input frequency |
60 Hz |
|
Surge energy rating |
1030 J |
|
Emergency Power Off (EPO) |
No |
|
Audible alarm(s) |
Yes |
|

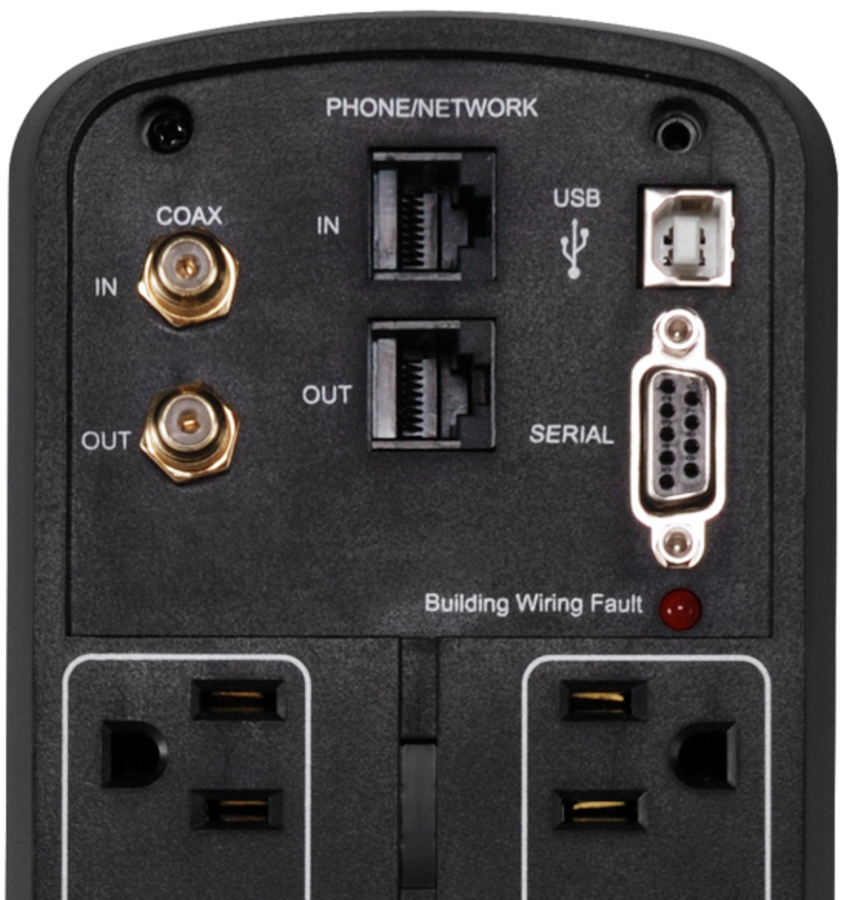

Ports & interfaces |
|

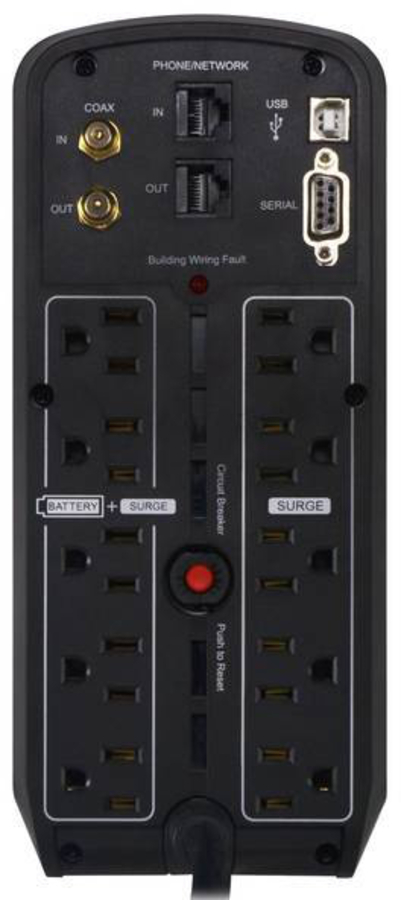

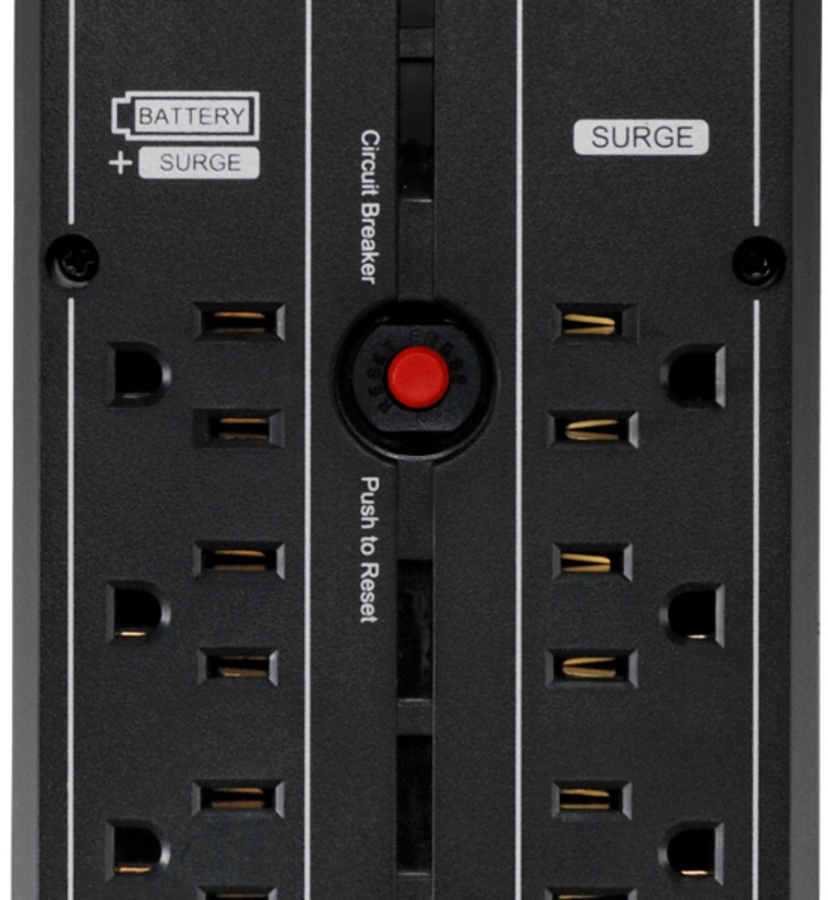

AC outlet types |
NEMA 5–15R |
|
AC outlets quantity |
10 AC outlet(s) |
|
Serial ports quantity |
1 |
|
Modem (RJ-11) ports |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
3 min |
|
Typical backup time at half load |
9 min |
|
Battery recharge time |
8 h |
|
Hot-swap battery |
No |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.52 m |
|

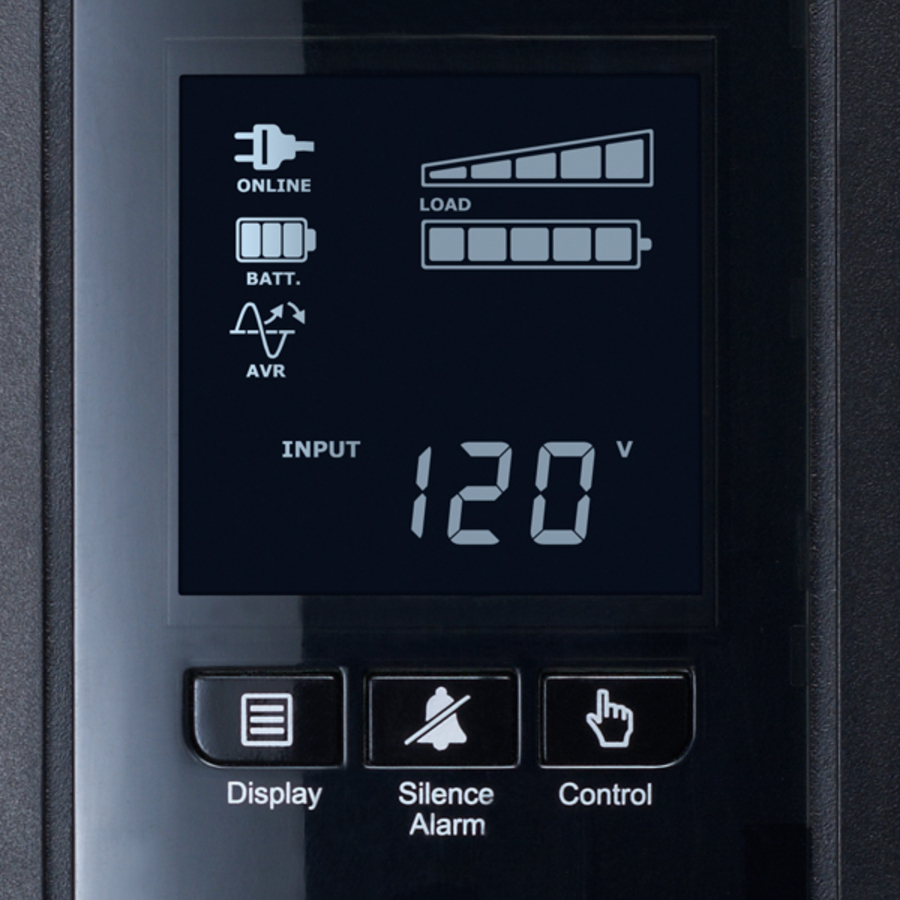

Display type |
LCD |
|
LED indicators |
Yes |
|
Certification |
UL1778, cUL 107.3, FCC DOC Class B |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Packaging data |
|
Bundled software |
PowerPanel Personal Edition |
|
Other features |
|
Battery type |
12V/9AH |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
90-140 V |
|
Overload protection |
Yes |
|
Weight (imperial) |
7.21 kg (15.9 lbs) |
|
Dimensions (W x D x H) (imperial) |
99.1 x 264.2 x 231.1 mm (3.9 x 10.4 x 9.1") |
