General Information |
|
Summary |
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection. |
|

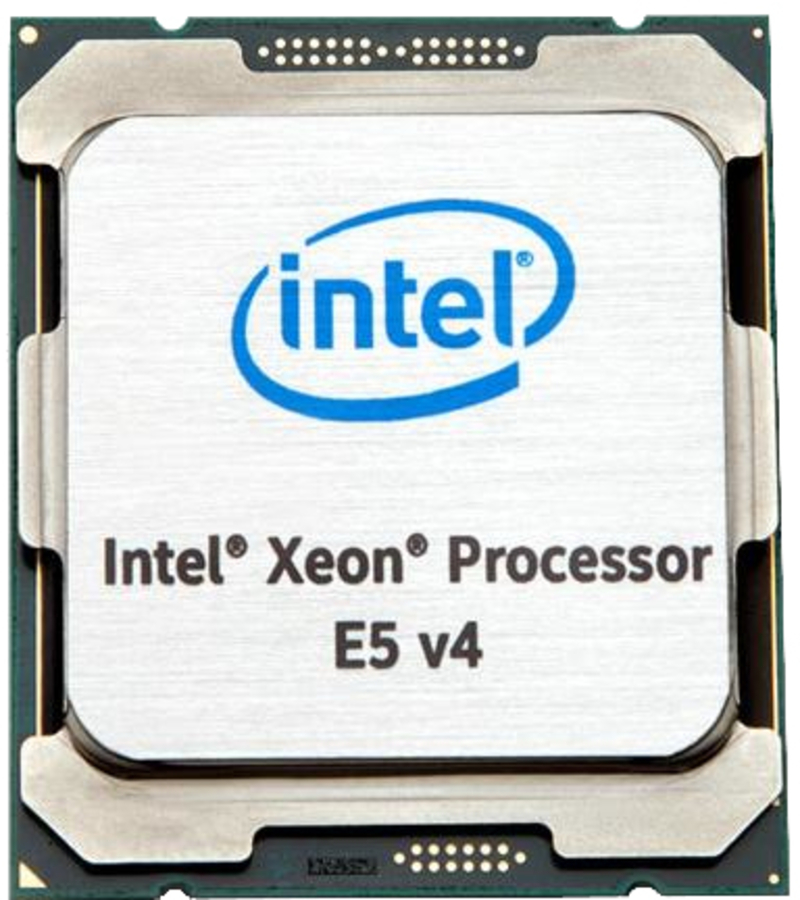

Processor |
|
Processor family |
Intel® Xeon® E5 v4 |
|
Processor cores |
14 |
|
Processor socket |
LGA 2011-v3 |
|
Processor lithography |
14 nm |
|
Box |
Yes |
|
Cooler included |
Yes |
|
Processor manufacturer |
Intel |
|
Processor model |
E5-2680V4 |
|
Processor base frequency |
2.4 GHz |
|
Processor operating modes |
64-bit |
|
Component for |
Server/workstation |
|
Processor threads |
28 |
|
System bus rate |
9.6 GT/s |
|
Processor boost frequency |
3.3 GHz |
|
Processor cache |
35 MB |
|
Processor cache type |
Smart Cache |
|
Thermal Design Power (TDP) |
120 W |
|
Bus type |
QPI |
|
Number of QPI links |
2 |
|
Memory bandwidth supported by processor (max) |
76.8 GB/s |
|
Processor codename |
Broadwell |
|
Processor ARK ID |
91754 |
|
Memory |
|
Memory channels |
Quad-channel |
|
Maximum internal memory supported by processor |
1.54 TB |
|
Memory types supported by processor |
DDR4-SDRAM |
|
Memory clock speeds supported by processor |
1600,1866,2133,2400 MHz |
|
ECC |
Yes |
|
Graphics |
|
On-board graphics card |
No |
|
Discrete graphics card |
No |
|
On-board graphics card model |
Not available |
|
Discrete graphics card model |
Not available |
|
Features |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Market segment |
Server |
|
Maximum number of PCI Express lanes |
40 |
|
PCI Express slots version |
3.0 |
|
PCI Express configurations |
1x16, 1x4, 1x8 |
|
Supported instruction sets |
AVX 2.0 |
|
Scalability |
2S |
|
Physical Address Extension (PAE) |
46 bit |
|
CPU configuration (max) |
2 |
|
Embedded options available |
Yes |
|
PCI Express CEM revision |
3.0 |
|
Export Control Classification Number (ECCN) |
5A992C |
|
Commodity Classification Automated Tracking System (CCATS) |
G077159 |
|
Processor special features |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® Identity Protection Technology (Intel® IPT) |
No |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel Flex Memory Access |
No |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Intel Trusted Execution Technology |
Yes |
|
Intel® Turbo Boost Technology 2.0 frequency |
3.3 GHz |
|
Intel® Transactional Synchronization Extensions |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel Demand Based Switching |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel 64 |
Yes |
|
Intel Identity Protection Technology version |
0.00 |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Conflict-Free processor |
Yes |
|
Intel® vPro™ Platform Eligibility |
Yes |
|
Operational conditions |
|
Tcase |
86 °C |
|
Technical details |
|
Processor cache |
35840 KB |
|
Product type |
Processor |
|
Supported memory types |
DDR4-SDRAM |
|
Bus bandwidth |
9.6 |
|
Bus type units |
GT/s |
|
Launch date |
Q1'16 |
|
Status |
Launched |
|
Processor brand name |
Intel Xeon |
|
Last change |
63903513 |
|
Product family |
Intel Xeon Processors |
|
Bus speed |
9.6 GT/s |
|
Servicing status |
End of Servicing Updates |
|
End of servicing updates date |
Thursday, June 30, 2022 |
|
Logistics data |
|
Harmonized System (HS) code |
8542310001 |
|
Packaging data |
|
Package width |
116 mm |
|
Package depth |
101 mm |
|
Package height |
44 mm |
|
Package weight |
99.5 g |
|
Package type |
Retail box |
|
Weight & dimensions |
|
Processor package size |
45mm x 52.5mm |
|
Other features |
|
Maximum internal memory |
1572864 MB |
