General Information |
|
Summary |
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.

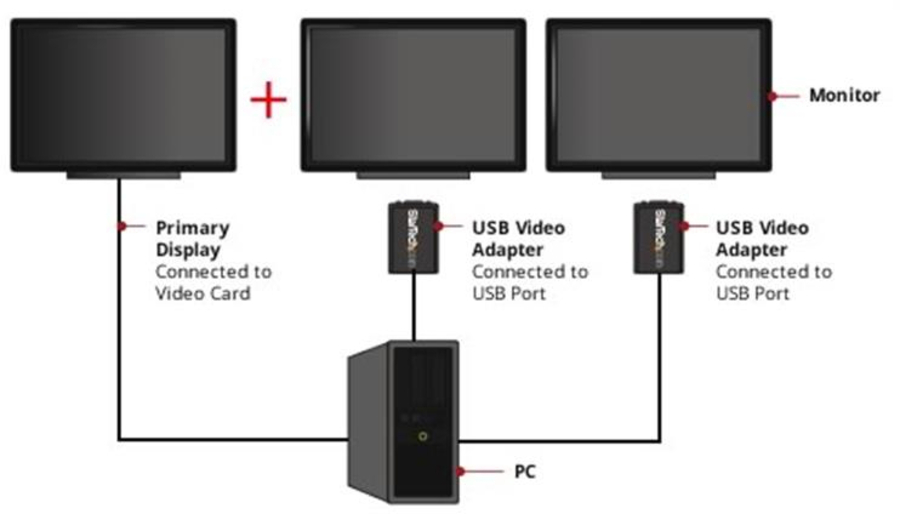

Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compact, USB-powered adapter provides the easiest way add secondary or multiple high-resolution displays to your PC
- Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system
- The ability to use multiple adapters (up to five) provides a scalable display configuration for future expansion |
|
Performance |
|
USB version |
2.0 |
|
DVI output |
No |
|
HDMI output |
No |
|
DisplayPort output |
No |
|
Number of displays supported |
1 |
|
USB connector type |
USB Type-A |
|
VGA (D-Sub) output |
Yes |
|
Internal memory |
32 MB |
|
Maximum resolution |
1920 x 1200 pixels |
|
Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
|
Chipset |
Trigger - T2-285A |
|
USB pass-through |
No |
|
Certification |
CE, FCC, RoHS |
|
Design |
|
Product colour |
Black |
|
Integrated USB cable |
Yes |
|
USB cable length |
0.5 m |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 55 °C |
|
Storage temperature (T-T) |
-25 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
52.5 mm |
|
Depth |
88 mm |
|
Height |
18 mm |
|
Weight |
94 g |
|
Package width |
145 mm |
|
Package depth |
210 mm |
|
Package height |
40 mm |
|
Package weight |
247 g |
|

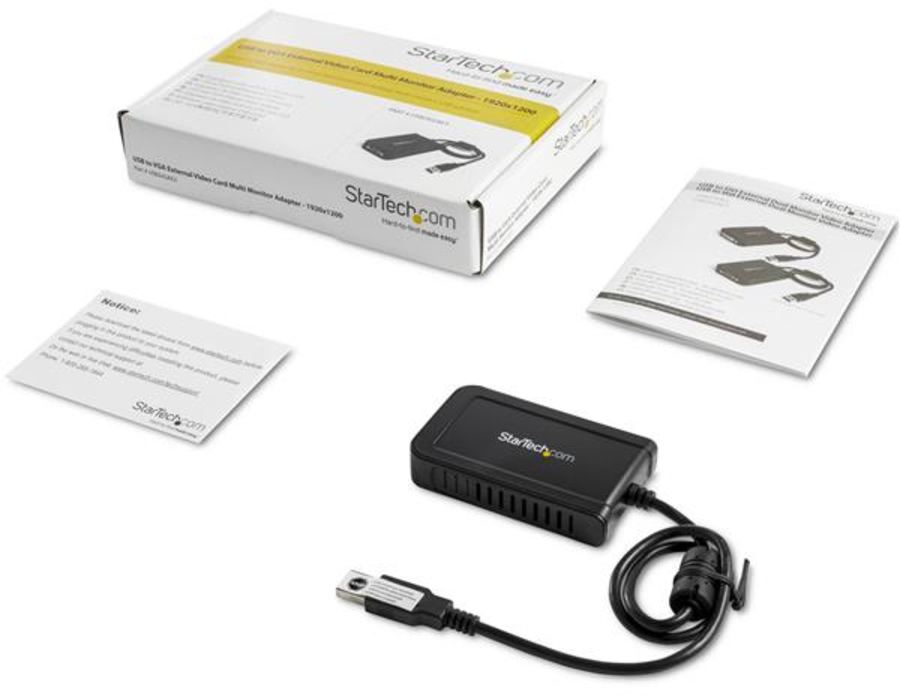

Packaging content |
|
Drivers included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
