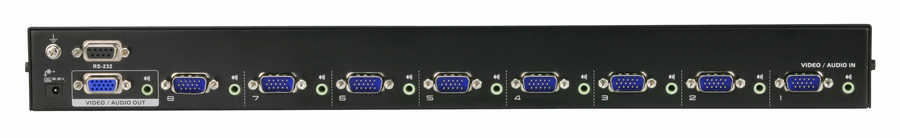

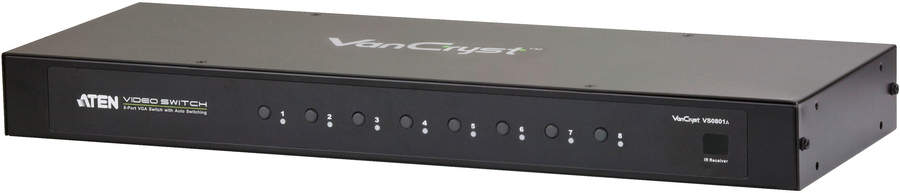

Aten 8-Port VGA/Audio Switch with Auto Switching
|
|
Regularly: $228.00
On Sale: $221.16
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
8-Port VGA/Audio Switch with Auto Switching
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38960912
|
VS0801A
|
672792004308 |
Active
|
Details
|
General Information |
|
Summary |
The VS0801A 8-Port VGA Switch with Auto Switching,connecting eight audio/video source notebooks to a single monitor or projector with full audio will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc..
VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection,Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance. |
|
Ports & interfaces |
|
Number of computers controlled |
8 |
|
Keyboard port type |
No |
|
Mouse port type |
No |
|
Video port type |
VGA |
|
Audio connections |
Yes |
|
Headphone outputs |
8 |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN |
No |
|
Performance |
|
Maximum resolution |
2048 x 1536 pixels |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
Rack capacity |
1U |
|
LED indicators |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power consumption (typical) |
1.01 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
159.8 mm |
|
Depth |
437 mm |
|
Height |
44 mm |
|
Weight |
2.1 kg |
|
