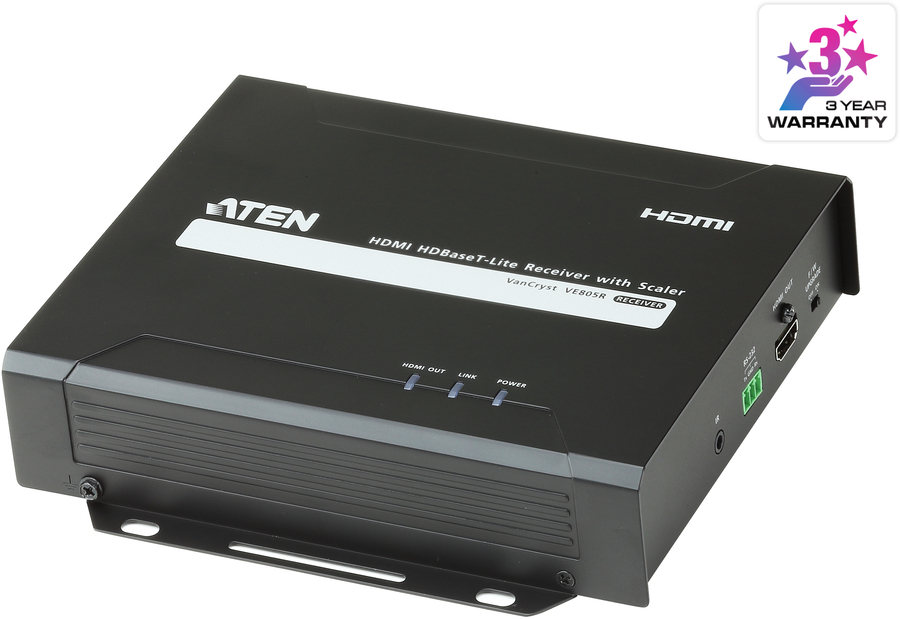

Aten HDMI HDBaseT-Lite Receiver with Scaler
|
|
Regularly: $635.00
On Sale: $615.95
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m)(HDBaseT Class B)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38961931
|
VE805R
|
672792006265 |
Active
|
Details
|
General Information |
|
Summary |
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device. |
|
Features |
|
Type |
AV receiver |
|
Maximum resolution |
1920 x 1080 pixels |
|
Cable types supported |
Cat5e, Cat6a |
|
Maximum transfer distance |
60 m |
|
Supported video modes |
1080p |
|
HDCP |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
HDBaseT certified |
Yes |
|
Ports & interfaces |
|
HDBaseT port |
Yes |
|
HDMI in |
1 |
|
RS-232 input ports |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage (receiver) |
5 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Receiver dimensions (WxDxH) |
169.2 x 177.4 x 42 mm |
|
Receiver weight |
810 g |
|
Technical details |
|
Compliance certificates |
RoHS |
|
