General Information |
|
Summary |

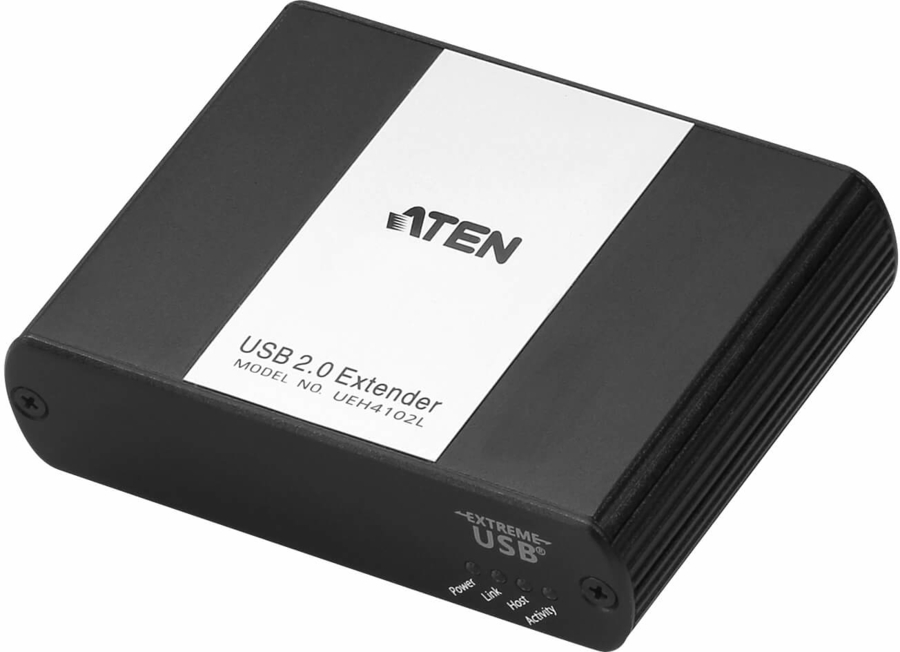

The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.

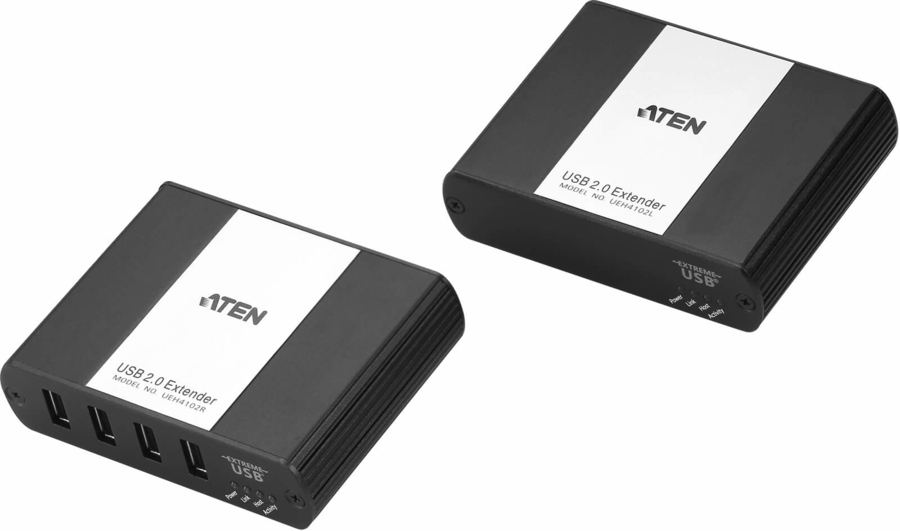

UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address – no pairing action required during installation.
A true plug-and-play solution, the UEH4102 is compatible with all leading operating systems, and supports all USB peripherals, such as keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB device. The UEH4102 harnesses the full capability of the USB 2.0 standard that provides a durable, reliable and high-quality data communication. |
|
Performance |
|
Type |
Network transmitter & receiver |
|
Maximum transfer distance |
100 m |
|
Data transfer rate |
480 Mbit/s |
|
Cable types supported |
Cat5e, Cat6, Cat7 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Windows operating systems supported |
Yes |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Ports & interfaces |
|
RJ-45 ports quantity (transmitter) |
1 |
|
RJ-45 ports quantity (receiver) |
1 |
|
USB 2.0 ports quantity |
5 |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Power |
|
Power consumption (receiver) (max) |
15 W |
|
External power adapter |
Yes |
|
Output voltage |
5 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
76 mm |
|
Depth |
100 mm |
|
Height |
26 mm |
|
Weight |
190 g |
|
Packaging content |
|
Cables included |
USB |
|
Manual |
Yes |
|
AC adapter included |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
