Aten HDMI HDBaseT Extender
|
|
Regularly: $461.00
On Sale: $447.17
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52409170
|
VE811
|
672792007651 |
Active
|
Details
|
General Information |
|
Summary |

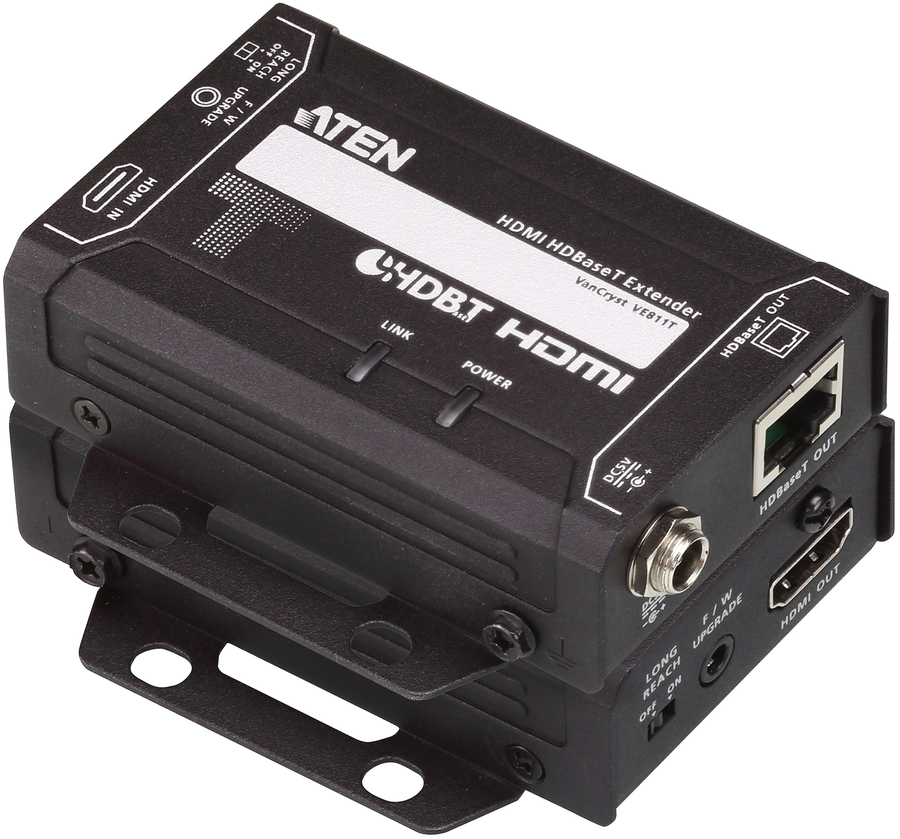

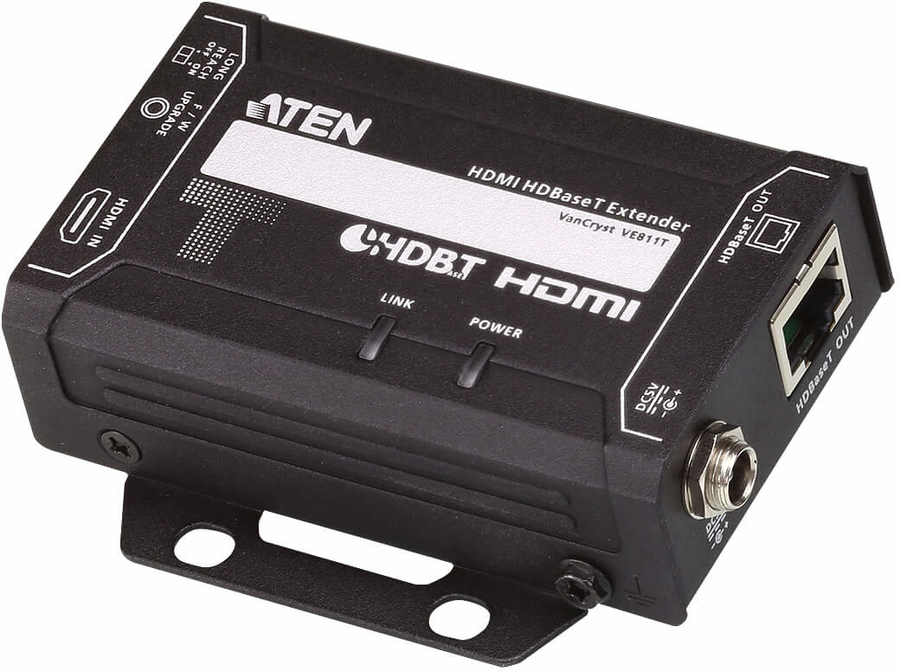

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat5e, Cat6, Cat6a |
|
Maximum transfer distance |
150 m |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Bandwidth |
10.2 Gbit/s |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Rack mounting |
Yes |
|
Firmware upgradeable |
Yes |
|
Consumer Electronics Control (CEC) support |
Yes |
|
Plug and Play |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Ethernet LAN |
Yes |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
DC-in jack |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Receiver dimensions (WxDxH) |
73 x 86.4 x 24.7 mm |
|
Receiver weight |
170 g |
|
Transmitter dimensions (WxDxH) |
73 x 86.4 x 24.7 mm |
|
Transmitter weight |
160 g |
|
