Aten HDMI HDBaseT Extender with Dual Output
|
|
Regularly: $1093.00
On Sale: $1060.21
Sale Ends:
December 7th, 2025
Manufacturer:
Aten
HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52409177
|
VE814A
|
881317518361 |
Active
|
Details
|
General Information |
|
Summary |

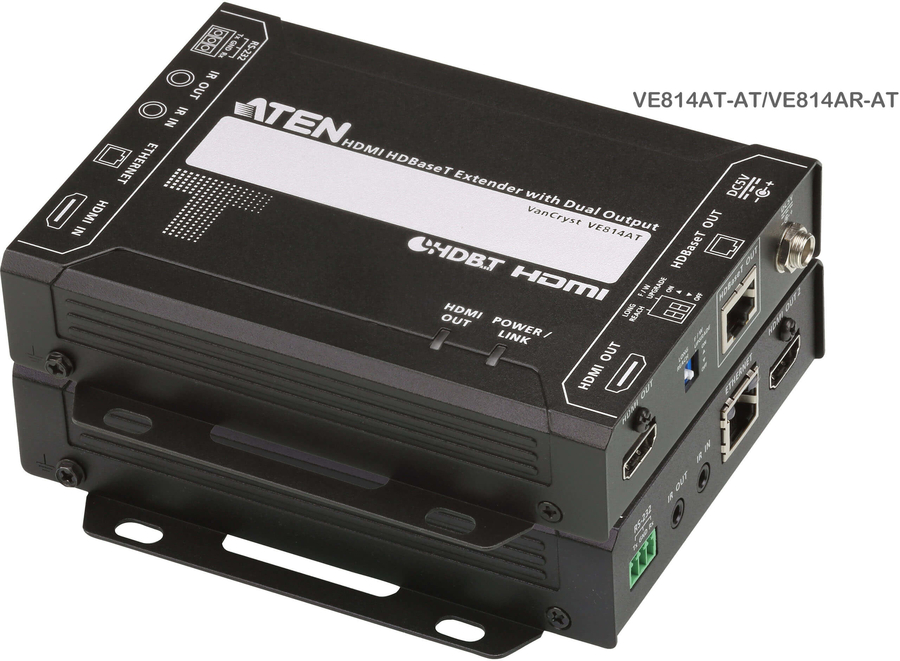

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

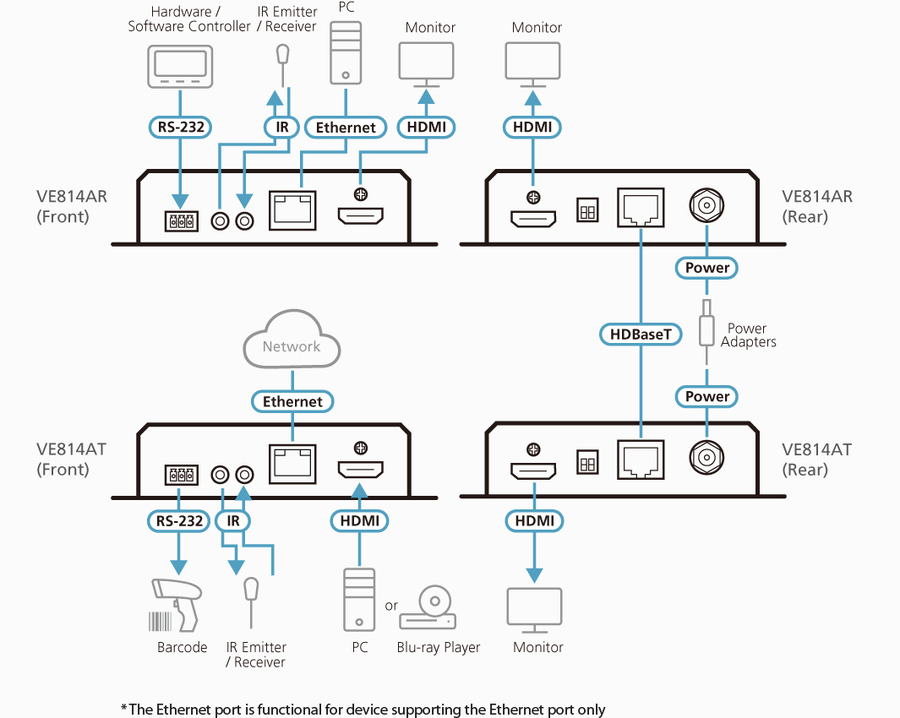

The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat5e, Cat6, Cat6a |
|
Maximum transfer distance |
150 m |
|
Bandwidth |
340 MHz |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Rack mounting |
Yes |
|
Consumer Electronics Control (CEC) support |
Yes |
|
Plug and Play |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
HDMI in |
1 |
|
Number of HDMI outputs |
3 |
|
Remote (IR) input |
2 |
|
Remote (IR) output |
2 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage |
5 V |
|
Power consumption (transmitter) (max) |
5.1 W |
|
Power consumption (receiver) (max) |
7.9 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Receiver dimensions (WxDxH) |
123 x 140.4 x 30 mm |
|
Receiver weight |
470 g |
|
Transmitter dimensions (WxDxH) |
123 x 140.4 x 30 mm |
|
Transmitter weight |
450 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS |
|
