Aten 8-Channel Relay Expansion Box
|
|
Regularly: $713.00
On Sale: $691.61
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
8-Channel Relay Expansion Box
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570927
|
VK248
|
- |
Active
|
Details
|
General Information |
|
Summary |

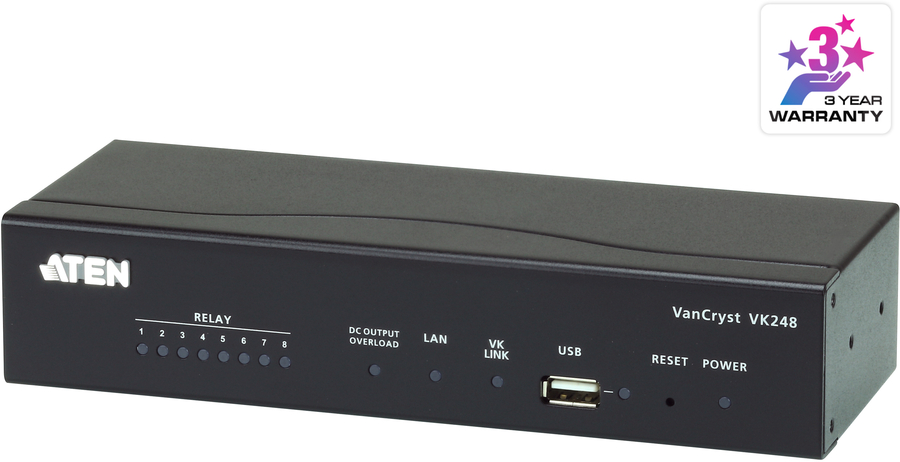

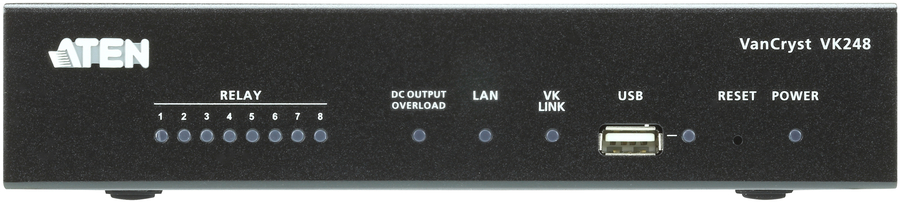

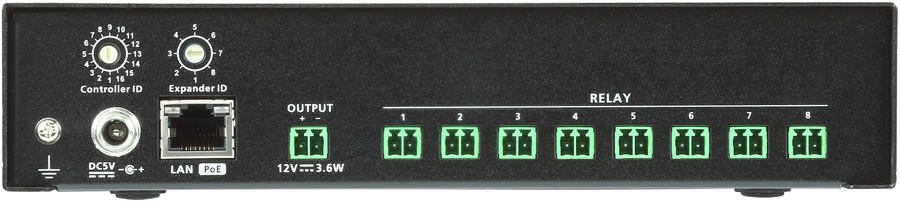

The VK248 provides Ethernet-to-relay channel connectivity with 8 channels of relay output. It allows users to remotely access relay devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.
What’s more, the VK248 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional equipment, such as screens, projector lifts and blinds, through an ATEN controller in any environments where more devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network. |
|
Features |
|
Built-in display |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Reset button |
Yes |
|
Number of relay pins |
2 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet interface type |
Fast Ethernet |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Cabling technology |
10/100Base-T(X) |
|
Supported network protocols |
ICMP, TCP/IP, DHCP, HTTPS, SSH |
|
Ports & interfaces |
|
USB port |
Yes |
|
USB ports quantity |
1 |
|
USB port type |
USB Type-A |
|
DC-in jack |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Power |
|
Power consumption (max) |
13 W |
|
Power consumption (typical) |
10 W |
|
Power supply location |
External |
|
DC output voltage |
12 |
|
Packaging content |
|
Terminal block included |
Yes |
|
Manual |
Yes |
|
Weight & dimensions |
|
Width |
75.8 mm |
|
Depth |
200 mm |
|
Height |
42 mm |
|
Weight |
650 g |
|
