Aten 4K HDMI over IP Transmitter
|
|
Regularly: $992.00
On Sale: $962.24
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
4K HDMI over IP Transmitter
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570947
|
VE8950T
|
672792007576 |
Active
|
Details
|
General Information |
|
Summary |
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

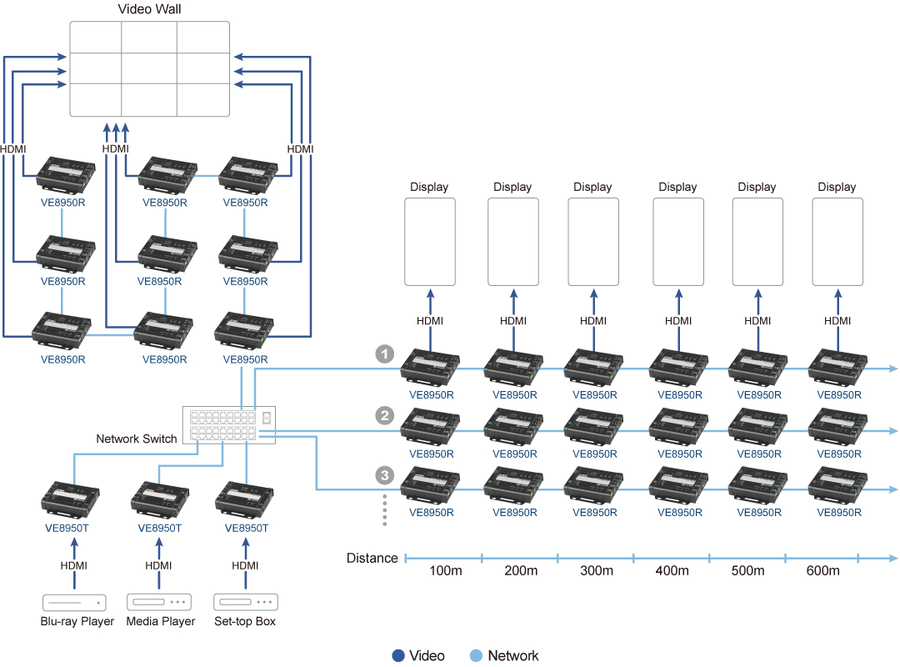

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide : assets.aten.com/product/manual/Implementation_Guide.pdf |
|
Features |
|
Type |
AV transmitter |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat5e, Cat6 |
|
Maximum transfer distance |
100 m |
|
Audio system |
stereo |
|
LED indicators |
Yes |
|
Supported video modes |
1080p |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
HDCP |
Yes |
|
Material |
Metal |
|
Control type |
Buttons |
|
Firmware upgradeable |
Yes |
|
Baud rate |
19.2 Kbit/s |
|
Impedance |
100 Ω |
|
Daisy chain |
Yes |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
RJ-45 output ports |
1 |
|
HDMI in |
1 |
|
USB ports quantity |
1 |
|
USB version |
2.0 |
|
USB connector type |
USB Type-B |
|
Video in |
1 |
|
Audio input |
1 |
|
Serial ports quantity |
1 |
|
Serial interface type |
RS-232 |
|
Remote (IR) input |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage |
5 V |
|
Power consumption (typical) |
3.08 W |
|
External power adapter |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
136 mm |
|
Depth |
101 mm |
|
Height |
29.6 mm |
|
Weight |
500 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS |
|
