General Information |
|
Summary |

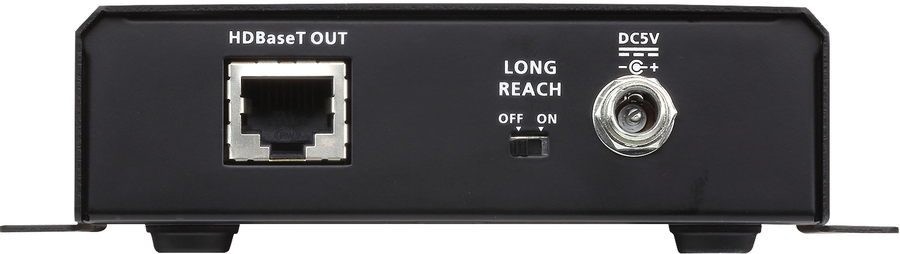

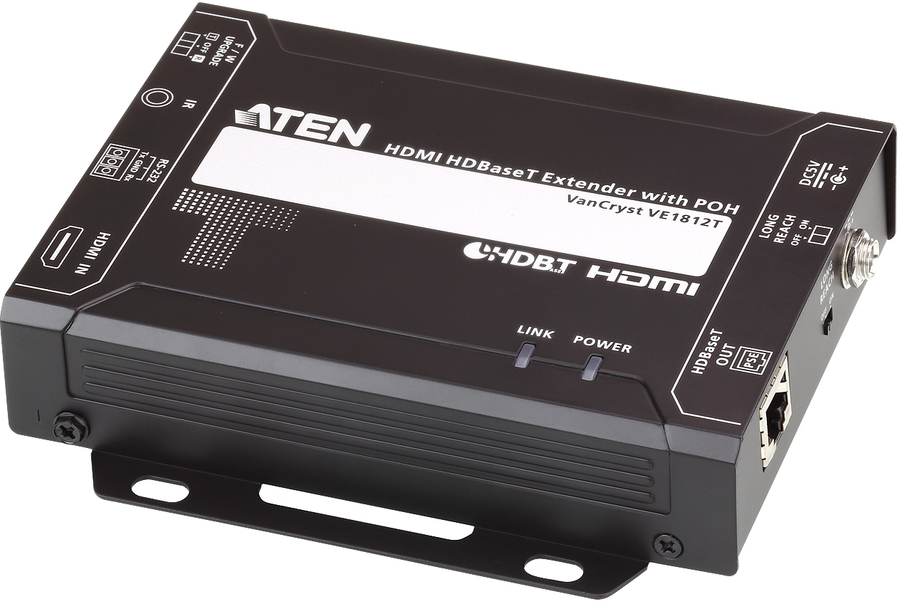

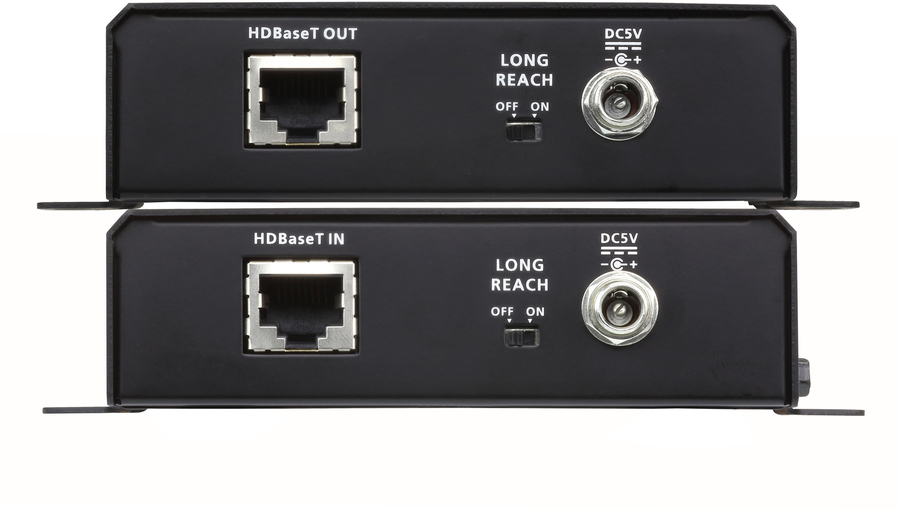

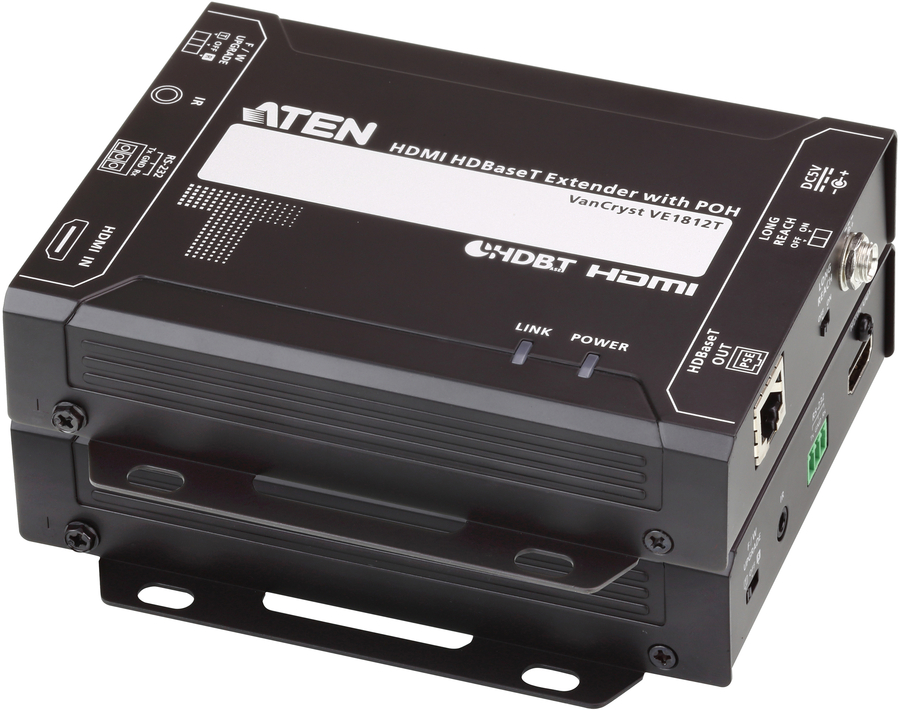

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

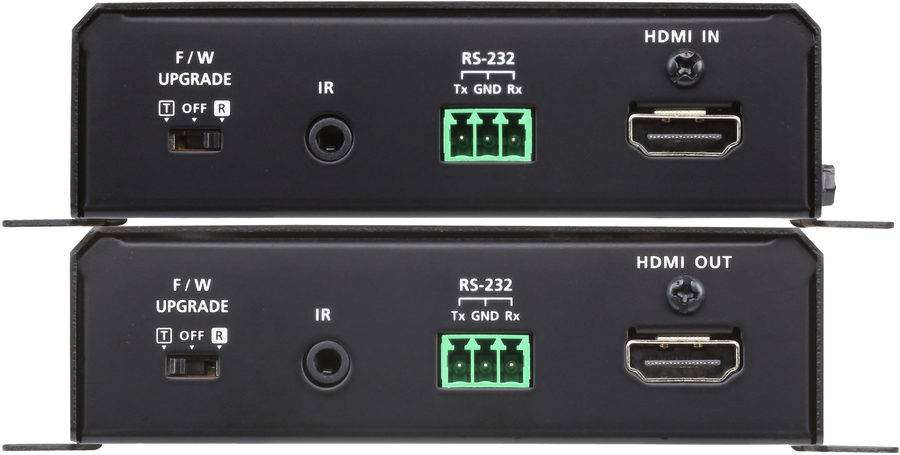

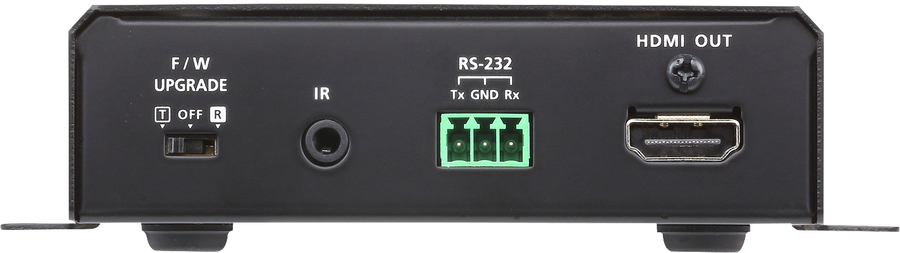

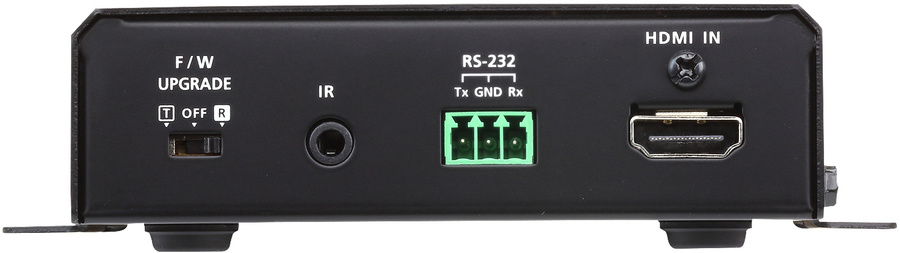

The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat5e, Cat6, Cat6a |
|
Maximum transfer distance |
150 m |
|
LED indicators |
Yes |
|
Supported video modes |
1080p |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Bandwidth |
340 MHz |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Firmware upgradeable |
Yes |
|
Consumer Electronics Control (CEC) support |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
HDBaseT port |
Yes |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
RS-232 input ports |
1 |
|
RS-232 output ports |
1 |
|
Video in |
1 |
|
Video out |
1 |
|
3.5 mm (1/8-inch) in |
Yes |
|
3.5 mm (1/8-inch) out |
Yes |
|
Remote (IR) input |
1 |
|
Remote (IR) output |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage (transmitter) |
5 V |
|
Operating voltage (receiver) |
5 V |
|
Power consumption (transmitter) (max) |
4.3 W |
|
Power consumption (receiver) (max) |
6.4 W |
|
External power adapter |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Receiver dimensions (WxDxH) |
123 x 140.4 x 30 mm |
|
Receiver weight |
450 g |
|
Transmitter dimensions (WxDxH) |
123 x 140.4 x 30 mm |
|
Transmitter weight |
470 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Quick start guide |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS |
