Aten 8-Port True 4K HDMI Splitter
|
|
Regularly: $560.00
On Sale: $543.20
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
8-Port True 4K HDMI Splitter
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570970
|
VS0108HB
|
672792008375 |
Active
|
Details
|
General Information |
|
Summary |

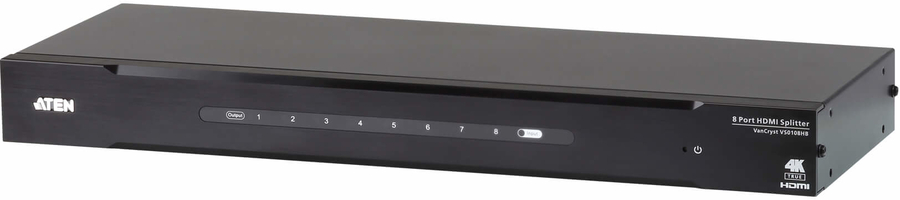

The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theater, commercial settings, educational centers, meeting rooms, or wherever needed to meet application requirements. |
|
Ports & interfaces |
|
Video ports quantity |
9 |
|
Video port type |
HDMI |
|
Video out |
8x HDMI |
|
HDMI version |
2.0 |
|
Connector(s) |
RS-232, HDMI |
|
DC-in jack |
Yes |
|
Features |
|
Maximum resolution |
4096 x 2160 pixels |
|
Product colour |
Black |
|
Housing material |
Metal |
|
3D |
Yes |
|
Maximum operating distance |
3 m |
|
Maximum refresh rate |
60 Hz |
|
Bandwidth |
600 MHz |
|
Rack mounting |
Yes |
|
HDCP |
Yes |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Plug and Play |
Yes |
|
LED indicators |
Yes |
|
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
|
Certification |
RoHS |
|
Power |
|
Output voltage |
5 V |
|
Power consumption (typical) |
11.95 W |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
437.2 x 157.8 x 44 mm |
|
Weight |
2.18 kg |
|
Packaging content |
|
Cables included |
AC |
|
User guide |
Yes |
|
AC adapter included |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
