Aten 10-Port 4K HDMI Splitter
|
|
Regularly: $486.00
On Sale: $471.42
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
10-Port 4K HDMI Splitter
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
52570988
|
VS0110HA
|
672792009457 |
Active
|
Details
|
General Information |
|
Summary |

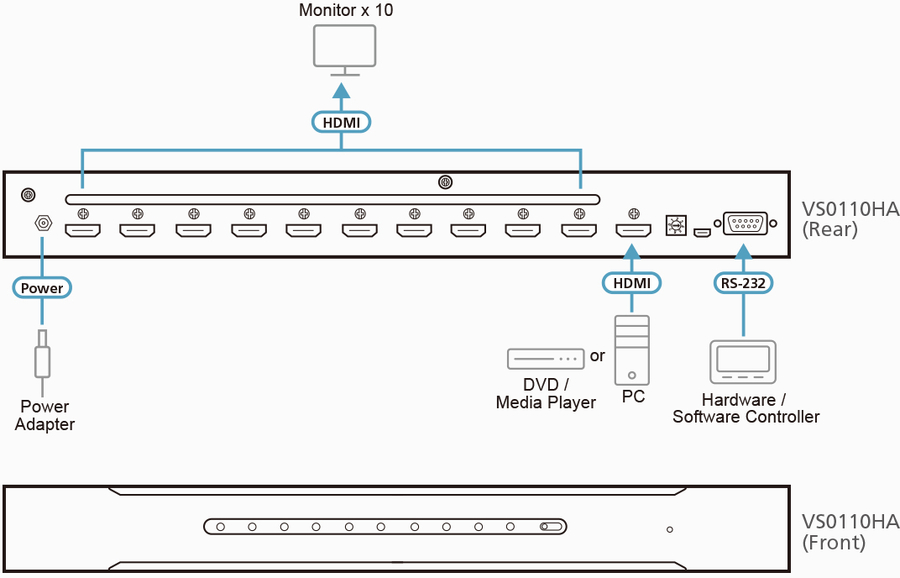

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.
The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings. |
|
Ports & interfaces |
|
Video ports quantity |
10 |
|
Video port type |
HDMI |
|
Video in |
1 |
|
HDMI version |
1.4 |
|
Serial ports quantity |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Full HD |
Yes |
|
3D |
Yes |
|
Maximum operating distance |
15 m |
|
Bandwidth |
340 MHz |
|
Rack mounting |
Yes |
|
HDCP |
Yes |
|
Power LED |
Yes |
|
Plug and Play |
Yes |
|
Supported video modes |
1080p |
|
LED indicators |
Link, Power |
|
Certification |
FCC, CE |
|
Power |
|
AC input voltage |
5 V |
|
Power consumption (typical) |
4.34 W |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
157.8 x 437.2 x 44 mm |
|
Weight |
2.1 kg |
|
Packaging content |
|
Manual |
Yes |
|
User guide |
Yes |
|
AC adapter included |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Technical details |
|
Maximum video resolution |
4096 x 2160 pixels |
|
Compliance certificates |
RoHS |
|
Technical features |
1x RS233, 1x Micro USB, 1x DC IN, 1x HDMI In, 10x HDMI Out |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
