Aten 4 x 2 True 4K Presentation Matrix Switch
|
|
Regularly: $684.00
On Sale: $663.48
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
4 x 2 True 4K Presentation Matrix Switch
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54636423
|
VP1420
|
672792010873 |
Active
|
Details
|
General Information |
|
Summary |

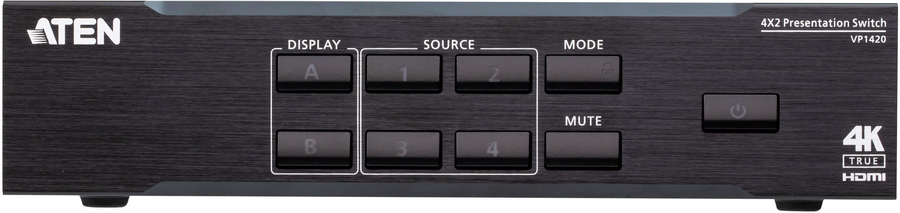

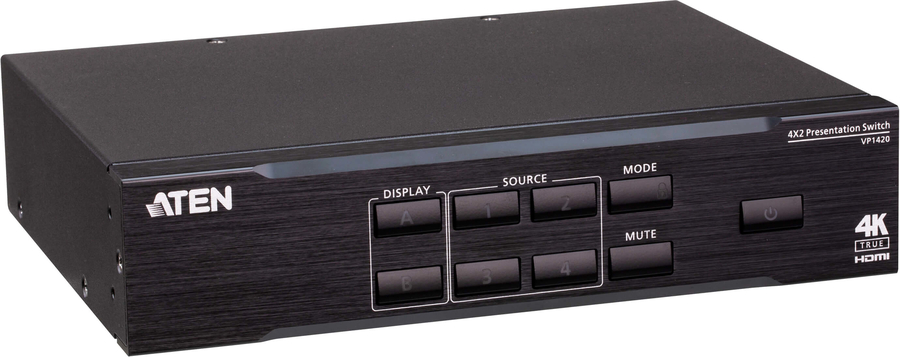

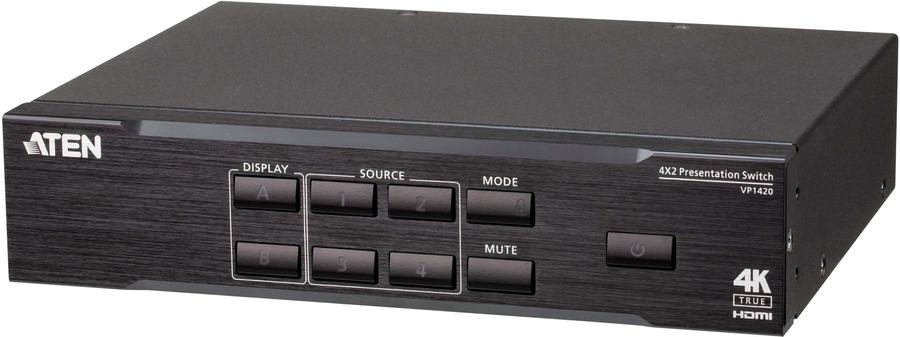

The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.
With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels. |
|

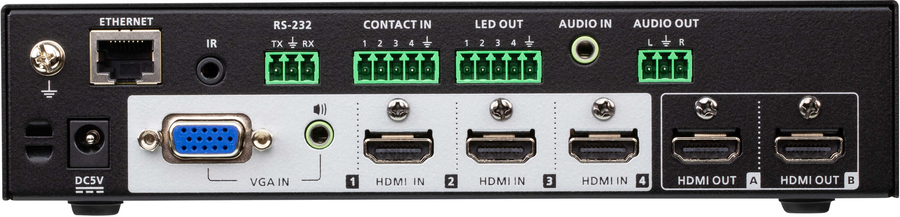

Ports & interfaces |
|
Video port type |
HDMI/VGA |
|
HDMI ports quantity |
3 |
|
VGA (D-Sub) ports quantity |
1 |
|
RJ-45 input ports |
1 |
|
RS-232 ports |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Material |
Metal |
|
Product colour |
Black |
|
HDCP |
Yes |
|
Maximum operating distance |
15 m |
|
HDCP version |
2.2 |
|
Weight & dimensions |
|
Width |
160 mm |
|
Depth |
200 mm |
|
Height |
44 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Technical details |
|
Compliance certificates |
RoHS |
|
