Aten 8-Channel Digital I/O Expansion Box
|
|
Regularly: $713.00
On Sale: $691.61
Sale Ends:
November 23rd, 2025
Manufacturer:
Aten
8-Channel Digital I/O Expansion Box
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
55196564
|
VK258
|
- |
Active
|
Details
|
General Information |
|
Summary |

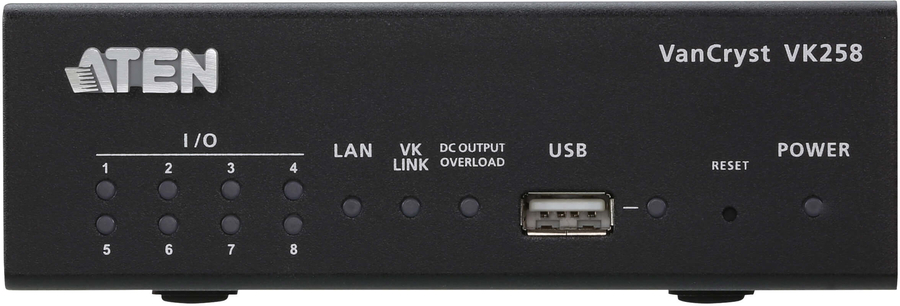

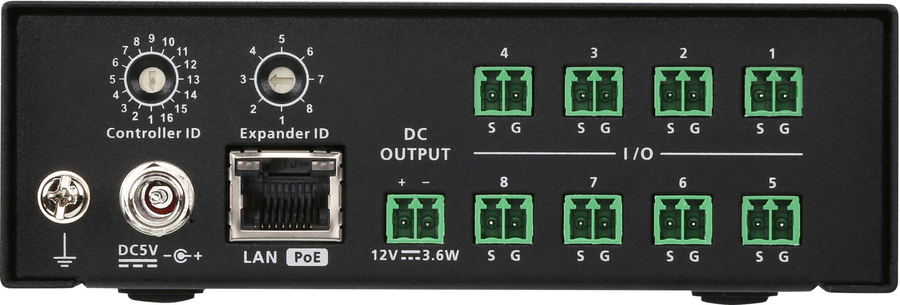

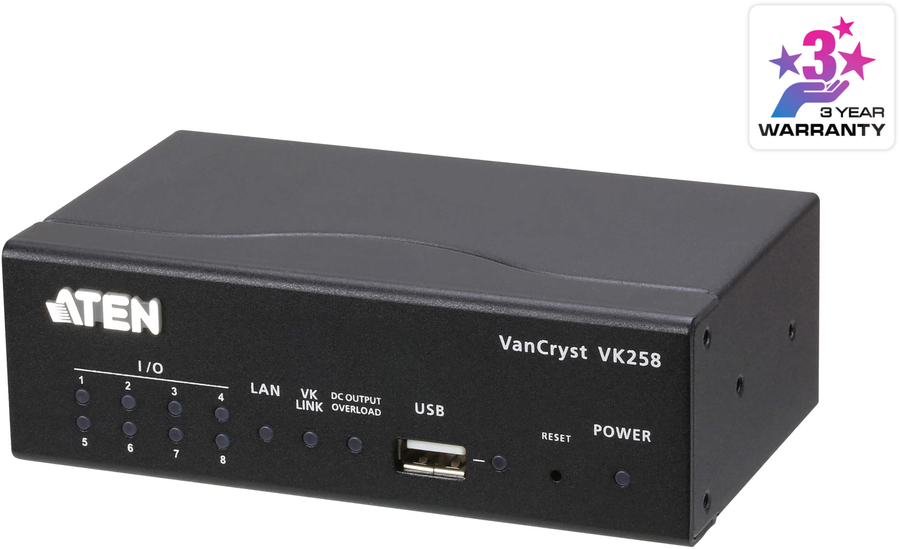

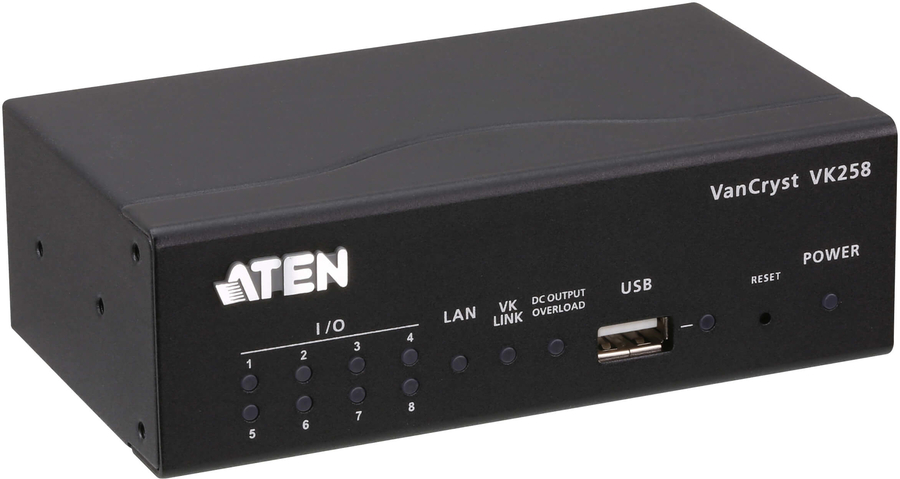

The VK258 provides Ethernet-to-digital I/O connectivity with 8 channels of digital input/output. It allows users to remotely access digital input / output devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.
What’s more, the VK258 serves as a flexible expansion box of the ATEN Control System, enabling users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network. |
|
Features |
|
Built-in display |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Reset button |
Yes |
|
Number of relay pins |
2 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet interface type |
Fast Ethernet |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Cabling technology |
10/100Base-T(X) |
|
Supported network protocols |
ICMP, TCP/IP, DHCP, HTTPS, SSH |
|
Ports & interfaces |
|
USB port |
Yes |
|
USB ports quantity |
1 |
|
USB port type |
USB Type-A |
|
DC-in jack |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Power |
|
Power consumption (max) |
2.75 W |
|
Power consumption (typical) |
2.2 W |
|
Power supply location |
External |
|
DC output voltage |
12 |
|
Packaging content |
|
Terminal block included |
Yes |
|
Manual |
Yes |
|
Weight & dimensions |
|
Width |
75.8 mm |
|
Depth |
130 mm |
|
Height |
42 mm |
|
Weight |
460 g |
|
