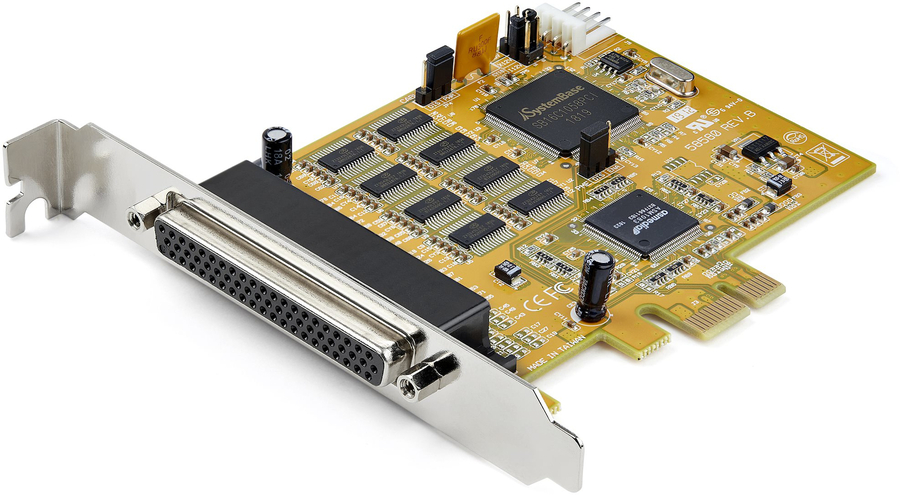

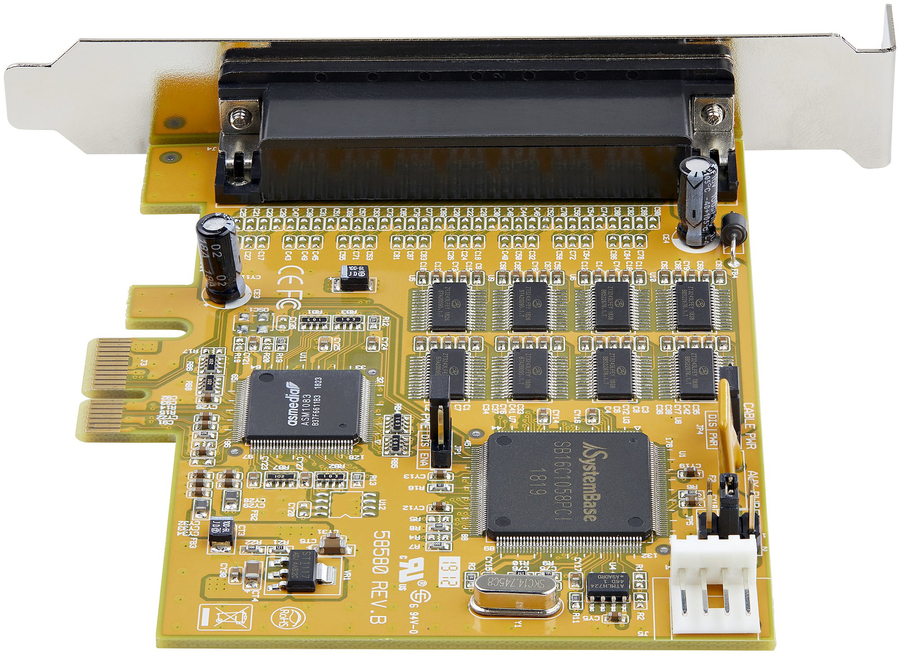

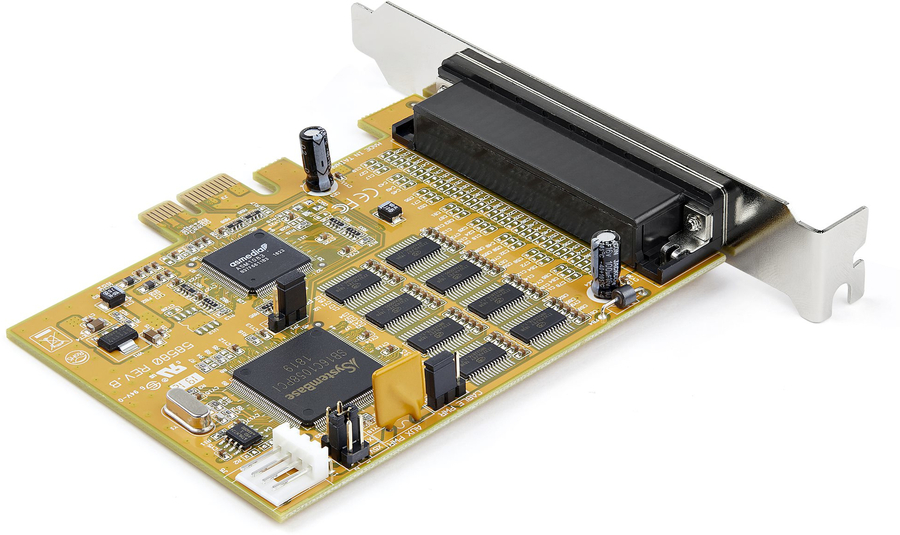

StarTech 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card
|
|
Price: $292.00
Manufacturer:
StarTech
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to Serial DB9 Card, 16C1050 UART, 15kV ESD - Windows Only
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58123761
|
PEX8S1050
|
65030888295 |
Active
|
Details
|
General Information |
|
Summary |
Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

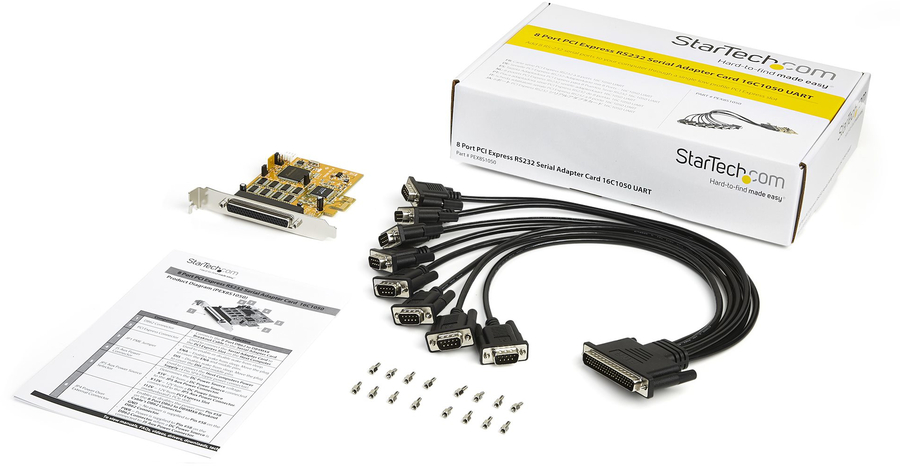

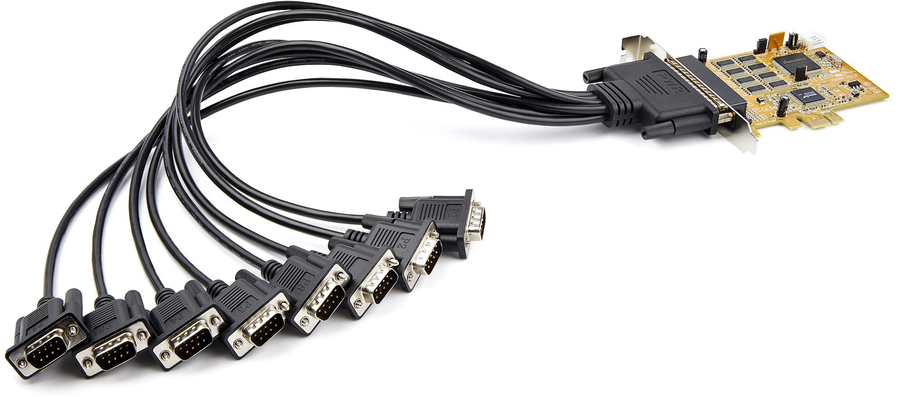

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
Serial |
|
Serial ports quantity |
8 |
|
Serial interface type |
RS-232 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Yellow |
|
Maximum cable length |
0.5 m |
|
Mean time between failures (MTBF) |
160013 h |
|
Features |
|
Chipset |
ASMedia - ASM1083, System Base - SB16C1058PCI |
|
Baud rate |
921.6 Kbit/s |
|
FIFO (First In, First Out) |
256 B |
|
Data bits |
5, 6, 7, 8 |
|
Stop bits |
1, 1.5, 2 |
|
Parity bit |
Even, No, Odd |
|
Flow Control type |
RTS/CTS, XON/XOFF |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
16 mm |
|
Depth |
105 mm |
|
Height |
120 mm |
|
Weight |
74 g |
|
Packaging data |
|
Cables included |
Serial |
|
Quick installation guide |
Yes |
|
Package width |
190 mm |
|
Package depth |
290 mm |
|
Package height |
65 mm |
|
Package weight |
672 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Products per master (outer) case |
14 pc(s) |
|
Master (outer) case width |
400 mm |
|
Master (outer) case length |
510 mm |
|
Master (outer) case height |
315 mm |
|
Other features |
|
Compliance industry standards |
16C1050 UART |
|
