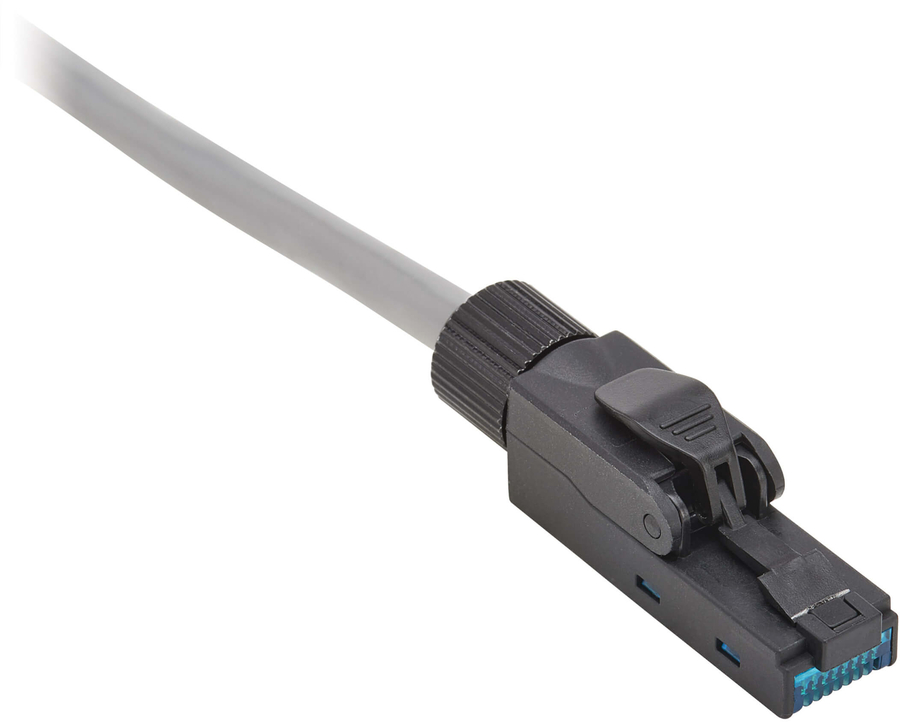

Tripp Lite Cat6a Class EA UTP Field-Termination Plug
|
|
Regularly: $13.00
On Sale: $12.48
Sale Ends:
July 18th, 2025
Manufacturer:
Tripp Lite
Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59462673
|
N232-USC6A-1
|
37332283207 |
Active
|
Details
|
General Information |
|
Summary |

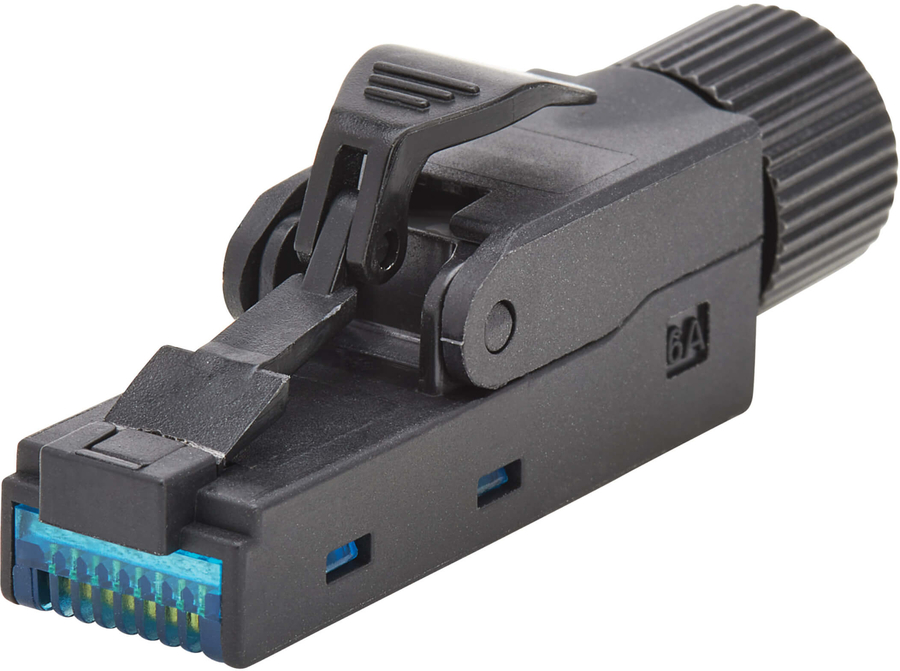

Tool-Free RJ45 Cat6a Plug Designed for Field Installation

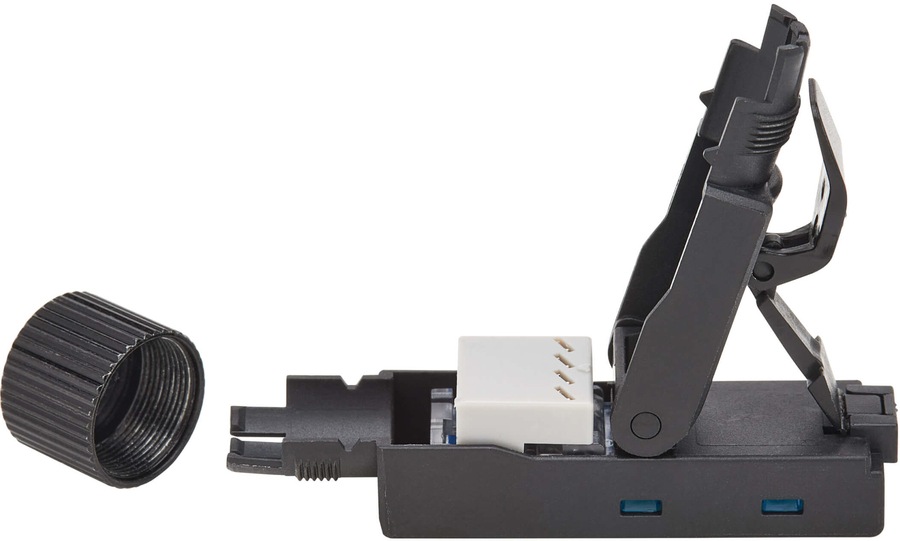

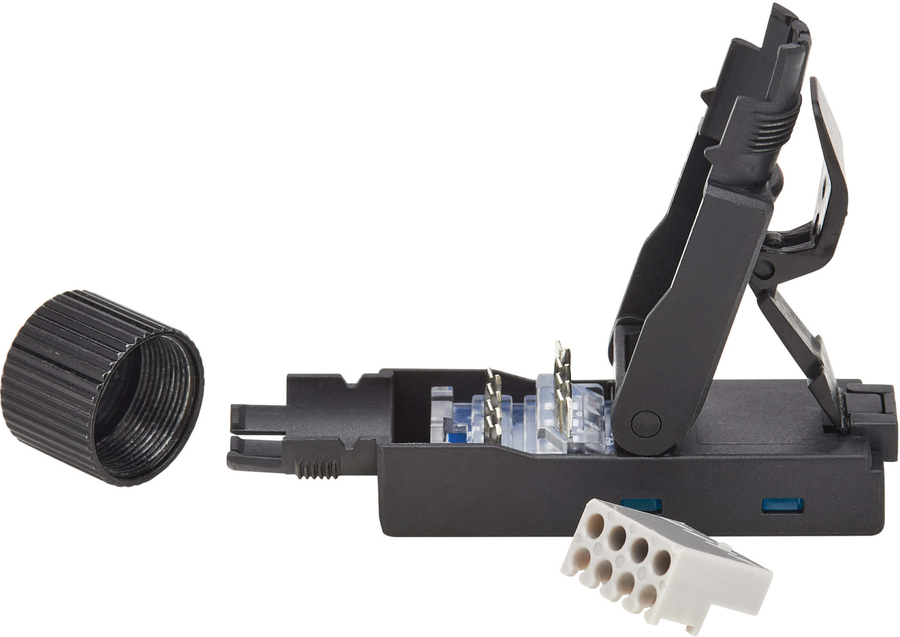

This Cat6a RJ45 plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cables must be plenum rated. The clamshell design allows a Cat6a cable to be terminated to the N232-USC6A-1, which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device, such as a WAP (Wireless Access Point) or surveillance camera.
Supports PoE++ Applications with up to 100W of Power
Connect high-power PoE devices such as video conferencing devices, laptops and flat screens, building management devices and more. The UL-compliant N232-USC6A-1 is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts.
Assembles Easily with No Special Tools Required
The N232-USC6A-1 is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 23–27 AWG solid or stranded cabling and 5.5–8.5 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N232-USC6A-1 can be re-terminated as many as 20 times.
A Must-Have for Modern Data Centers

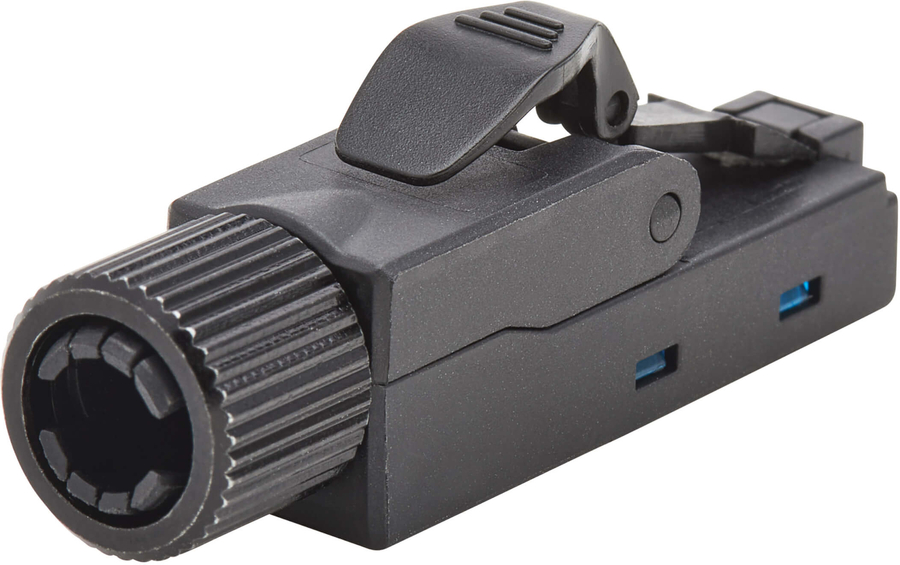

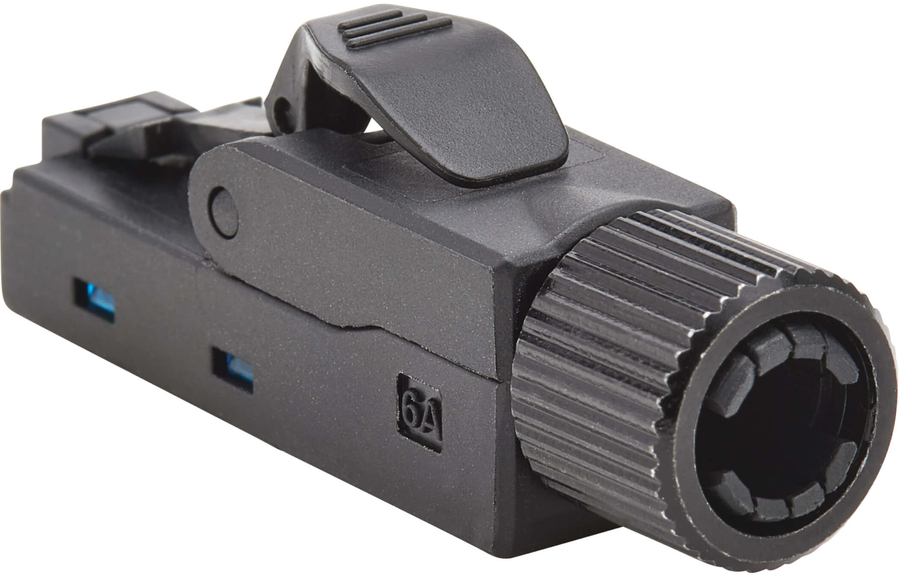

The glass-reinforced nylon construction ensures your connection is built to last. The IDC module can be installed and uninstalled up to five times. A locking cylinder screws into place to ensure the installed cable remains secured.
TAA-Compliant for GSA Schedule Purchases
The N232-USC6A-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
|
Features |
|
Connector(s) |
RJ45 |
|
Product colour |
Black |
|
Connector gender |
Male |
|
Connector form factor |
Straight |
|
Material |
Nylon |
|
Cable standard |
Cat6a |
|
Cable shielding |
U/UTP (UTP) |
|
Connector contacts plating |
Gold |
|
International Protection (IP) code |
IP20 |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
