StarTech 2-Port Serial PCIe Card
|
|
Price: $122.00
Manufacturer:
StarTech

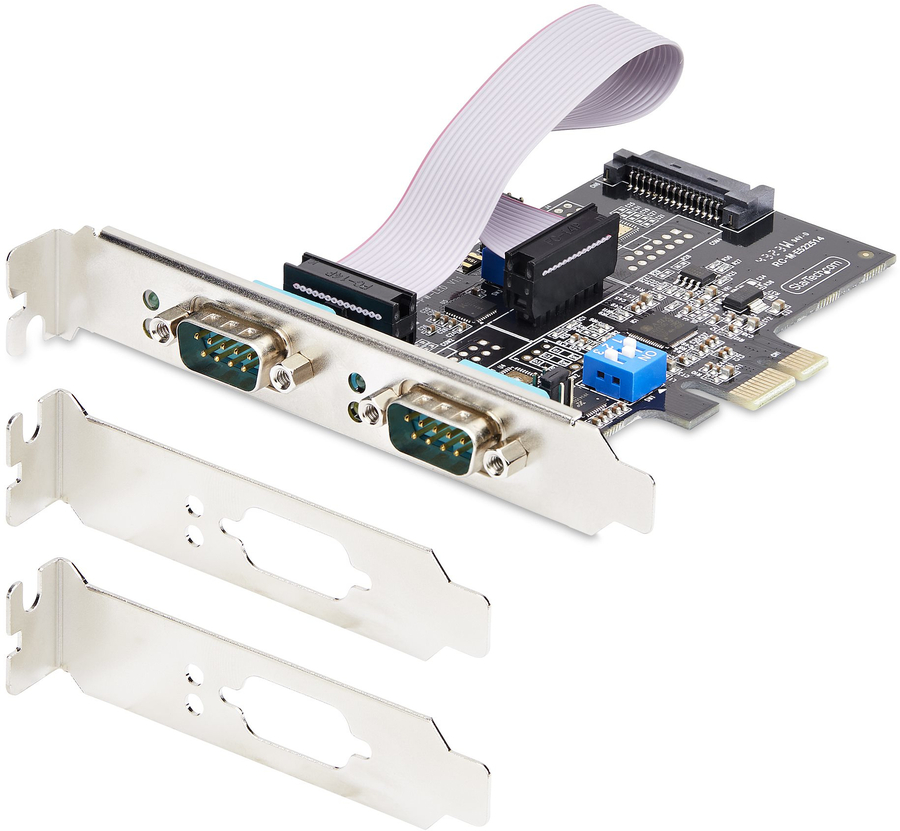

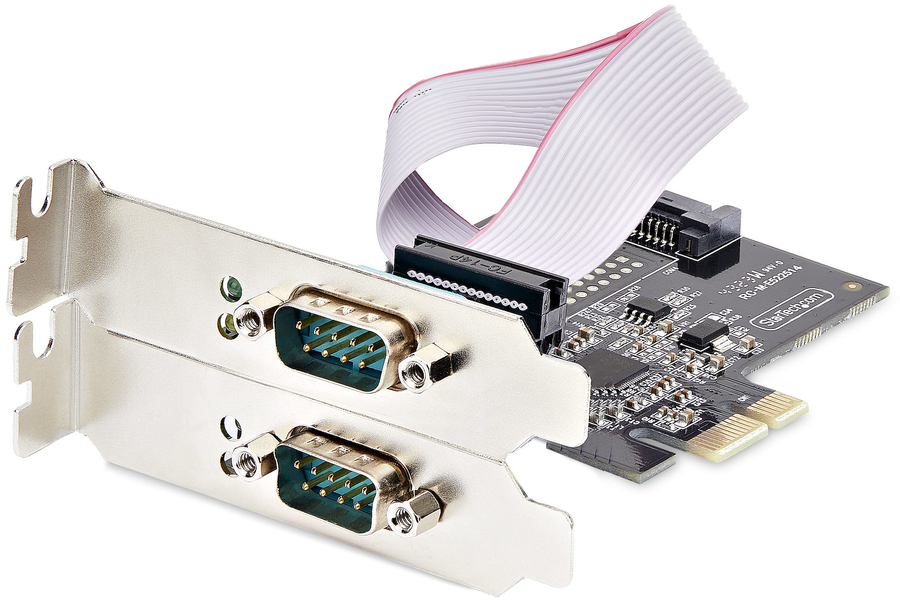

StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (2S232422485-PC-CARD)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59593795
|
2S232422485-PC-CARD
|
65030900270 |
Active
|
Details
|
General Information |
|
Summary |

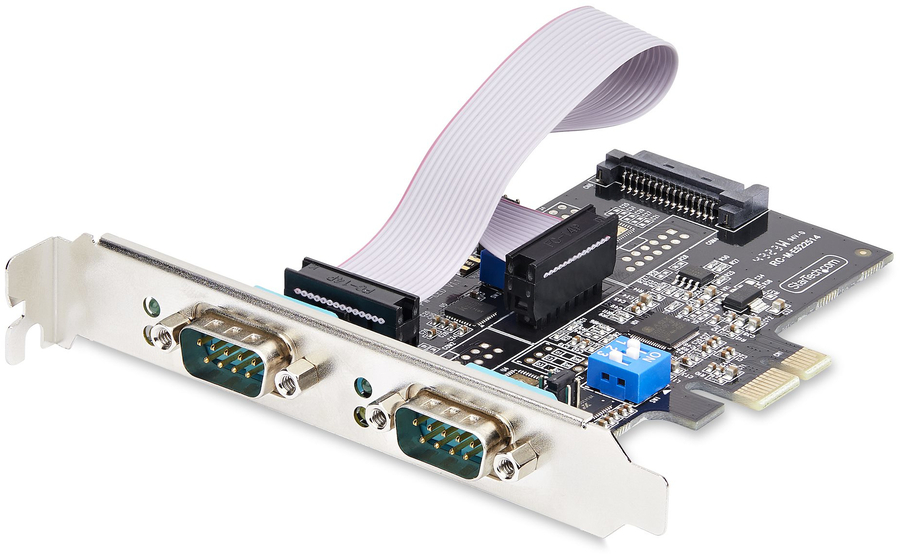

Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card
Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration

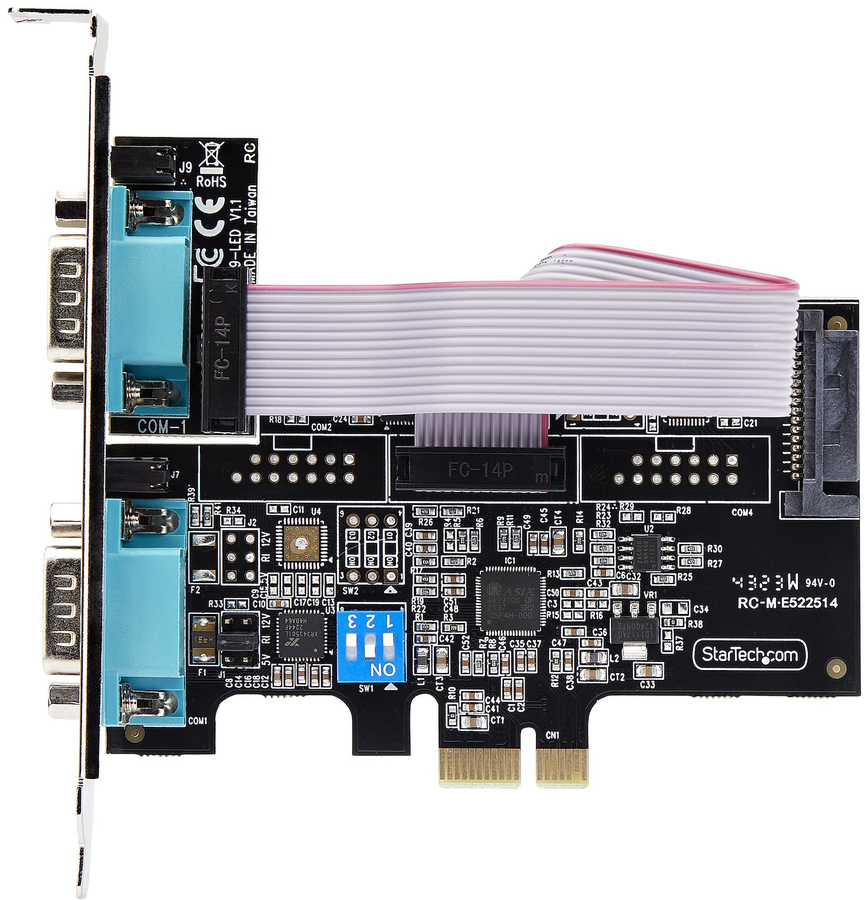

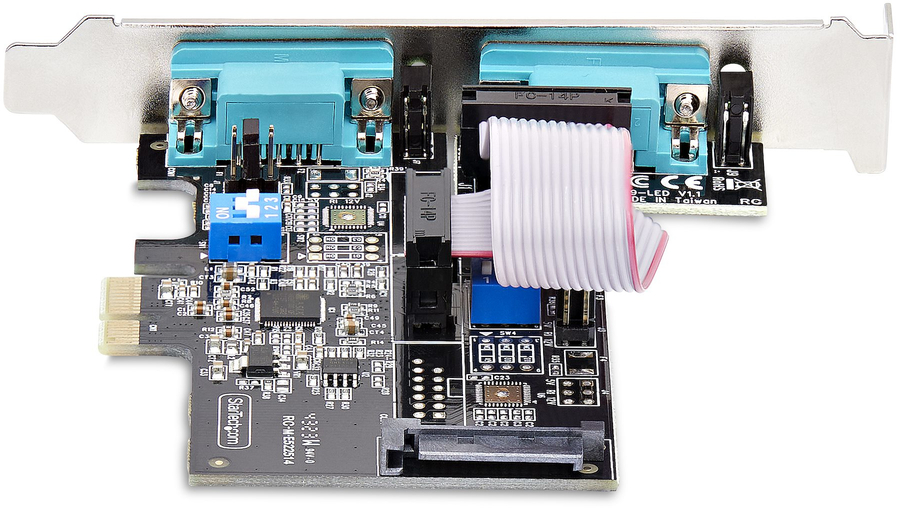

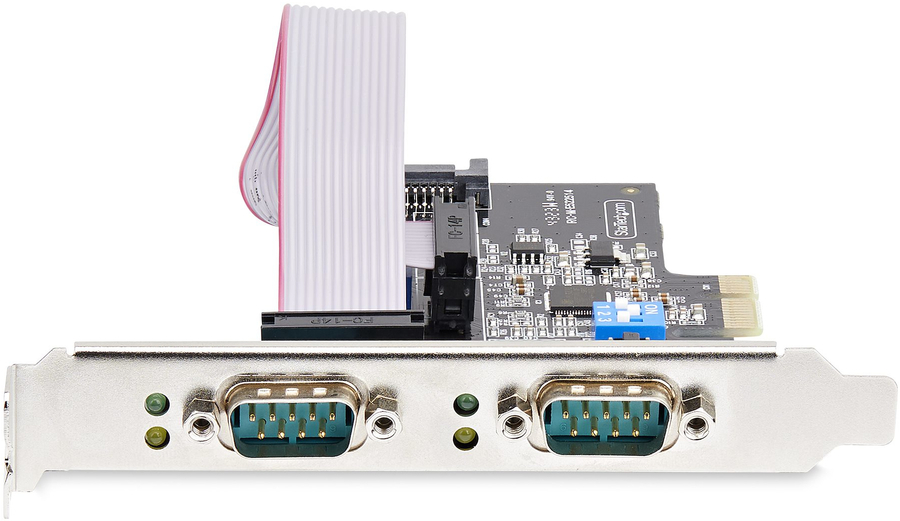

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

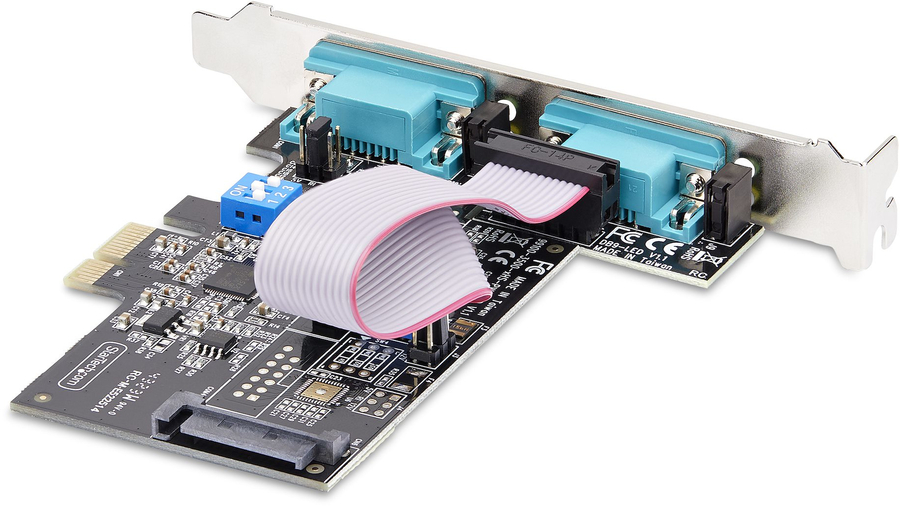

Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
Serial |
|
Expansion card standard |
PCIe 2.0 |
|
Serial ports quantity |
2 |
|
Serial interface type |
RS-232/422/485 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Black |
|
Features |
|
Chipset |
ASIX - AX99100 |
|
Baud rate |
921.6 Kbit/s |
|
FIFO (First In, First Out) |
256 B |
|
Data bits |
5, 6, 7, 8, 9 |
|
Stop bits |
1, 1.5, 2 |
|
Flow control support |
Yes |
|
Parity bit |
Even, Mark, No, Odd, Space |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
System requirements |
|
Windows operating systems supported |
Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2016, Windows Server 2019, Windows Server 2022 |
|
Technical details |
|
Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
|
Sustainability compliance |
Yes |
|
Weight & dimensions |
|
Width |
102 mm |
|
Depth |
105 mm |
|
Height |
16 mm |
|
Weight |
57 g |
|
Packaging data |
|
Cables included |
Ribbon cable |
|
Mounting brackets included |
Yes |
|
Quick installation guide |
Yes |
|
Package width |
142 mm |
|
Package depth |
170 mm |
|
Package height |
30 mm |
|
Package weight |
147.6 g |
|
Logistics data |
|
Products per master (outer) case |
75 pc(s) |
|
Master (outer) case width |
685 mm |
|
Master (outer) case length |
345 mm |
|
Master (outer) case height |
306 mm |
|
Other features |
|
Electrostatic Discharge (ESD) protection |
15 kV |
|
