General Information |
|
Summary |

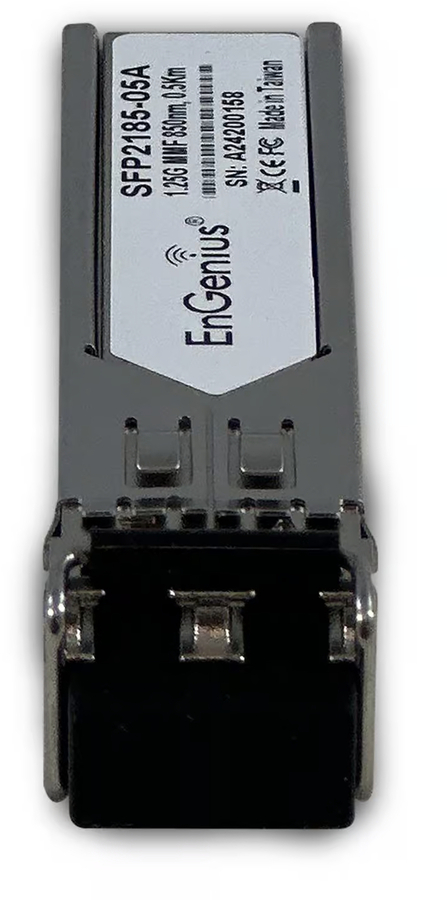

The EnGenius SFP2185-05A is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core. It can reach a distance of up to 500 meters if used with 50-micron fiber cables.
|
|
Performance |
|
SFP transceiver type |
Fiber optic |
|
Maximum data transfer rate |
1250 Mbit/s |
|
Interface type |
SFP+ |
|
Multi-mode fiber (MMF) supported |
Yes |
|
Fiber optic connector |
LC |
|
Maximum transfer distance |
20000 m |
|
Wavelength |
850 nm |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
1.25 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3az |
|
Features |
|
Product colour |
Grey |
|
Hot-swap |
Yes |
|
Power |
|
Input voltage |
3.15 - 3.45 V |
|
Maximum voltage |
3.45 V |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
14.7 mm |
|
Depth |
55.9 mm |
|
Height |
12.4 mm |
|
Weight |
25 g |
