General Information |
|
Summary |

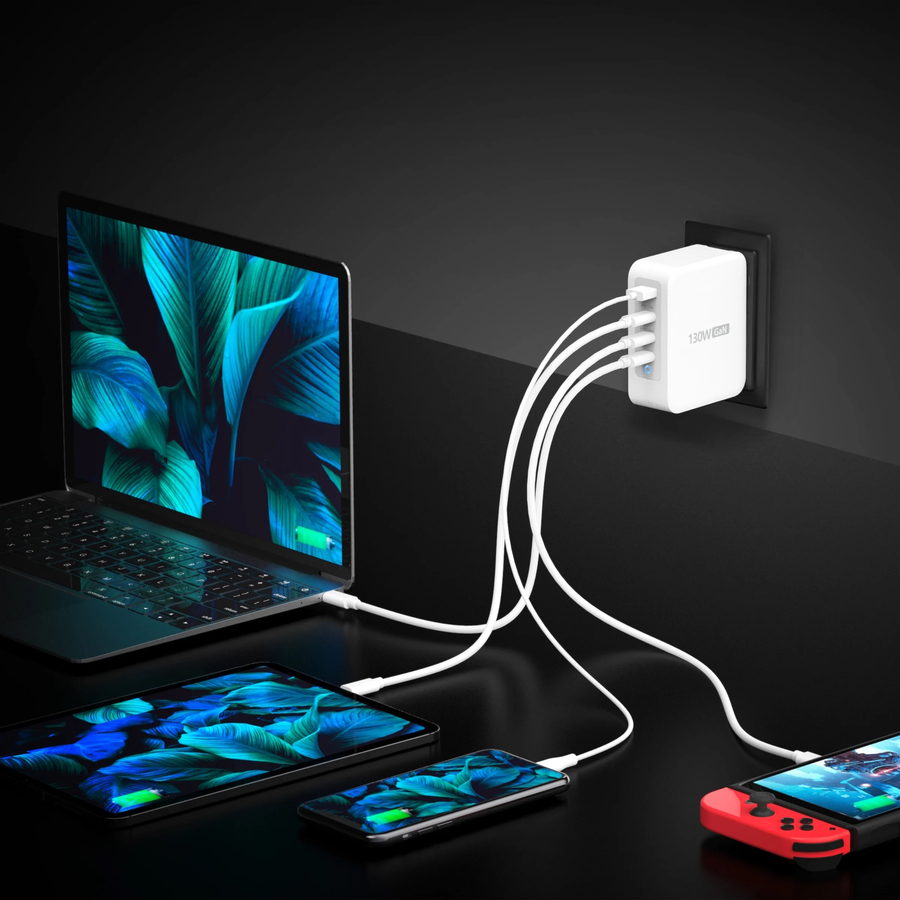

Charge three USB-C® devices and a USB™ Type-A device simultaneously with the 130W 4-Port PD USB-C® Super Charger. The charger uses GaN technology allowing the charger to provide a lot of power in a compact size. The USB-C® ports are equipped with Power Delivery 3.0/2.0 technology allowing you to charge your phones, tablets, or laptops at the fastest speeds possible. The charger also comes with surge, overcharging, overcurrent, and overheating protection for keeping your devices safe. Its superior charging capabilities, wide compatibility, and small design make it great for replacing the original charger that comes with a variety of mobile devices. |
|
Performance |
|
Charger type |
Indoor |
|
Charger compatibility |
Mobile computer, Mobile phone, Portable gaming console, Smartphone, Smartwatch, Tablet |
|
Power source type |
USB |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
USB Type-C ports quantity |
3 |
|
Compatibility |
Smartphones:
iPhone® 13, 13 mini, 13 pro, 13 pro max, 12 mini, 12, 12 Pro, 12 Pro Max, 11, 11 Pro, 11 Pro Max, XS Max, XR, XS, X, 8, 8 Plus
Samsung® Galaxy™ Note10, Note10+, Note9, Note8, S22 Ultra, S22+, S22, S21 FE, S21 Ultra, S21, S20 FE, S20 Ultra, S20, S10, S10+, S10 Lite, S10 5G, S10e, S9+, S9, S8, S8+
Pixel™ 4, 4a, 4XL, 5, 5a, 6, 6a, 6 Pro
Sony® Xperia® XZ3
LG™ G8 ThinQ™, LG™ 7
Tablets:
iPad Air® 10.5'", iPad Pro® 11''/12.9"
Samsung® Galaxy™ Tab S8 Ultra, S8+, S8, S7 FE, S7+, S7, S6 Lite, S6, S5e, S4
Google Pixel™ tablets
Consoles:
Nintendo Switch™
Nintendo Switch™ Lite
Stream Deck™
*Not compatible with the Nintendo Switch™ dock.
Laptops:
MacBook Air® 13'', MacBook® 12'', MacBook Pro® 13'', MacBook Pro® 15", MacBook Pro® 16", M1 MacBook® computers
Microsoft® Surface™ computers with power delivery
Dell™ XPS™ 13, XPS™ 15, Inspiron™ 13, Inspiron™ 7000, Dell™ Vostro™ 5471
HP® Elite X2, EliteBook X360, Spectre® 13, Spectre® 15, Spectre® 360, Spectre® folio 13-ak0000tu, Chromebook™ computers
Lenovo™ ThinkPad® X1, Yoga™
*Note: Compatibility is not limited to just the device listed |
|
Design |
|
Product colour |
Grey, White |
|
Housing material |
Plastic |
|
Weight & dimensions |
|
Width |
69 mm |
|
Depth |
32 mm |
|
Height |
87 mm |
|
Weight |
295 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 30 °C |
|
Logistics data |
|
Country of origin |
Taiwan |
|
Other features |
|
Packaging content |
1 - 130W GaN USB-C® 4-Port Charger
1 - Quick Installation Guide (QIG) |
|
Technical features |
The first and the second USB-C® port provide up to 100W of power when used independently.
The first and the second USB-C® port provide up to 65W of power when both ports are used. 【Dynamic Power Control of full load in 30mins : PD90W(PD45W+PD45W)】
The third USB-C® port provides up to 20W of power when used independently.
The USB™ Type-A port provides up to 18W of power when used independently.
The third USB-C® and USB™ Type-A port provide up to 20W (5V/2A+5V/2A) of power when used both ports. |
|
