General Information |
|
Summary |

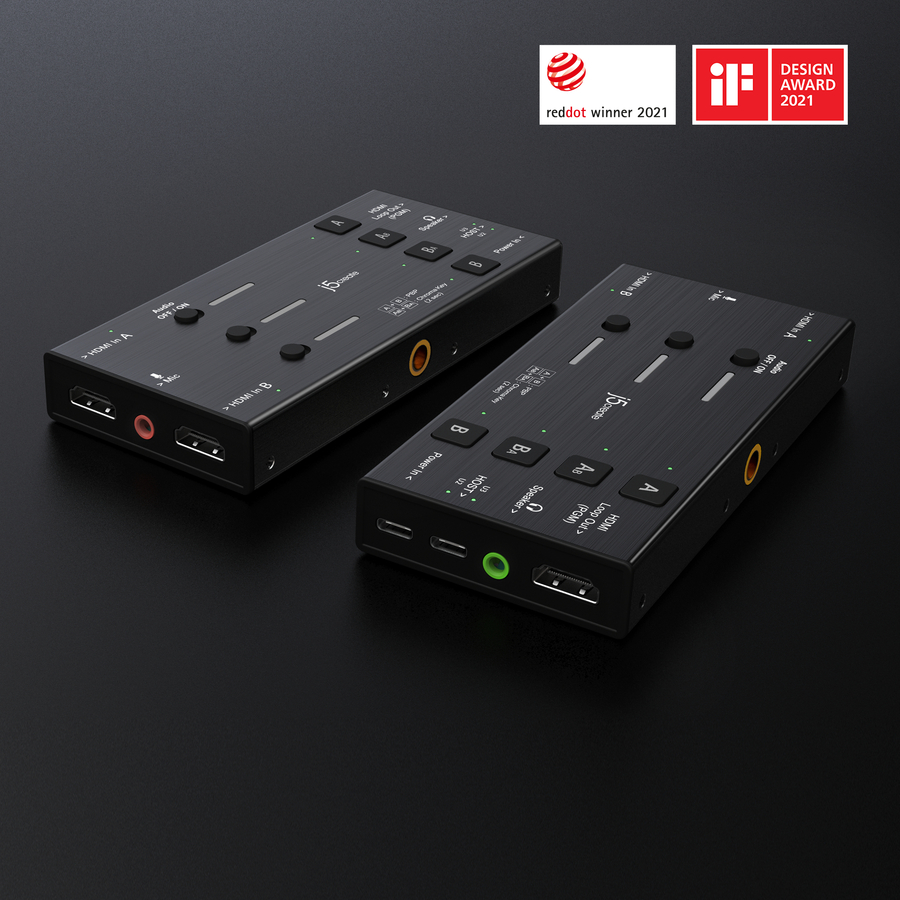

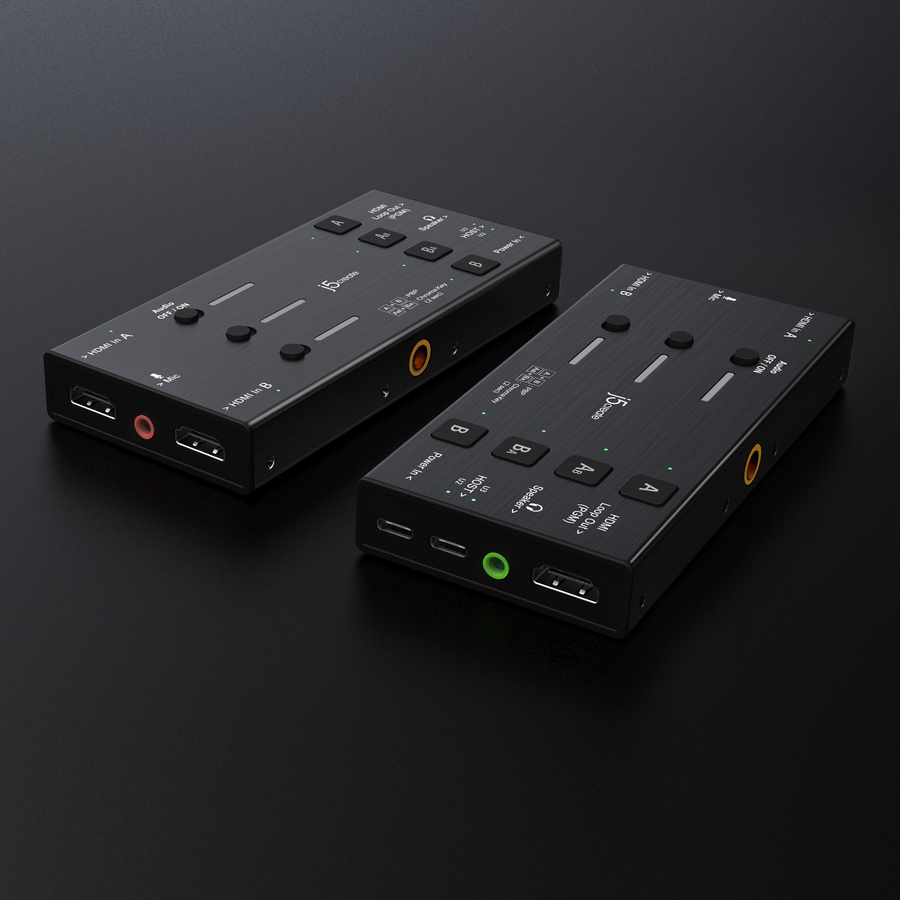

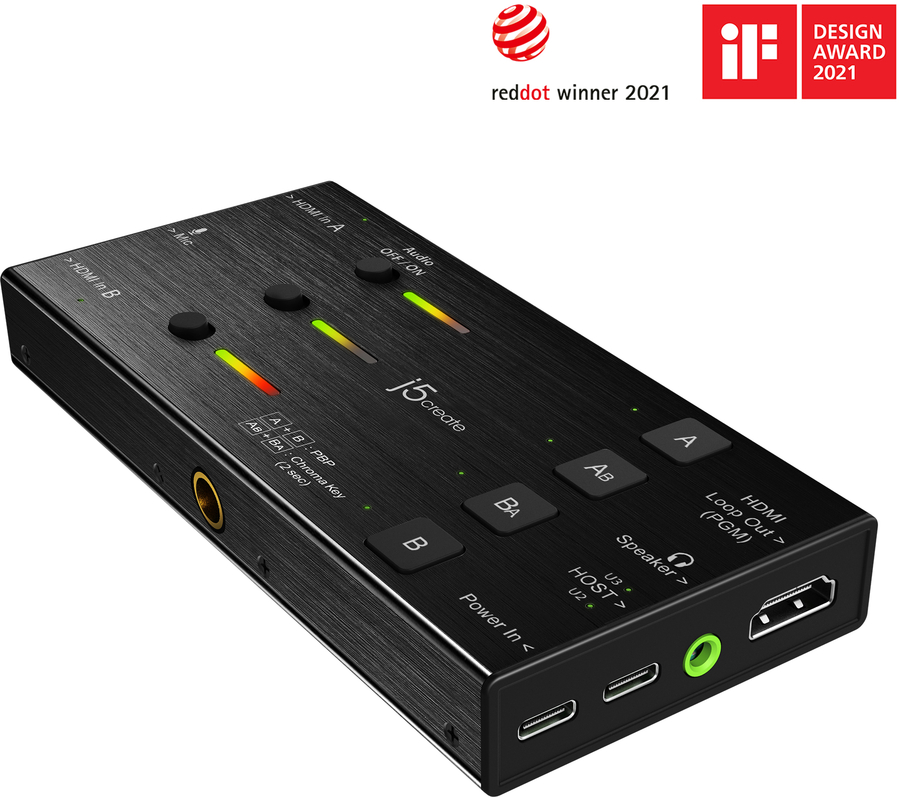

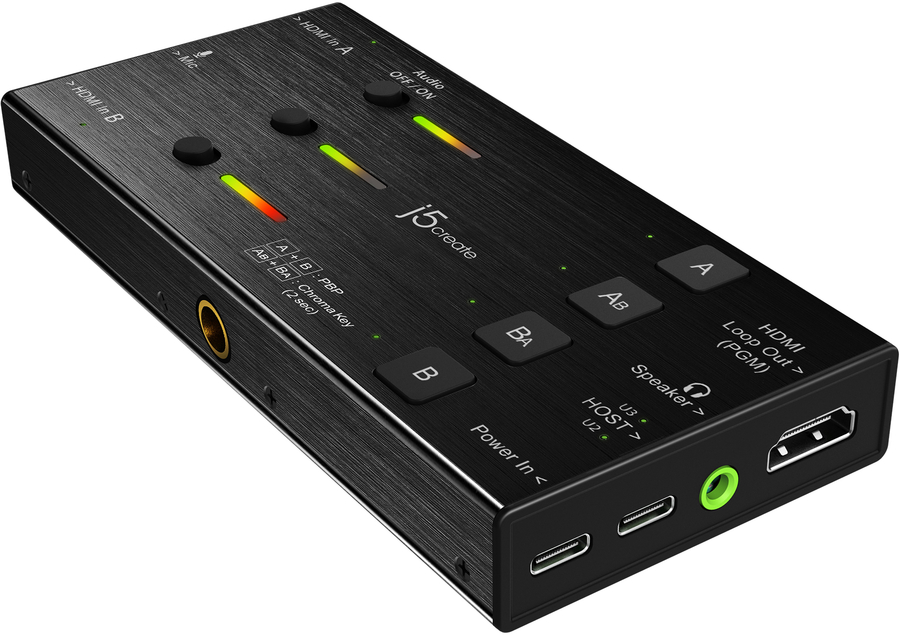

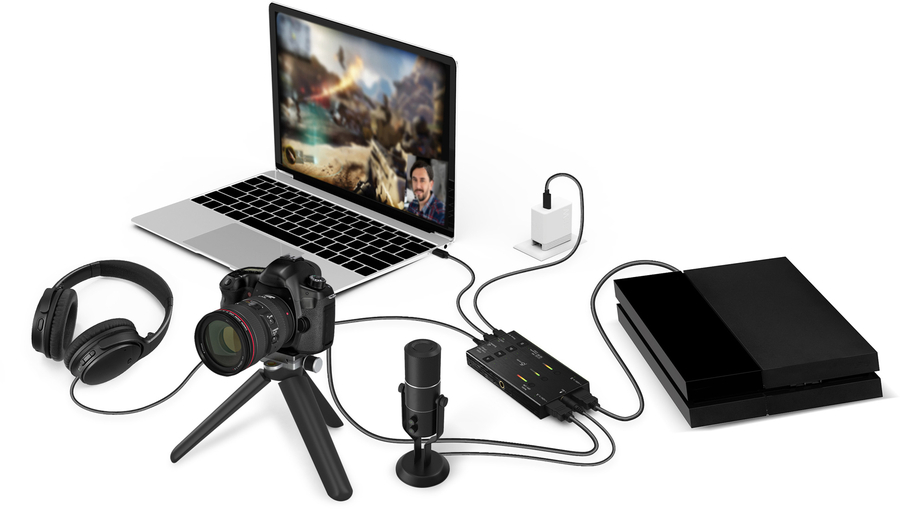

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.
With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

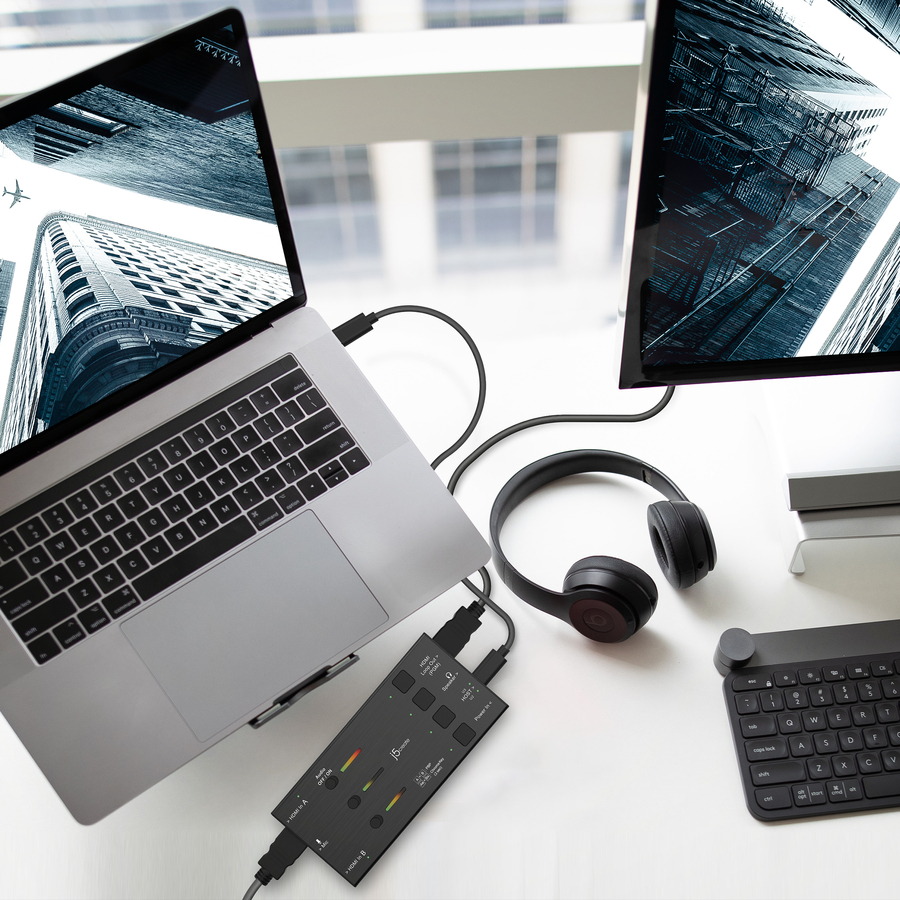

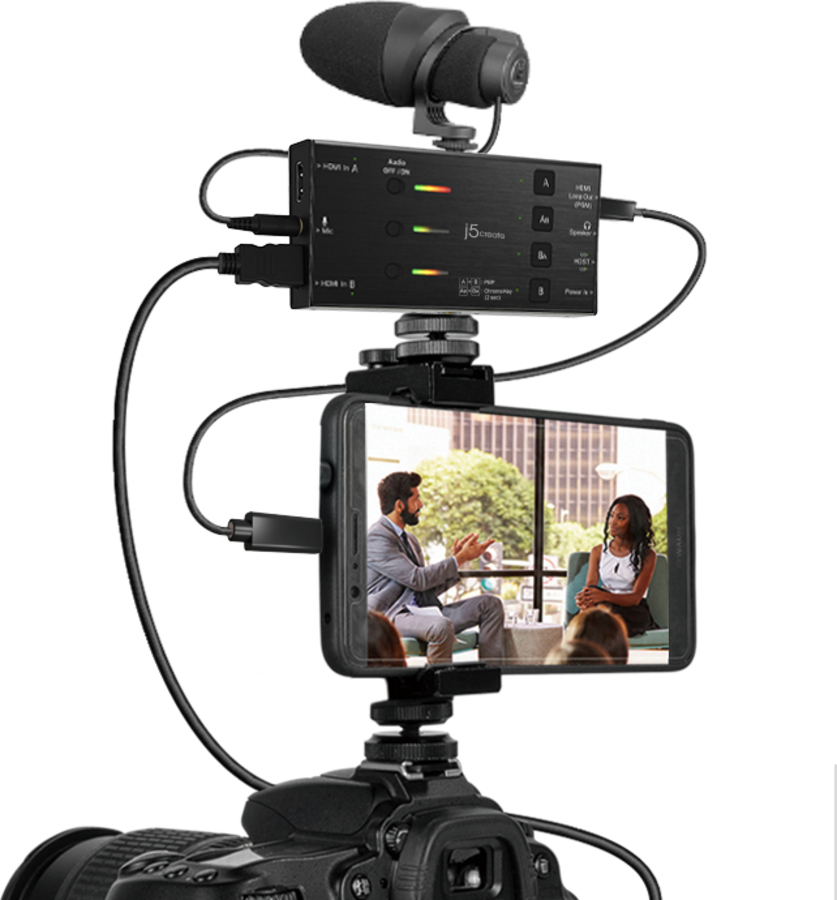

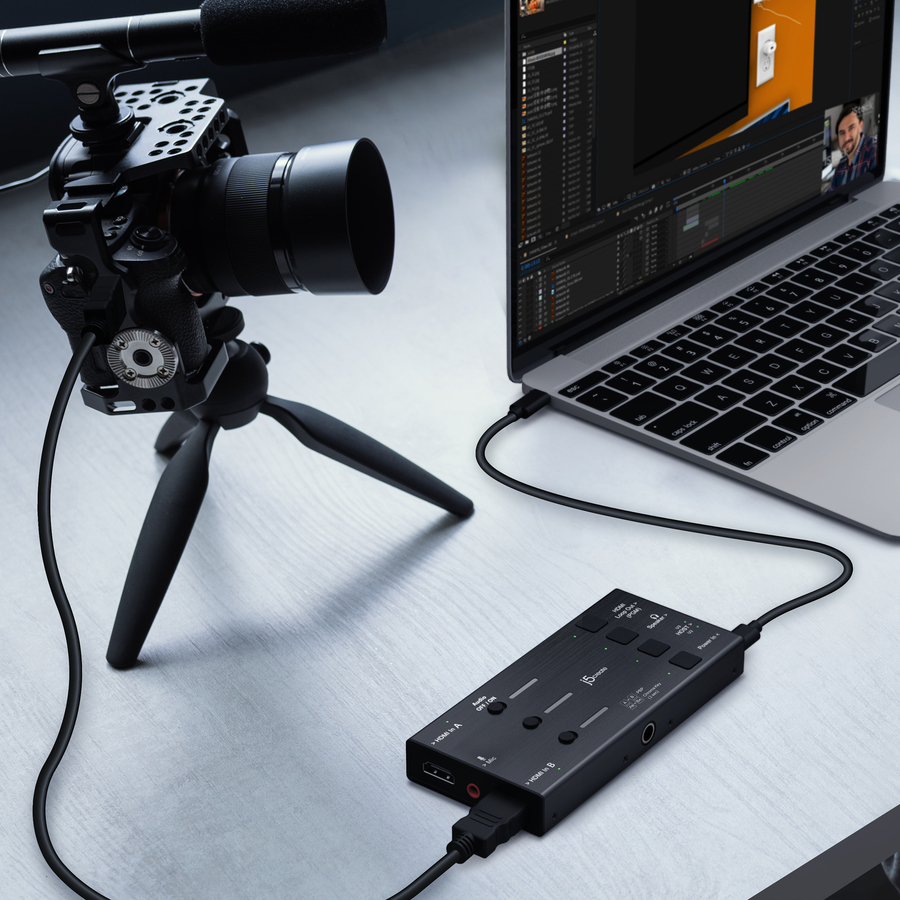

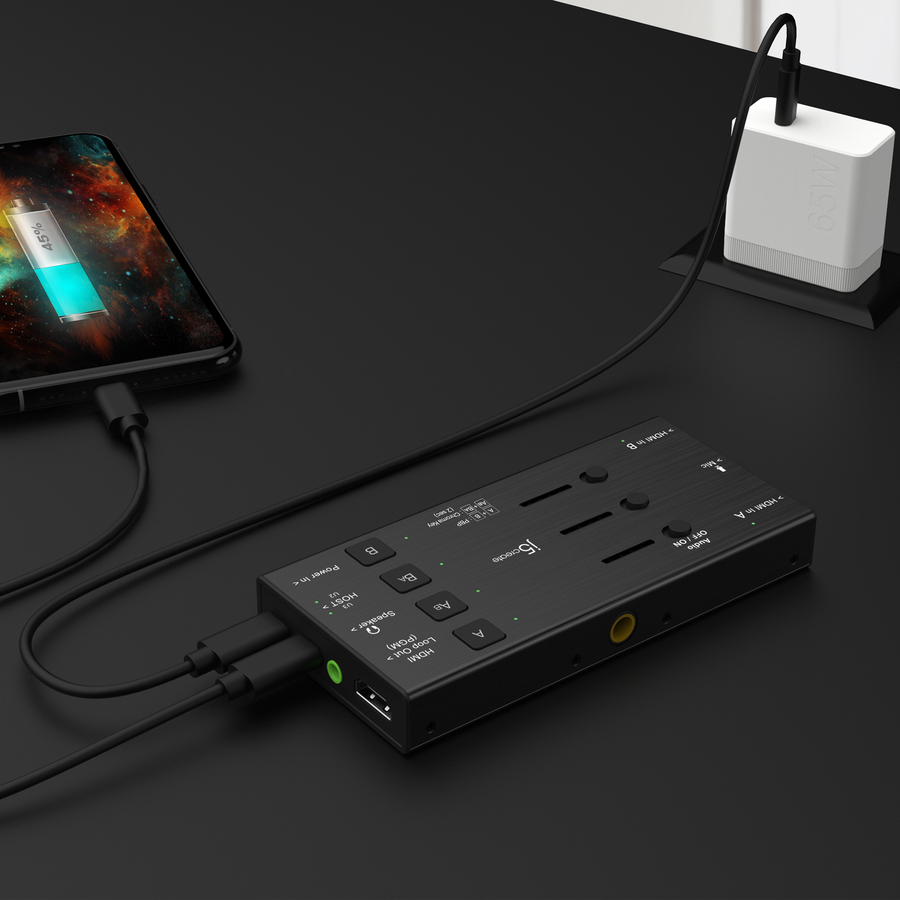

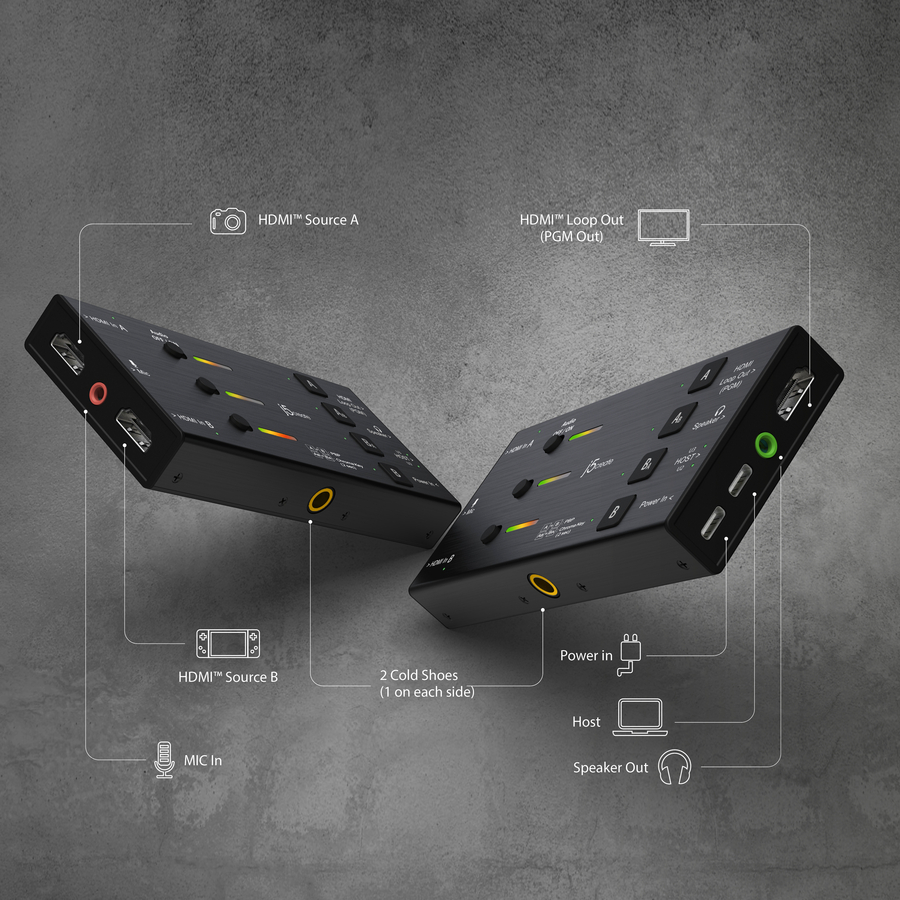

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time. |
|
Performance |
|
Product colour |
Black |
|
Internal |
No |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) |
|
Video capture resolution (max) |
1920 x 1080 pixels |
|
LED indicators |
USB |
|
Capturing from |
Digital camera, Game console, PC |
|
Supported aspect ratios |
16:9 |
|
Housing material |
Aluminium |
|
Cable length |
0.6 m |
|
Country of origin |
Taiwan |
|
Video |
|
Analog signal format system |
Not supported |
|
Supported resolutions |
640 x 480
720 x 480
720 x 576
800 x 600
1280 x 720
1024 x 768
1360 x 768
1280 x 800
1152 x 864
1440 x 900
1280 x 1024
1400 x 1050
1680 x 1050
1600 x 1200
1920 x 1080 |
|
Maximum frame rate |
60 fps |
|
Supported video modes |
1080p |
|
Audio |
|
Supported audio channels |
2 |
|

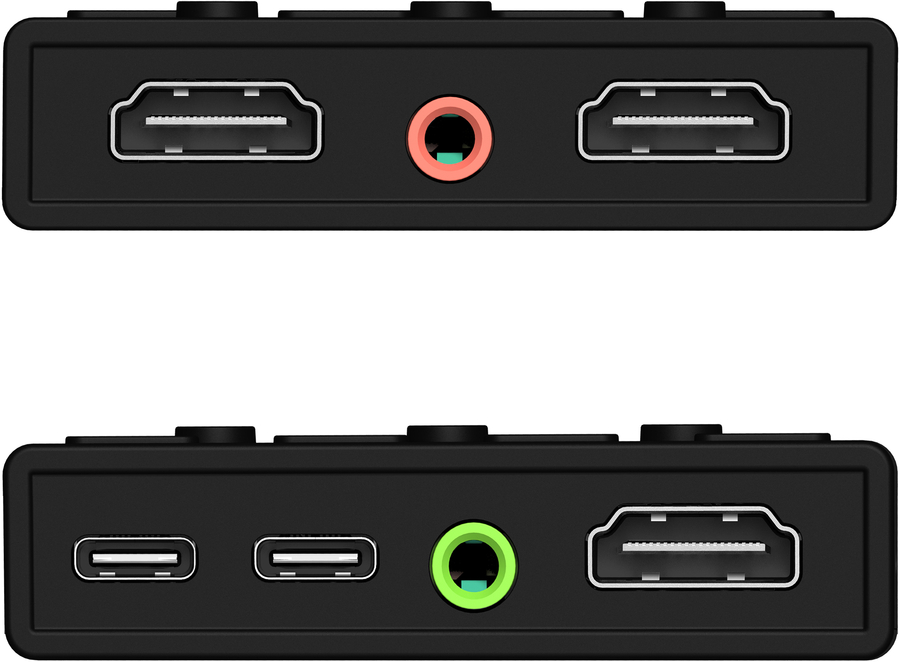

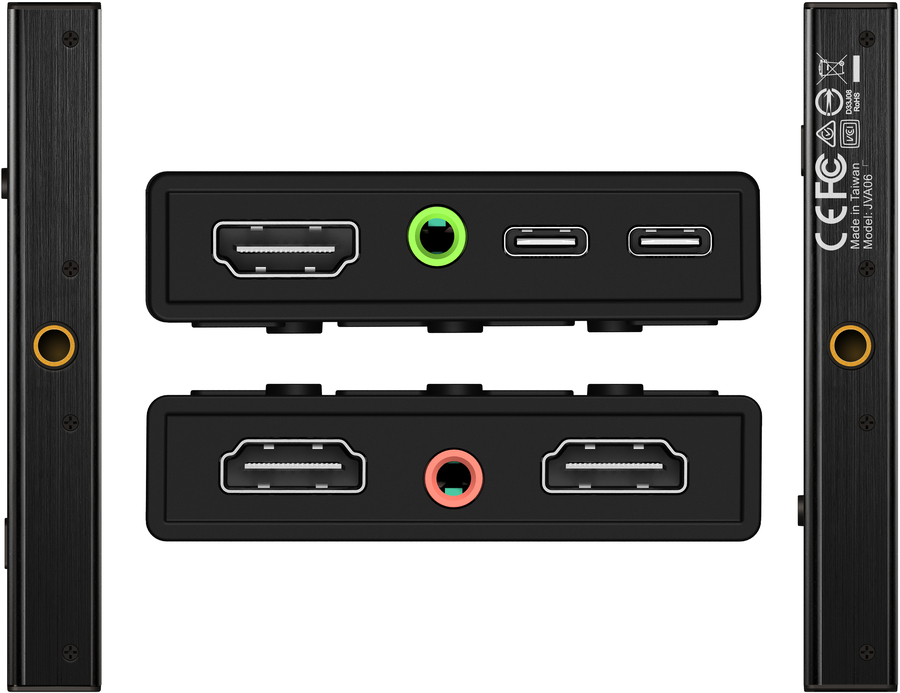

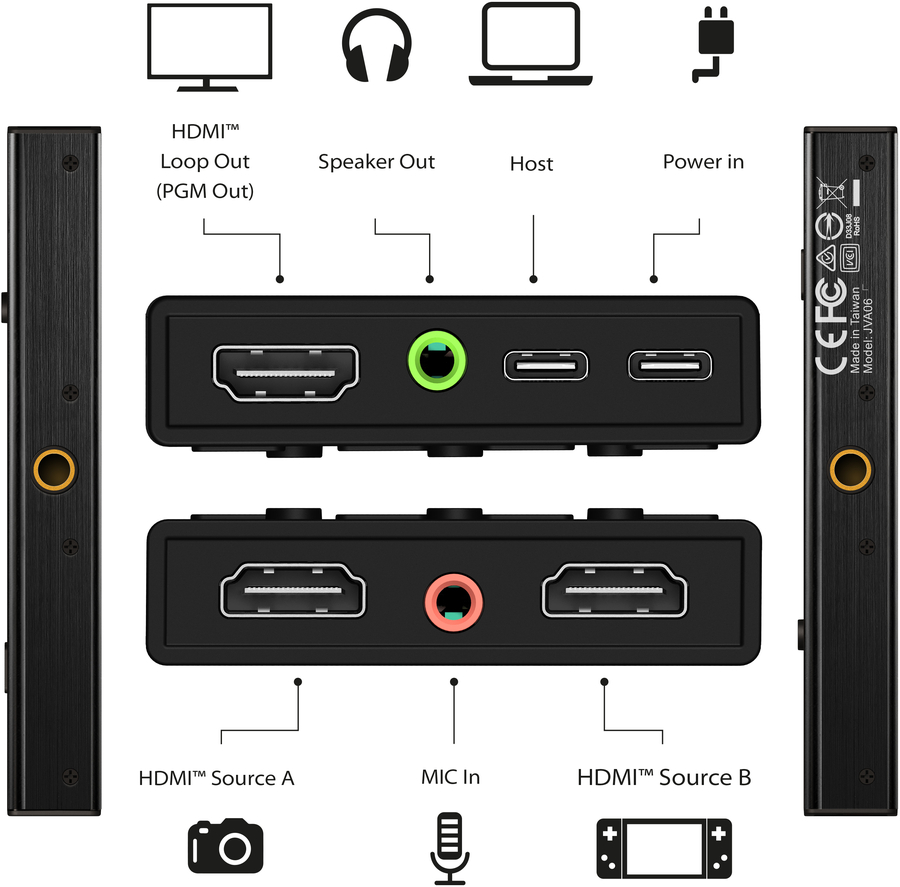

Ports & interfaces |
|
USB port |
Yes |
|
USB connector type |
USB Type-A, USB Type-C |
|
USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
|
USB ports quantity |
2 |
|
HDMI ports quantity |
3 |
|
HDMI in |
2 |
|
Number of HDMI outputs |
1 |
|
Power |
|
Power supply type |
USB |
|
Output voltage |
20 V |
|
Output current |
0.9 A |
|
Software |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Yes |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
|
Linux operating systems supported |
Yes |
|
Bundled software |
Recommended software: OBS™ |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 65 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage relative humidity (H-H) |
0 - 85% |
|
Technical details |
|
Warranty period |
2 year(s) |
|
Weight & dimensions |
|
Width |
134.6 mm |
|
Depth |
63.7 mm |
|
Height |
18.4 mm |
|
Weight |
175 g |
|
Packaging data |
|
Package weight |
415 g |
|
Package height |
70 mm |
|
Package width |
155 mm |
|
Package depth |
95 mm |
|
Package type |
Box |
|
Packaging content |
|
Cables included |
HDMI, USB Type-C, USB Type-C to USB Type-A |
|
Quick installation guide |
Yes |
|
Manual |
Yes |
|
Quantity |
1 |
|
Packaging content |
1 x JVA06 Dual HDMI™ Video Capture, 1 x Quick Installation Guide, 1 x USBxC™ 2.0 to USBxC™ cable, 1 x USBxC™ 3.0 to USB™ TypexA cable, 1 x 39.4 in./100 cm HDMI™ cable |
