General Information |
|
Summary |

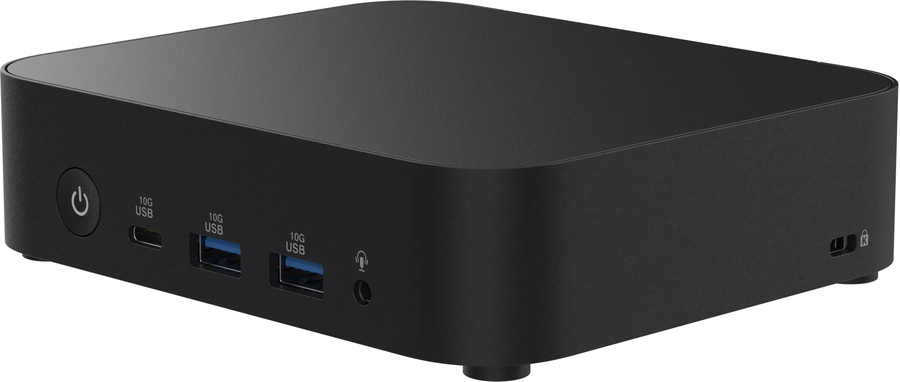

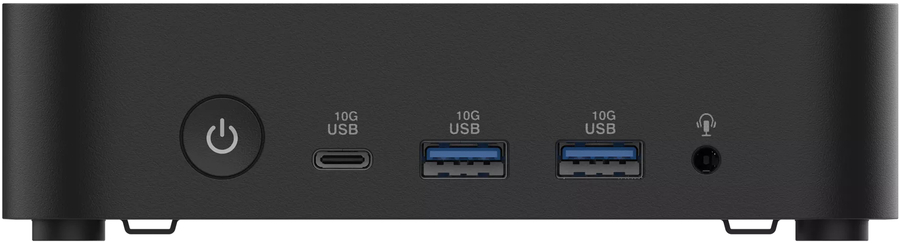

ASUS NUC 14 Essential
Efficient Performance. Smart Savings.
ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications. |
|
Processor |
|
Built-in processor |
Yes |
|
Processor manufacturer |
Intel |
|
Processor family |
Intel Core 3 |
|
Processor model |
N355 |
|
Processor cores |
8 |
|
Processor threads |
8 |
|
Processor boost frequency |
3.9 GHz |
|
Processor cache |
6 MB |
|
Processor cache type |
Smart Cache |
|
Memory |
|
Memory slots type |
SO-DIMM |
|
Number of memory slots |
1 |
|
Maximum internal memory |
16 GB |
|
Supported memory clock speeds |
4800 MHz |
|
Supported memory types |
DDR5-SDRAM |
|
Storage |
|
Supported storage drive types |
SSD |
|
Storage drive sizes supported |
M.2 |
|
Maximum storage capacity |
2 TB |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card family |
Intel |
|
On-board graphics card model |
Intel Graphics |
|
Number of displays supported |
3 |
|
Audio |
|
Built-in speaker(s) |
No |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|

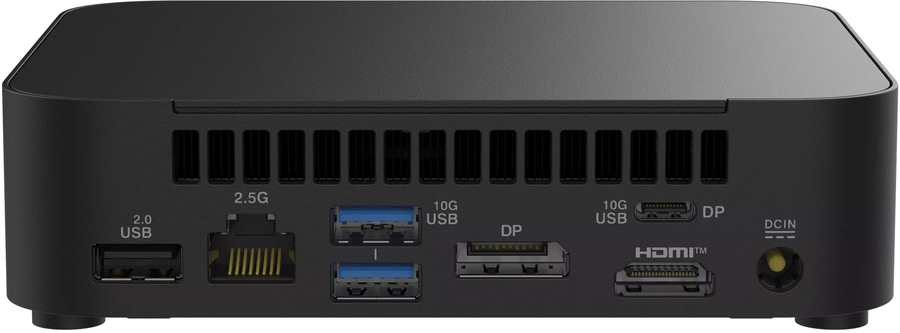

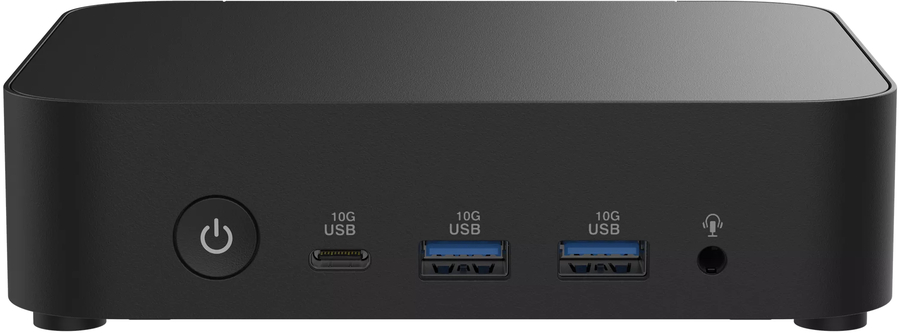

Ports & interfaces |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
Product type |
Mini PC barebone |
|
On/off switch |
Yes |
|

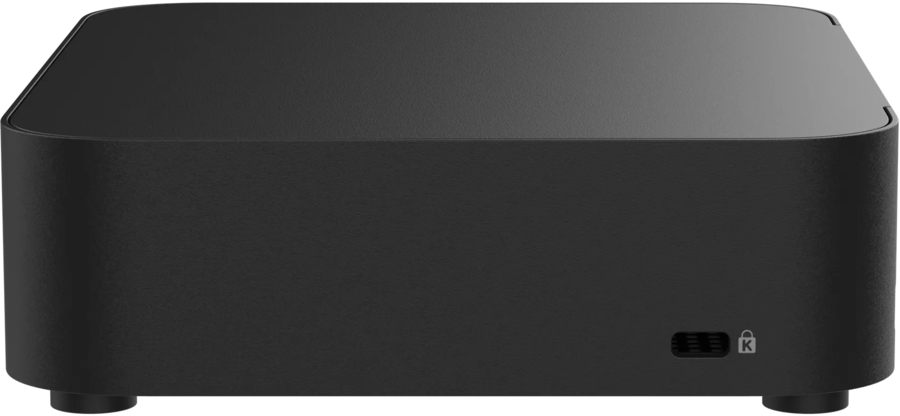

Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Audio chip |
Realtek ALC3251 |
|
Software |
|
Windows operating systems supported |
Windows 11 |
|
Linux operating systems supported |
Yes |
|
Operating system installed |
No |
|
Power |
|
Power supply type |
External AC adapter |
|
Power supply |
65 W |
|
AC adapter output voltage |
19 V |
|
AC adapter output current |
3.42 A |
|
Weight & dimensions |
|
Width |
135 mm |
|
Depth |
115 mm |
|
Height |
36 mm |
|
Weight |
470 g |
