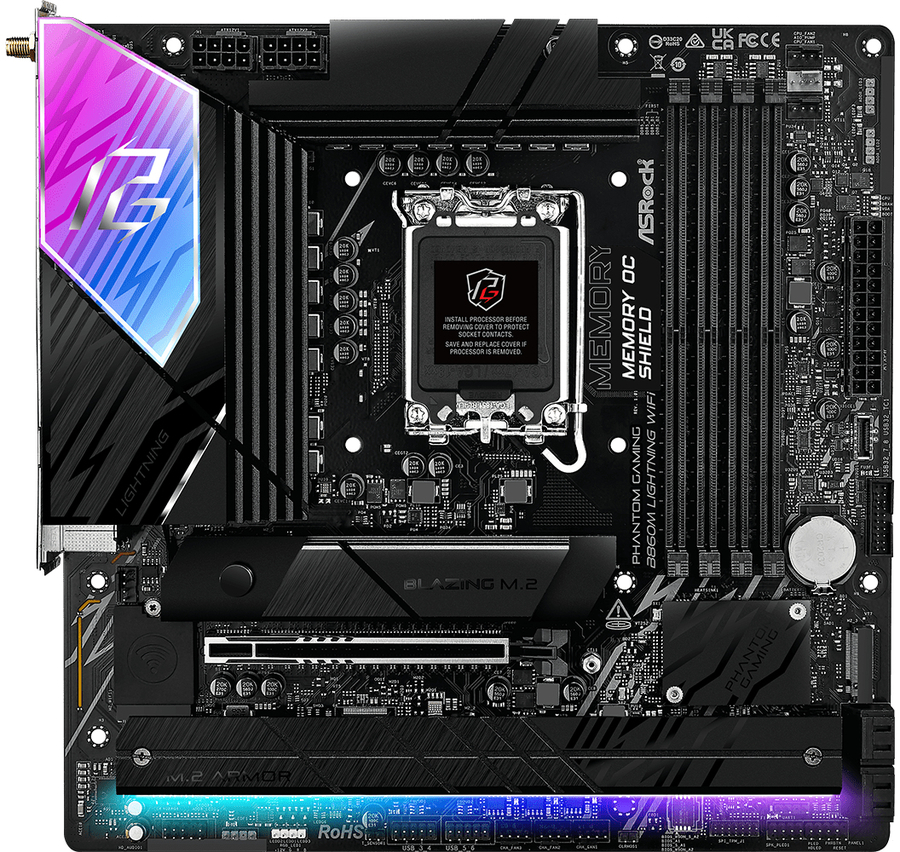

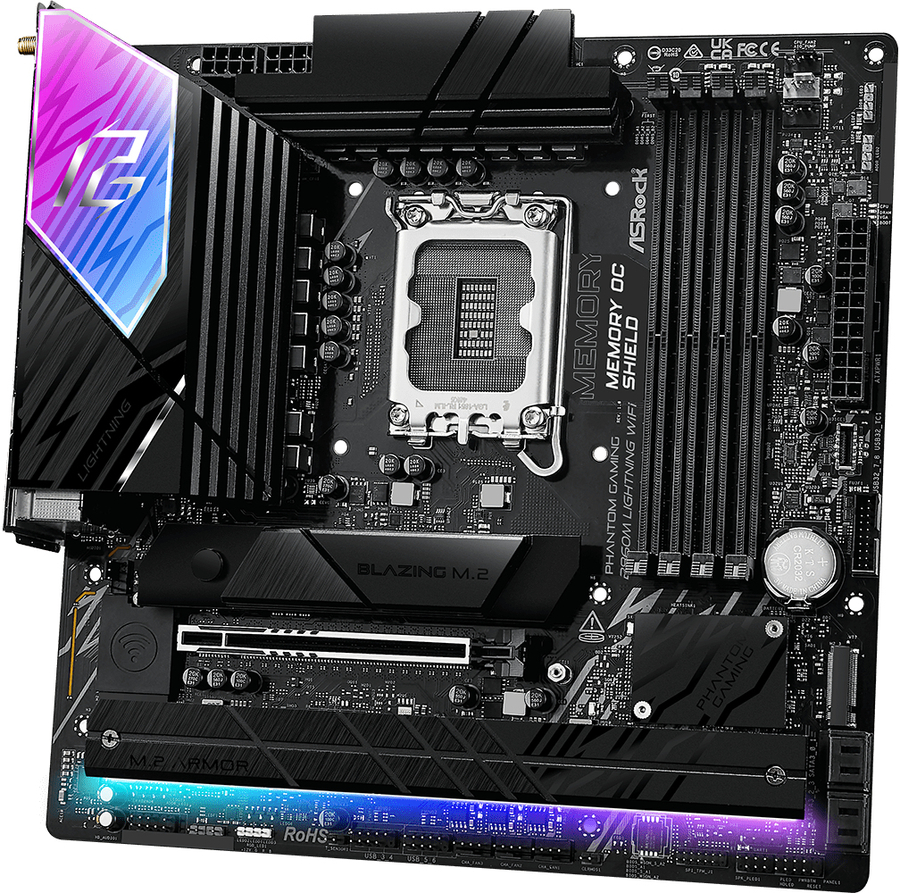

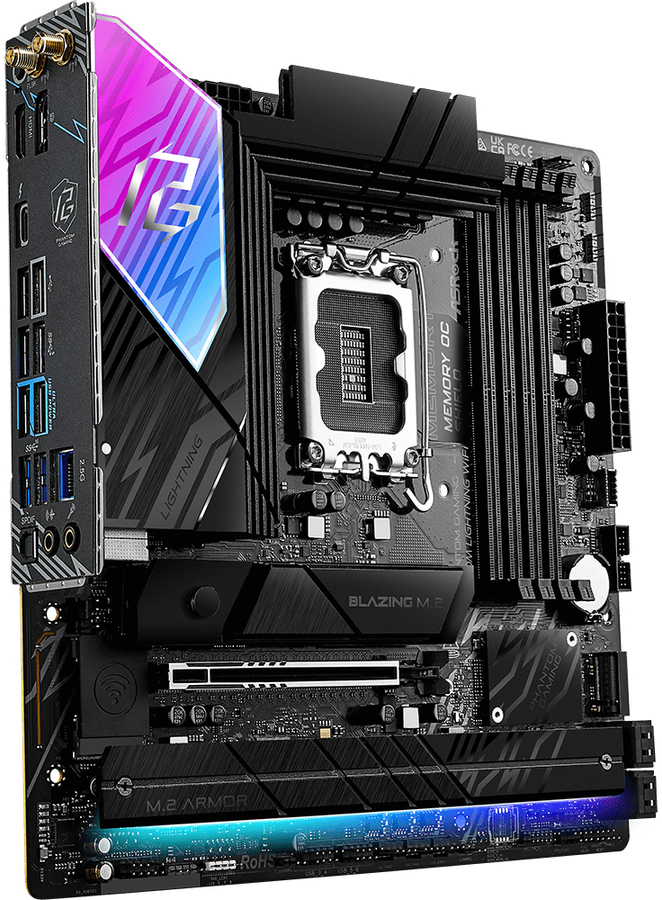

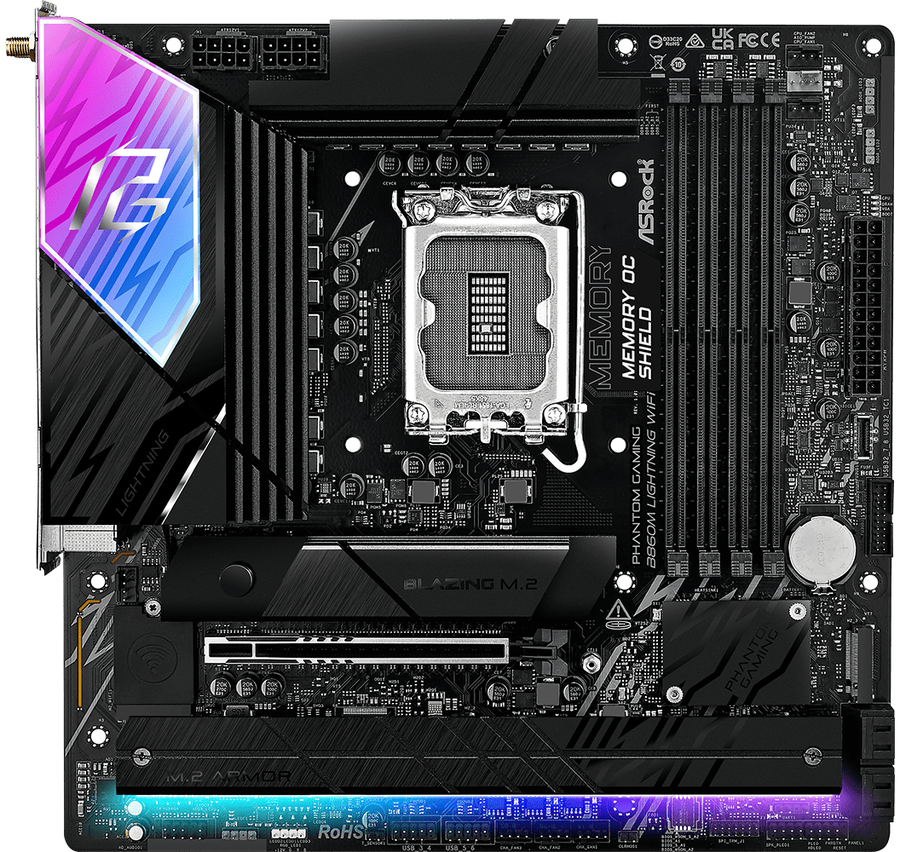

ASRock B860M LIGHTNING WIFI S1851 mATX Mainboard
|
|
Price: $254.00
Manufacturer:
ASRock
LGA1851, Intel B860, 4 x DDR5 DIMM, 256Mb AMI UEFI, 7.1 CH HD Audio, 2.5 Gigabit LAN, IEEE 802.11a/b/g/n/ac/ax/axe, Bluetooth 5.3, Micro ATX
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59896408
|
B860M LIGHTNING WIFI
|
- |
Active
|
Details
|
General Information |
|
Summary |
Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Memory OC Shield
ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
M.2 Heatsink Toolless Design
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Thunderbolt™ 4 Type-C
Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Ultra USB Power
Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Customized Thermal Management
The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1851 (Socket V1) |
|
Compatible processor series |
Intel Core Ultra (Series 2) |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
256 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Supported memory clock speed (max) |
8666 MHz |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card |
Yes |
|
HDCP |
Yes |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of CPU fan connectors |
2 |
|
Number of chassis fan connectors |
4 |
|
TPM connector |
Yes |
|
RGB LED pin header |
Yes |
|

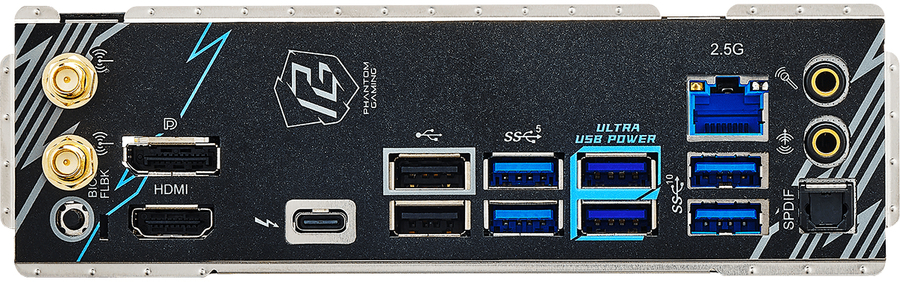

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Microphone in |
Yes |
|
S/PDIF out port |
Yes |
|
Thunderbolt ports quantity |
1 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
LAN controller |
Killer E3100G |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel B860 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC1220 |
|
Product colour |
Black |
|
Windows operating systems supported |
Windows 11 x64 |
|
Expansion slots |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|

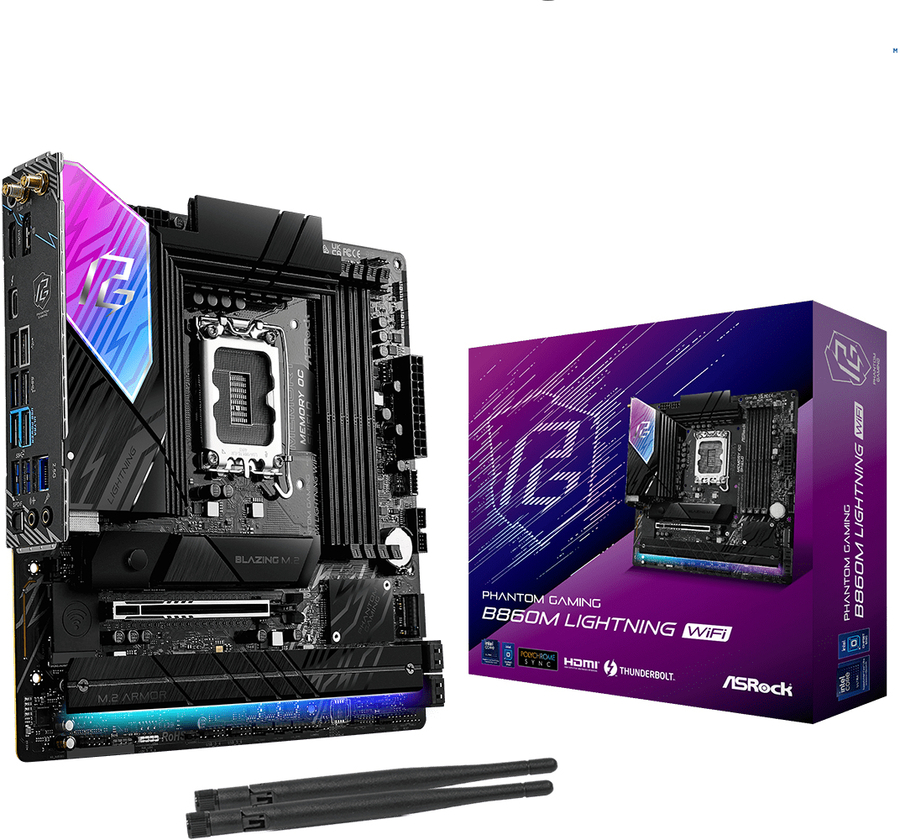

Packaging content |
|
Cables included |
SATA |
|
Antenna included |
Yes |
|
