General Information |
|
Summary |
Supports 100 site-to-site BOVPN tunnels, 4×2.5Gb + 4×1Gb ports, and enterprise-grade security in a compact design.

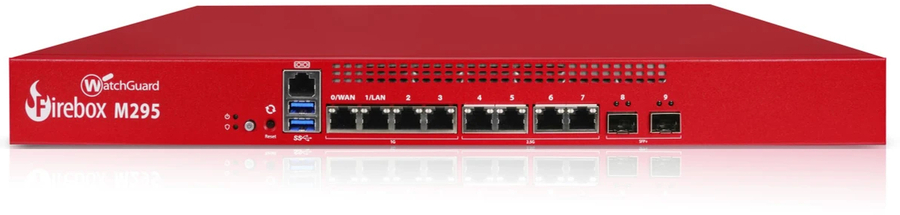

Secure Performance for Small Branch Offices
Designed for small sites and remote offices, the Firebox M295 delivers 1.8 Gbps UTM throughput, 1.12 Gbps HTTPS inspection, and support for up to 100 users. With a compact design and flexible port options, it’s the right choice for organizations needing enterprise-grade security in a cost-conscious package. |
|
Data transmission |
|
Firewall throughput |
1.85 Gbit/s |
|
Firewall (UDP 1518) throughput |
7.9 Gbit/s |
|
VPN (IMIX) throughput |
1800 Mbit/s |
|
VPN (UDP 1518) throughput |
5.8 Gbit/s |
|
IPS/IDS throughput |
2410 Mbit/s |
|
Gateway antivirus throughput |
3 Gbit/s |
|
WSM license quantity |
4 license(s) |
|
Branch Office VPN |
100 |
|
Mobile VPN IPSec |
100 |
|
Maximum firewall connections per second |
60000 |
|
HTTPS encryption |
Yes |
|
Performance |
|
Concurrent connections |
600000 |
|
Syslog |
Yes |
|
Reset button |
Yes |
|
Mean time between failures (MTBF) |
169178 h |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3ad |
|
DHCP server |
Yes |
|
DHCP client |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Security |
|
Security algorithms |
IPSec, HTTPS, TLS |
|
DDoS protection |
Yes |
|
Protocols |
|
Routing protocols |
BGP, OSPF, RIP |
|
Management features |
|
LED indicators |
Yes |
|
On/off switch |
Yes |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
8 |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Serial ports quantity |
1 |
|
SFP+ module slots quantity |
2 |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Built-in fan |
Yes |
|
Power |
|
AC input voltage |
90-260 V |
|
Power consumption (max) |
38.4 W |
|
Certificates |
|
Compliance certificates |
RoHS, REACH, WEEE |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 4570 m |
|
Weight & dimensions |
|
Width |
438 mm |
|
Depth |
320 mm |
|
Height |
44 mm |
|
Weight |
3.5 kg |
|
Packaging data |
|
Package width |
558.8 mm |
|
Package height |
533.4 mm |
|
Package depth |
185.8 mm |
|
Package weight |
6.25 kg |
