General Information |
|
Summary |
Powerful Performance for Evolving Networks
Engineered for modern business needs, our Firebox M Series rackmount appliances provide next-generation firewall (NGFW) features with up to 5x faster single-tunnel VPN performance and 2-3x higher UTM throughput. Simplified licensing across services gives businesses full-stack security without hidden costs or complexity. These powerful devices are perfect for securing branch offices, distributed networks, and large data centers.
Scalable Security for Growing Networks

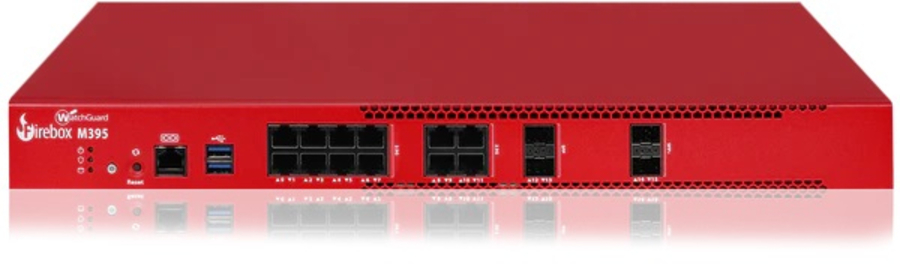

Built for midsize environments, the Firebox M395 offers 3.8 Gbps UTM performance, 1.9 Gbps HTTPS inspection, and support for up to 250 users. It’s engineered to scale with your business while maintaining reliable protection against advanced threats. |
|
Data transmission |
|
Firewall throughput |
3.85 Gbit/s |
|
Firewall (UDP 1518) throughput |
20 Gbit/s |
|
VPN (IMIX) throughput |
2550 Mbit/s |
|
VPN (UDP 1518) throughput |
8.1 Gbit/s |
|
IPS/IDS throughput |
4500 Mbit/s |
|
Gateway antivirus throughput |
5.9 Gbit/s |
|
WSM license quantity |
4 license(s) |
|
Branch Office VPN |
350 |
|
Mobile VPN IPSec |
350 |
|
Maximum firewall connections per second |
124000 |
|
HTTPS encryption |
Yes |
|
Performance |
|
Concurrent connections |
8400000 |
|
Syslog |
Yes |
|
Reset button |
Yes |
|
Mean time between failures (MTBF) |
324136 h |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3ad |
|
Number of users |
250 user(s) |
|
Dynamic DNS (DDNS) |
Yes |
|
DHCP server |
Yes |
|
DHCP client |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Point-to-point protocol over Ethernet (PPPoE) |
Yes |
|
Security |
|
Security algorithms |
HTTPS, SNMP, IPSec, SSL/TLS, SNMPv2, SNMPv3 |
|
DDoS protection |
Yes |
|
Protocols |
|
Routing protocols |
BGP, OSPF, RIP |
|
Management features |
|
LED indicators |
Yes |
|
On/off switch |
Yes |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
12 |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Serial ports quantity |
1 |
|
SFP module slots quantity |
2 |
|
SFP+ module slots quantity |
2 |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Built-in fan |
Yes |
|
Power |
|
AC input voltage |
90-264 V |
|
Power consumption (max) |
102 W |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
WEEE, REACH, RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 4570 m |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
310 mm |
|
Height |
44 mm |
|
Weight |
4.9 kg |
|
Packaging data |
|
Package width |
552.5 mm |
|
Package height |
508 mm |
|
Package depth |
185.8 mm |
|
Package weight |
6.4 kg |
