General Information |
|
Summary |
Affordable Security without Compromise
Perfect for solo professionals and micro-offices, the T115-W offers robust protection and performance designed for low-traffic environments. As the most cost-effective option in its category, it includes all essential security features, along with secure boot and an ultra-quiet fan, making it ideal for silent, space-constrained setups. |
|
Data transmission |
|
Firewall throughput |
0.28 Gbit/s |
|
Firewall (UDP 1518) throughput |
1.8 Gbit/s |
|
Firewall (IMIX) throughput |
0.55 Gbit/s |
|
VPN (IMIX) throughput |
300 Mbit/s |
|
VPN (UDP 1518) throughput |
0.92 Gbit/s |
|
IPS/IDS throughput |
400 Mbit/s |
|
Gateway antivirus throughput |
0.45 Gbit/s |
|
WSM license quantity |
0 license(s) |
|
Branch Office VPN |
5 |
|
Maximum firewall connections per second |
11300 |
|
HTTPS encryption |
Yes |
|
Performance |
|
Built-in processor |
Yes |
|
Internal memory |
4000 MB |
|
Processor frequency |
1100 MHz |
|
Processor cores |
2 |
|
Antenna design |
Internal |
|
Concurrent connections |
3000000 |
|
Syslog |
Yes |
|
Reset button |
Yes |
|
Mean time between failures (MTBF) |
701687 h |
|
Network |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
|
Networking standards |
IEEE 802.3ad, IEEE 802.1Q |
|
Static route |
Yes |
|
Dynamic routing |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
DHCP server |
Yes |
|
DHCP client |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Point-to-point protocol over Ethernet (PPPoE) |
Yes |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Security |
|
Security algorithms |
IPSec, SSL/TLS, HTTPS, FTPES, SNMPv2, SNMPv3, FIPS 140-3 |
|
DDoS protection |
Yes |
|
Protocols |
|
Routing protocols |
RIP, OSPF, BGP |
|
Management features |
|

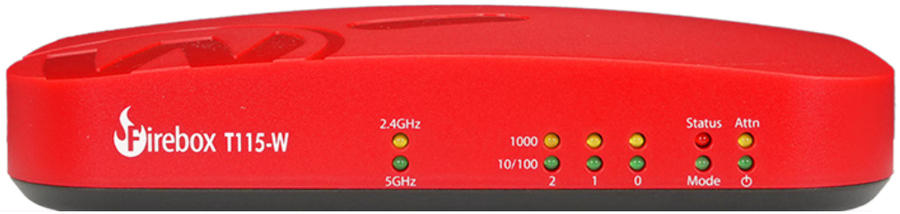

LED indicators |
Yes |
|
On/off switch |
Yes |
|

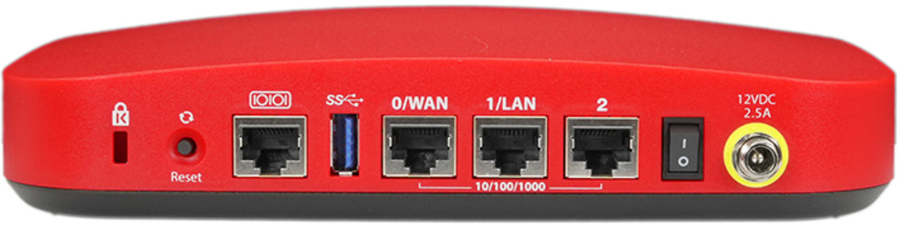

Ports & interfaces |
|
Connectivity technology |
Wired & Wireless |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
3 |
|
Ethernet LAN data rates |
1000,10,100 Mbit/s |
|
Serial ports quantity |
1 |
|
DC-in jack |
Yes |
|
Storage |
|
Storage media type |
eMMC |
|
Flash memory |
4 MB |
|
Total storage capacity |
4 GB |
|
Design |
|
Form factor |
Desktop |
|
Power |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
DC input voltage |
12 V |
|
Power consumption (max) |
25 W |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
WEEE, RoHS, REACH, CB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
10 - 85% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
205 mm |
|
Depth |
174 mm |
|
Height |
42 mm |
|
Weight |
800 g |
|
Packaging data |
|
Package width |
255 mm |
|
Package height |
267 mm |
|
Package depth |
51 mm |
|
Package weight |
1.25 kg |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
Other features |
|
Maximum data transfer rate |
4323 Mbit/s |
