General Information |
|
Summary |
Reliable Security for Every Branch and Storefront

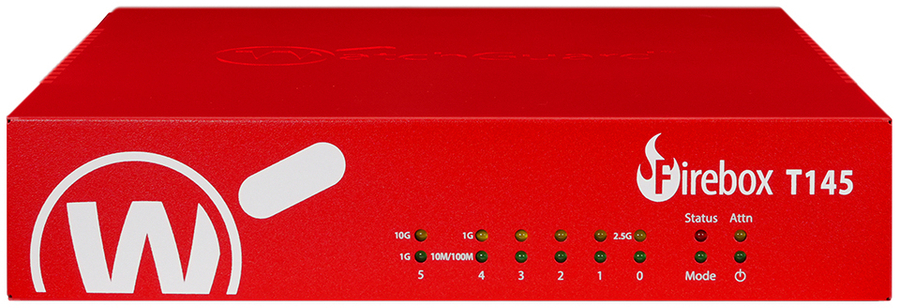

WatchGuard’s Firebox T145 tabletop appliances deliver enterprise-grade network security for small branch offices and retail environment.These compact, affordable security solutions include all the features found in WatchGuard’s higher end UTM appliances, such as AI-powered anti-malware, threat correlation, and DNS filtering. All logging and reporting functions come with the purchase, offering over 100 dashboards and reports, including PCI and HIPAA. |
|
Data transmission |
|
Firewall throughput |
0.71 Gbit/s |
|
Firewall (UDP 1518) throughput |
3.9 Gbit/s |
|
Firewall (IMIX) throughput |
1.34 Gbit/s |
|
VPN (IMIX) throughput |
680 Mbit/s |
|
VPN (UDP 1518) throughput |
2.2 Gbit/s |
|
IPS/IDS throughput |
1030 Mbit/s |
|
Gateway antivirus throughput |
1.06 Gbit/s |
|
WSM license quantity |
0 license(s) |
|
Branch Office VPN |
30 |
|
Maximum firewall connections per second |
29700 |
|
HTTPS encryption |
Yes |
|
Performance |
|
Built-in processor |
Yes |
|
Internal memory |
4000 MB |
|
Internal memory type |
DDR4 |
|
Processor frequency |
1800 MHz |
|
Processor cores |
4 |
|
Concurrent connections |
3850000 |
|
Reset button |
Yes |
|
Mean time between failures (MTBF) |
846422 h |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3ad |
|
Static route |
Yes |
|
Dynamic routing |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
DHCP server |
Yes |
|
DHCP client |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Point-to-point protocol over Ethernet (PPPoE) |
Yes |
|
Security |
|
Security algorithms |
HTTPS, IPSec, SSL/TLS, TLS, SNMPv2, SNMPv3, FIPS 140-3 |
|
DDoS protection |
Yes |
|
Protocols |
|
Routing protocols |
RIP, BGP, OSPF |
|
Management features |
|
LED indicators |
Yes |
|

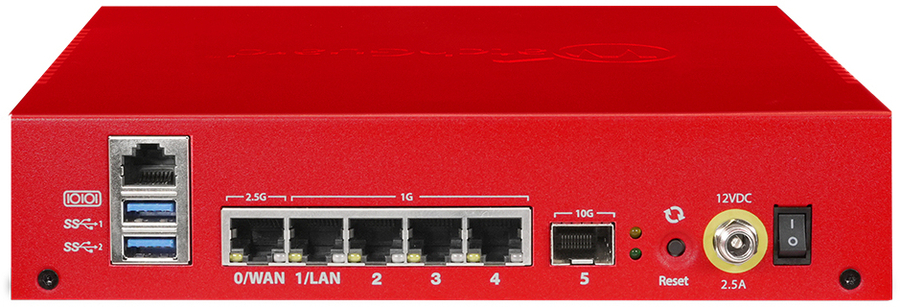

Ports & interfaces |
|
Connectivity technology |
Wired |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
5 |
|
Ethernet LAN data rates |
2500,1000,10,100 Mbit/s |
|
Serial ports quantity |
1 |
|
WAN connection |
Ethernet (RJ-45) |
|
SFP/SFP+ slots quantity |
1 |
|
Storage |
|
Storage media type |
eMMC |
|
Flash memory |
4 MB |
|
Total storage capacity |
16 GB |
|
Design |
|
Form factor |
Desktop |
|
Power |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
DC input voltage |
12 V |
|
Power consumption (max) |
20 W |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
WEEE, RoHS, REACH, CB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
10 - 85% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
230 mm |
|
Depth |
210 mm |
|
Height |
44 mm |
|
Weight |
1.36 kg |
|
Packaging data |
|
Package width |
311 mm |
|
Package height |
250 mm |
|
Package depth |
98 mm |
|
Package weight |
2.09 kg |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
AC adapter included |
Yes |
