General Information |
|
Summary |

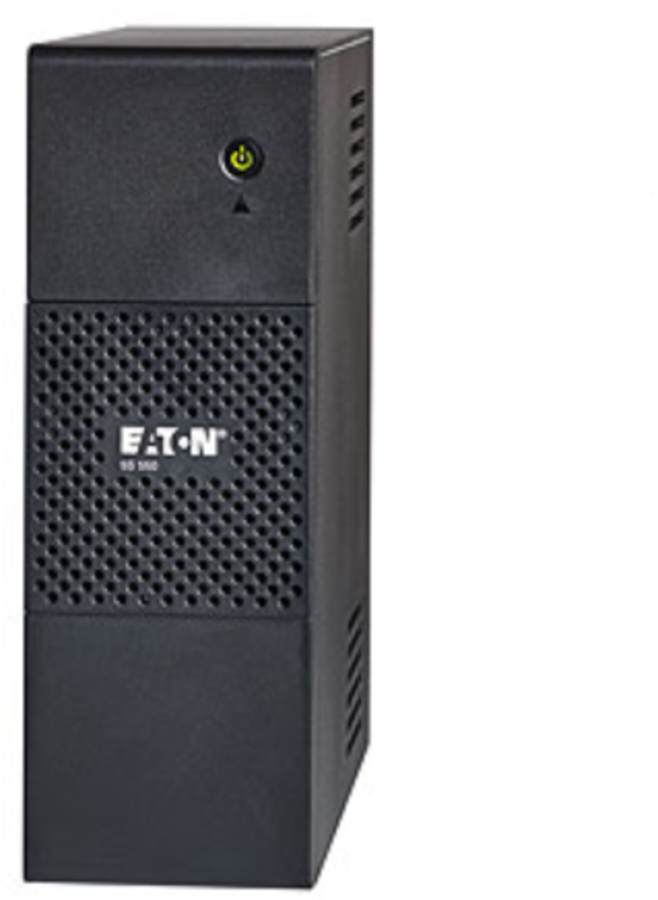

The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface. |
|
Features |
|
Output power capacity |
0.55 kVA |
|
Output power |
330 W |
|
Input operation voltage (min) |
93 V |
|
Input operation voltage (max) |
138 V |
|
Input frequency |
50/60 Hz |
|
Efficiency |
95% |
|
Noise level |
25 dB |
|
Surge protection |
Yes |
|
Surge protection features |
Network |
|
Ports & interfaces |
|
AC outlet types |
NEMA 5–15R |
|
Power plug |
NEMA 5-15P |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB 2.0 ports quantity |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
1 min |
|
Typical backup time at half load |
12 min |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.8 m |
|
Certification |
UL 1778, UL497A
CE / cTUVus / NOM |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-15 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
86 mm |
|
Depth |
259 mm |
|
Height |
249 mm |
|
Weight |
5.6 kg |
