StarTech Quad-Port SFP+ Server Network Card
|
|
Regularly: $756.00
On Sale: $725.76
Sale Ends:
April 26th, 2024
Manufacturer:
StarTech
StarTech.com Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Ethernet Server NIC - 10GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant (PEX10GSFP4I)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
36169160
|
PEX10GSFP4I
|
65030867740 |
Active
|
Details
|
General Information |
|
Summary |

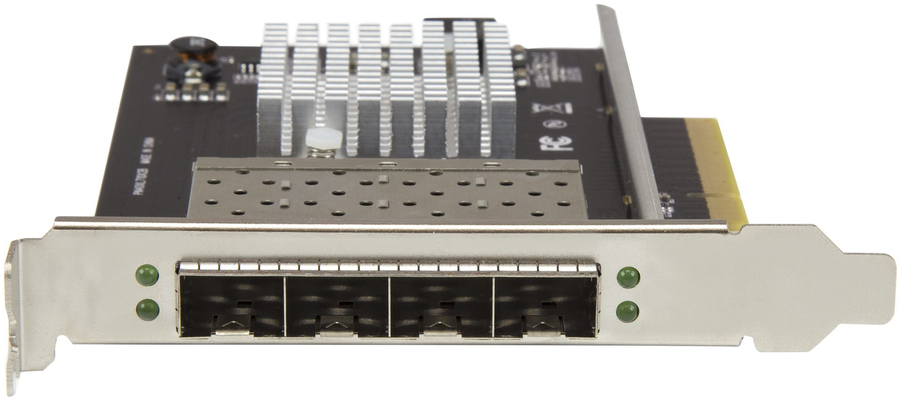

Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

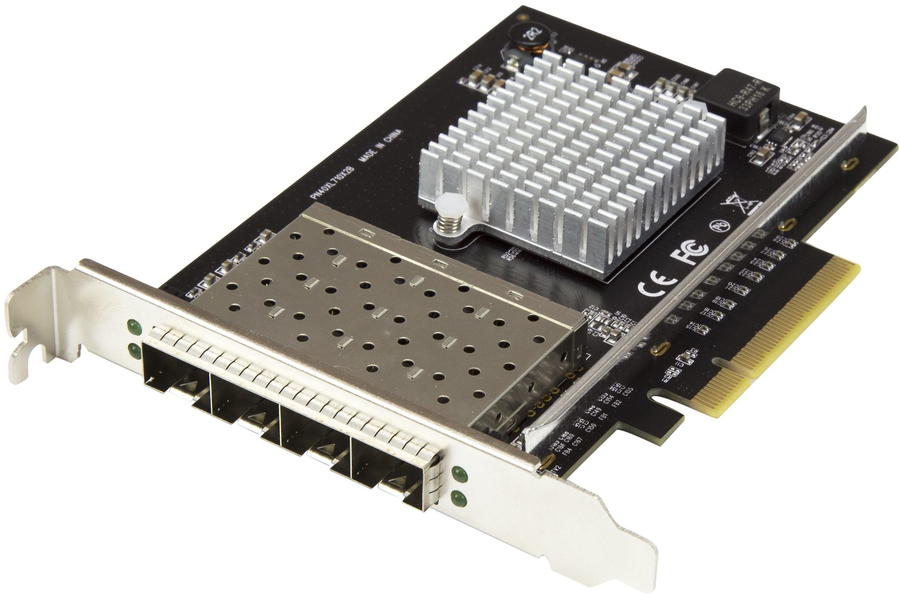

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities

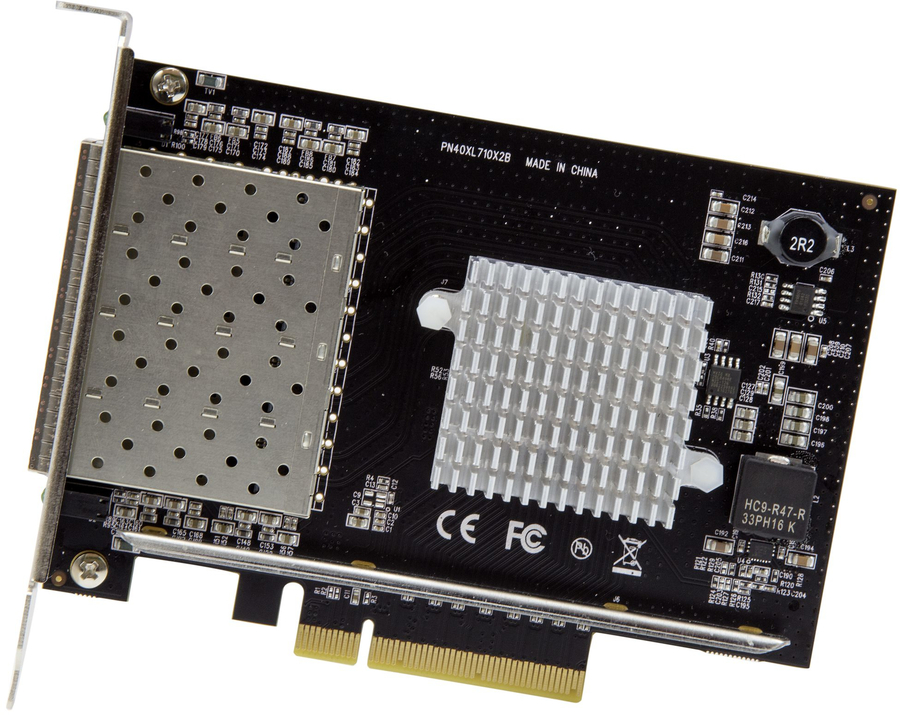

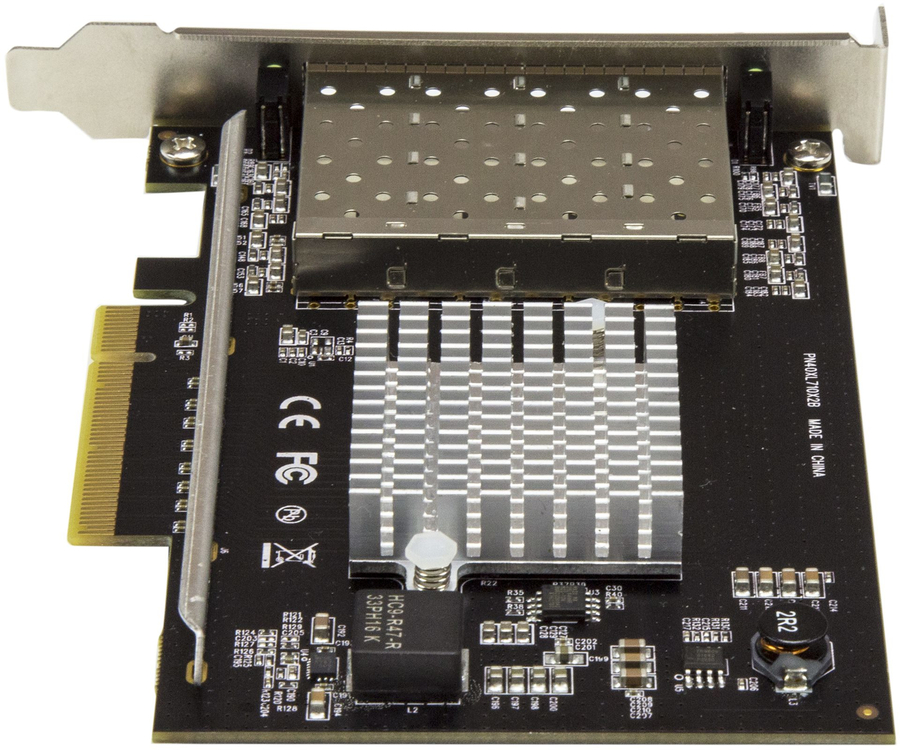

The SFP+ server network card features the Intel XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
- TECH SPECS: 10 Gbps per port
- 4 SFP+ Ports, MSA Compliant |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
PCI Express |
|
Interface |
Fiber |
|
Fiber ports quantity |
4 |
|
Fiber optic connector |
SFP+ |
|
PCI version |
3.0 |
|
Network |
|
Maximum data transfer rate |
20000 Mbit/s |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3x |
|
Full duplex |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
VLAN tagging |
Yes |
|
Design |
|
Internal |
Yes |
|
Product colour |
Black |
|
Chipset |
Intel® XL710 |
|
LED indicators |
Activity, Link |
|
Certification |
CE, FCC, REACH |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Sustainability |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
15 mm |
|
Depth |
139 mm |
|
Height |
100 mm |
|
Weight |
122 g |
|
Packaging data |
|
Package width |
142 mm |
|
Package depth |
170 mm |
|
Package height |
30 mm |
|
Package weight |
182 g |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case width |
305 mm |
|
Master (outer) case length |
580 mm |
|
Master (outer) case height |
360 mm |
|
Products per master (outer) case |
80 pc(s) |
|
Other features |
|

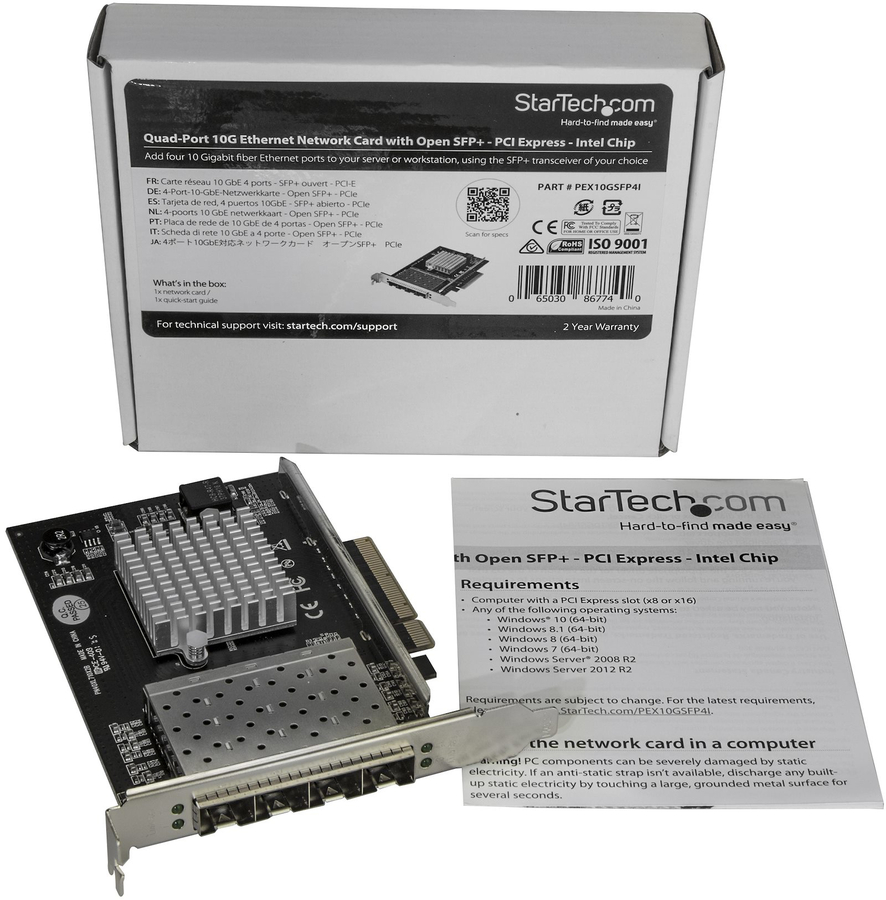

Quick start guide |
Yes |
|
Flow control support |
Yes |
|
