Aten 2-Port USB DVI/Audio Slim KVM Switch
|
|
Regularly: $160.00
On Sale: $153.60
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
USB, DVI-D, DC 5V, 5W, 1920 x 1200px @ 60Hz, HDCP, 330g
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
38960916
|
CS72D
|
672792004599 |
Active
|
Details
|
General Information |
|
Summary |

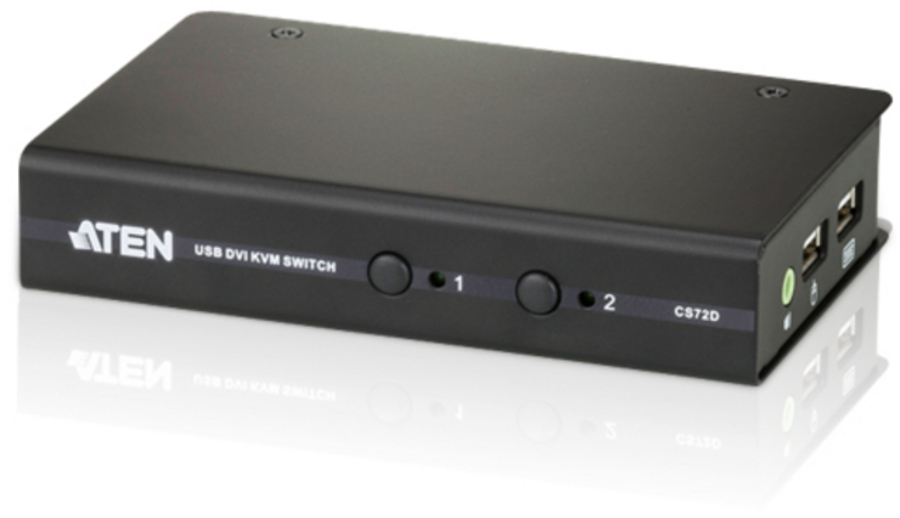

The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
The CS72D comes with ATEN’s Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB2.0 peripheral sharing, as well as provides quick and easy methods to access computers.
Features:
-Fully compliant with DVI specifi cation (Digital only)
-Supports multi-function mouse and wireless mouse/keyboard
-Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
-Superior video quality – 1920 x 1200@60Hz
-Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun
-HDCP compliant
-Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
-Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems

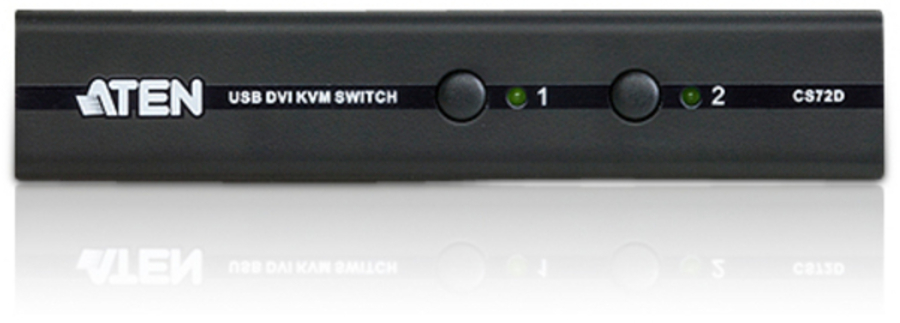

-Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*
-USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
-Complete keyboard emulation for error-free booting
-Firmware upgradeable
-Non-powered
-Mac/Sun keyboard support and emulation**
* Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse
** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
Package Contents
1x CS72D 2-Port USB DVI KVM Switch
1x Custom KVM Split Cable (DVI-D, USB, Audio; 1.2m/4ft)
1x User Instructions |
|
Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
DVI-D |
|

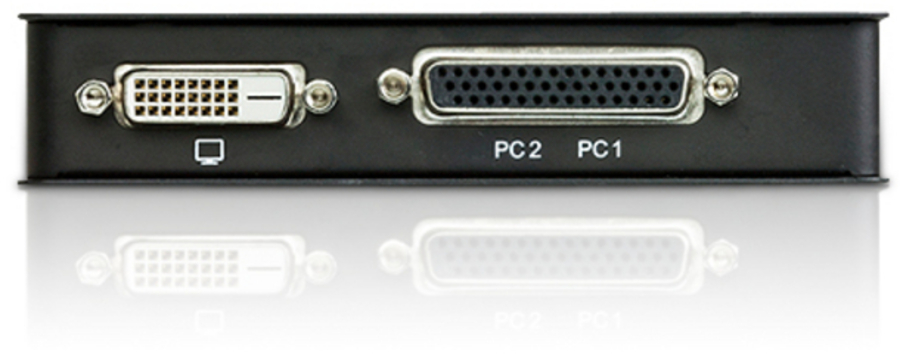

Console ports |
DVI-D, USB A |
|
DVI-D ports quantity |
1 |
|
USB 2.0 ports quantity |
2 |
|
Audio connections |
Yes |
|
DC-in jack |
No |
|
Performance |
|
HD type |
WUXGA |
|
Maximum resolution |
1920 x 1200 pixels |
|
Video bandwidth |
60 Hz |
|
HDCP |
Yes |
|
Design |
|
Product colour |
Black |
|
Cable length |
1.2 m |
|
LED indicators |
Yes |
|
Push button |
Yes |
|
Hot keys |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
AC input voltage |
5 V |
|
Power consumption (typical) |
5 W |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Sustainability |
|
Sustainability certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
75.4 mm |
|
Depth |
123 mm |
|
Height |
22.8 mm |
|
Weight |
330 g |
|
Packaging content |
|
Manual |
Yes |
|
