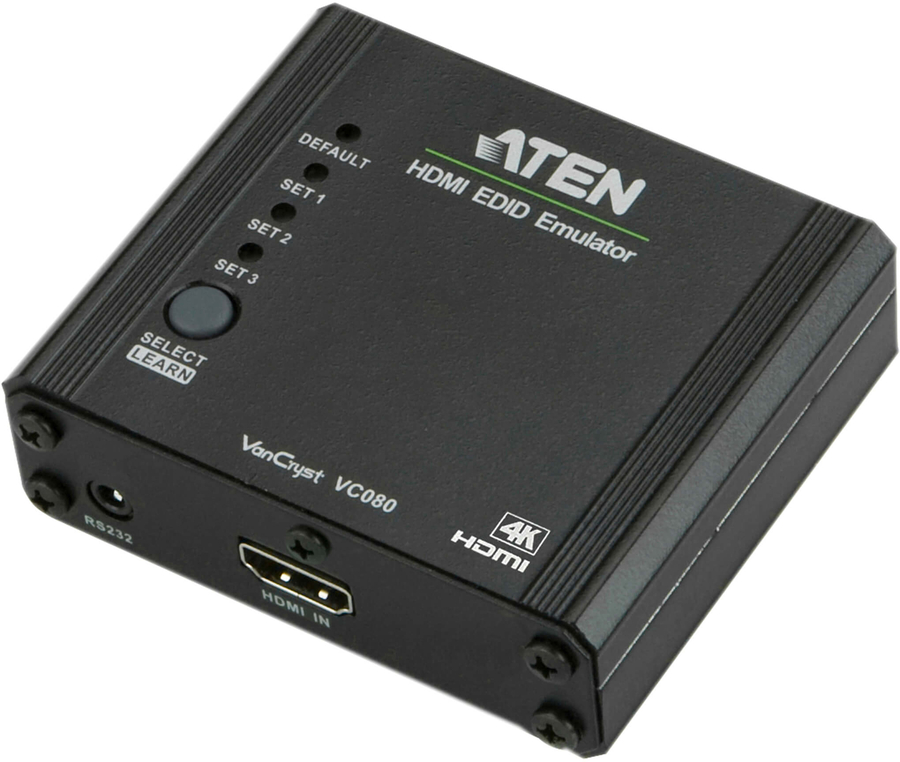

Aten HDMI EDID Emulator
|
|
Regularly: $90.00
On Sale: $86.40
Sale Ends:
May 10th, 2024
Manufacturer:
Aten
4K HDMI EDID Emulator with Programmer
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
46841401
|
VC080
|
- |
Active
|
Details
|
General Information |
|
Summary |
The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings. |
|
Features |
|
Maximum video resolution |
1920 x 1080 pixels |
|
Video resolutions |
640 x 480,1280 x 720,1920 x 1080,1920 x 1200 |
|
Bandwidth |
2.25 Gbit/s |
|
Deep colour support |
Yes |
|
Consumer Electronics Control (CEC) support |
Yes |
|
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Ports & interfaces |
|

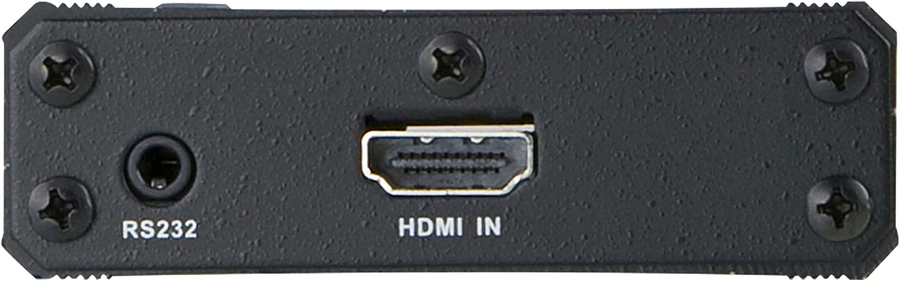

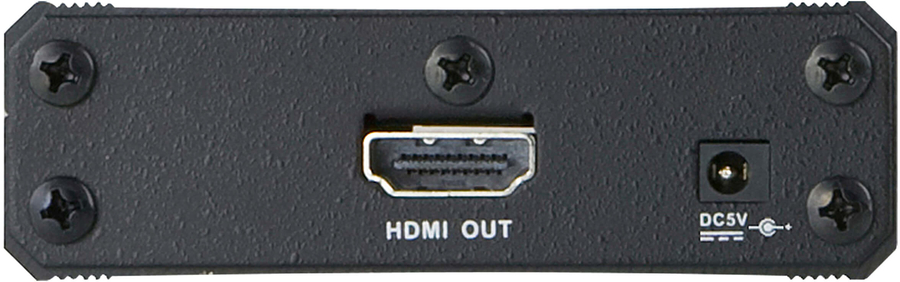

Video port type |
HDMI |
|
Number of video inputs |
1 |
|
Number of video outputs |
1 |
|
HDCP |
Yes |
|
DC-in jack |
Yes |
|
Power |
|
AC adapter output voltage |
5 V |
|
Power consumption (max) |
0.15 W |
|
Logistics data |
|
Quantity per pack |
1 pc(s) |
|
Packaging content |
|
AC adapter included |
Yes |
|
Quick start guide |
Yes |
|
Weight & dimensions |
|
Width |
71.6 mm |
|
Depth |
79 mm |
|
Height |
24.5 mm |
|
Weight |
150 g |
|
