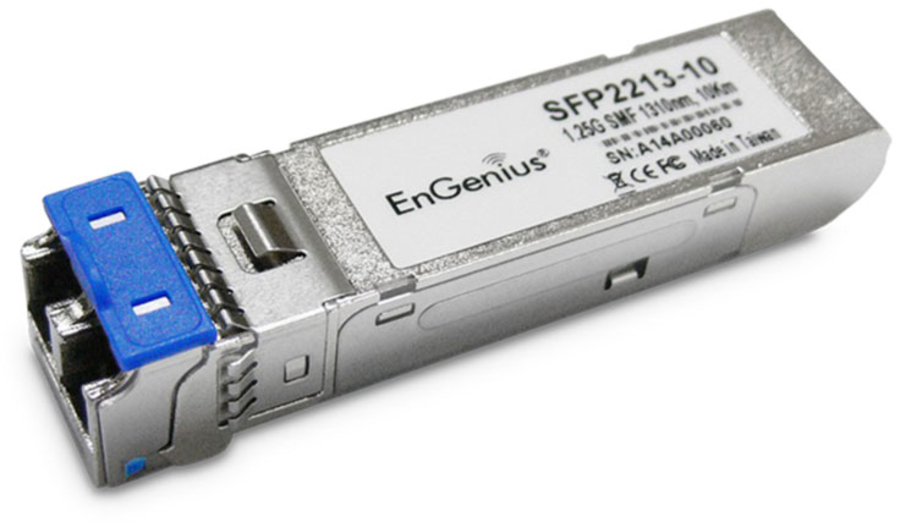

EnGenius SFP Switch 1.25Gig Transceiver Module
|
|
Regularly: $71.00
On Sale: $68.16
Sale Ends:
May 10th, 2024
Manufacturer:
EnGenius
LC, 1.25Gbps, 850nm, MMF, 0.5km
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
57989558
|
SFP2815-05
|
655216007413 |
Active
|
Details
|
General Information |
|
Summary |
Gigabit Ethernet SFP Transceiver Module
- Hot pluggable LC Duplex Connector
- IEEE 802.3z compliant
- Industry standard compliance
- Low power dissipation
- Class 1 laser product, complies with International Safety Standard IEC 825
- ROHS Compliant
Reliable, high-performance SFP transceiver modules for Gigabit Ethernet applications
EnGenius Small Form-Factor Pluggable (SFP) transceiver is an industry standard hot-swappable device that plugs into the SFP port or slot and link the port with the network. |
|
Performance |
|
Maximum data transfer rate |
1250 Mbit/s |
|
Interface type |
SFP |
|
Fiber optic connector |
LC |
|
SFP transceiver standard |
SX |
|
Maximum transfer distance |
500 m |
|
Wavelength |
850 nm |
|
Networking standards |
IEEE 802.3z |
|
Features |
|
Product colour |
Blue, Silver |
|
Hot-Plug support |
Yes |
|
Power |
|
Maximum voltage |
3.45 V |
|
Maximum current |
0.16 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Weight & dimensions |
|
Width |
13.7 mm |
|
Depth |
56.6 mm |
|
Height |
12.4 mm |
|
Weight |
25 g |
|
Packaging data |
|
Number of products included |
1 pc(s) |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
85369010 |
|
