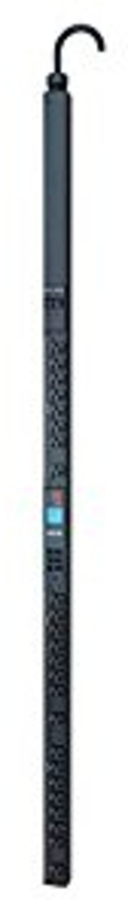

APC Rack PDU 2G, Metered-by-Outlet with Switching, ZeroU, 30A, 100-120V, (24) 5-20R
|
|
Regularly: $2427.00
On Sale: $2329.92
Sale Ends:
May 10th, 2024
Manufacturer:
APC
Rack PDU 2G, Metered-by-Outlet with Switching, ZeroU, 30A, 100-120V, (24) 5-20R
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122259
|
AP8632
|
7313043074574 |
Active
|
Details
|
General Information |
|
Summary |
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable |
|
Design |
|
PDU types |
Switched |
|
Rack capacity |
0U |
|
Mounting |
Vertical |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
24 AC outlet(s) |
|
AC outlet types |
NEMA L5-20R |
|
Power plug |
NEMA L5-30P |
|
Features |
|
Cable length |
3 m |
|
Certification |
cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
|
Power |
|
Nominal input voltage |
100 - 120 V |
|
Maximum current |
30 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
100-120 V |
|
Maximum input current per phase |
30 A |
|
Power protection features |
Overload |
|
Maximum power |
2900 W |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
55 x 51 x 1829 mm |
|
Weight |
8.05 kg |
|
Packaging data |
|
Package dimensions (WxDxH) |
164 x 119 x 2041 mm |
|
Package weight |
10.1 kg |
|
Package type |
Box |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-25 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
