General Information |
|
Summary |

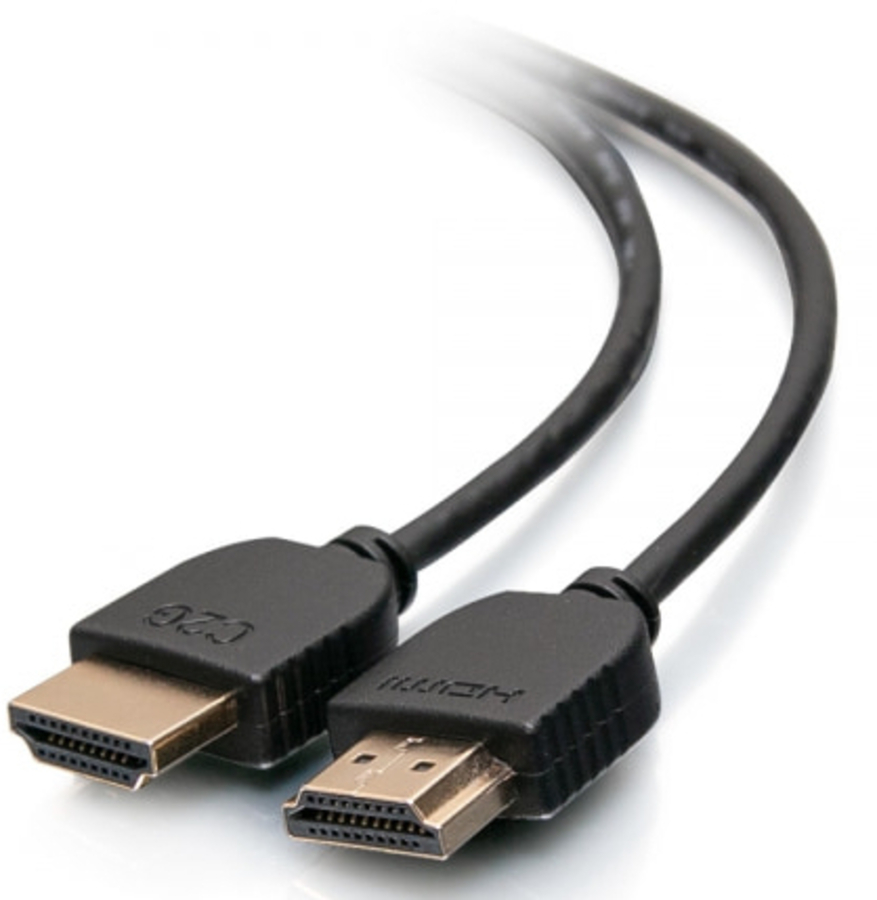

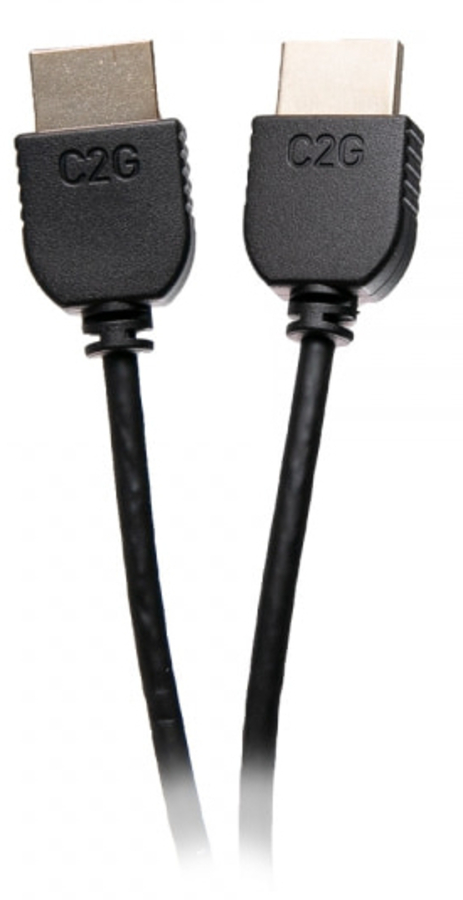

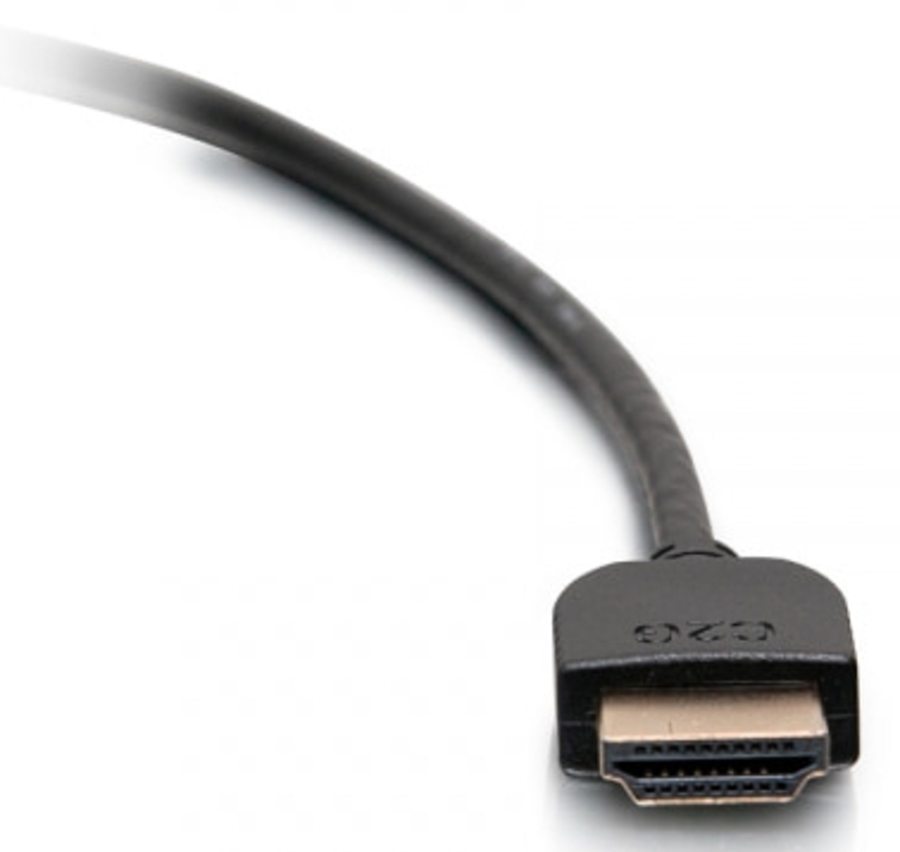

The Flexible Standard Speed HDMI Cable with Low Profile Connectors is perfect for connecting a wide variety of devices from computers to projectors and monitors, home entertainment systems to HDTVs and gaming systems, or any audio video applications requiring high speed HDMI features and video resolutions up to 1080p (1920 x 1080) at 60Hz.
This Flexible Standard Speed HDMI Cable was designed for installations in tight spaces and offers many features like 3D video, deep color, Dolby® True HD, DTS-HD Master Audio, and up to 32 audio channels for a multi-dimensional immersive audio experience. All these features will catch the attention of the audience, providing a more realistic video experience.
This Flexible Standard Speed HDMI Cable supports the updated library of Consumer Electronic Control (CEC) commands, allowing communication between devices connected through the HDMI ports. The Ethernet capabilities of the cable allow for Ethernet-enabled HDMI devices to access interactive online content or update device firmware. The gold plated connectors on the cable allow for better shielding, increased electrical conductivity, and durability. |
|
Features |
|
Cable length |
3.05 m |
|
Connector 1 |
HDMI Type A (Standard) |
|
Connector 2 |
HDMI Type A (Standard) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector contacts plating |
Gold |
|
Quantity per pack |
1 pc(s) |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
3D |
Yes |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 4096 x 2160 |
|
Supported video modes |
1080p |
|
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
|
Audio Return Channel (ARC) |
Yes |
|
HDMI Ethernet channel |
Yes |
|
RGB support |
4:4:4 |
|
Data transfer rate |
10.2 Gbit/s |
|
Supported digital audio channels (uncompressed) |
32 |
|
Maximum refresh rate |
60 Hz |
|
AWG wire size |
36 |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Magnetically shielded |
Yes |
|
Shield material |
Aluminium |
|
Bending radius (min) |
2.54 cm |
|
Plug and Play |
Yes |
|
Certification |
NDAA 889
Prop 65
TSCA |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 80 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Weight & dimensions |
|
Cable diameter |
3.6 mm |
|
Technical details |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
REACH, RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
