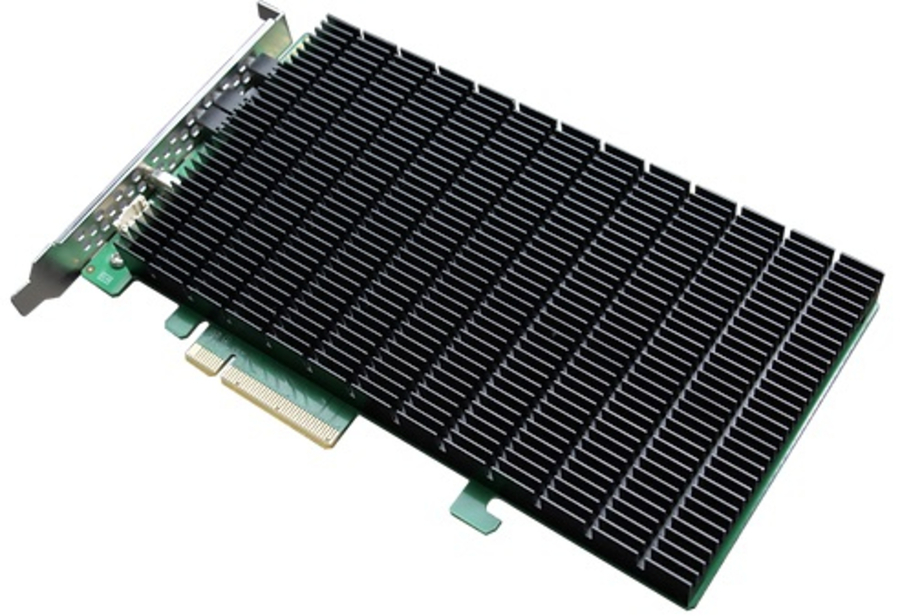

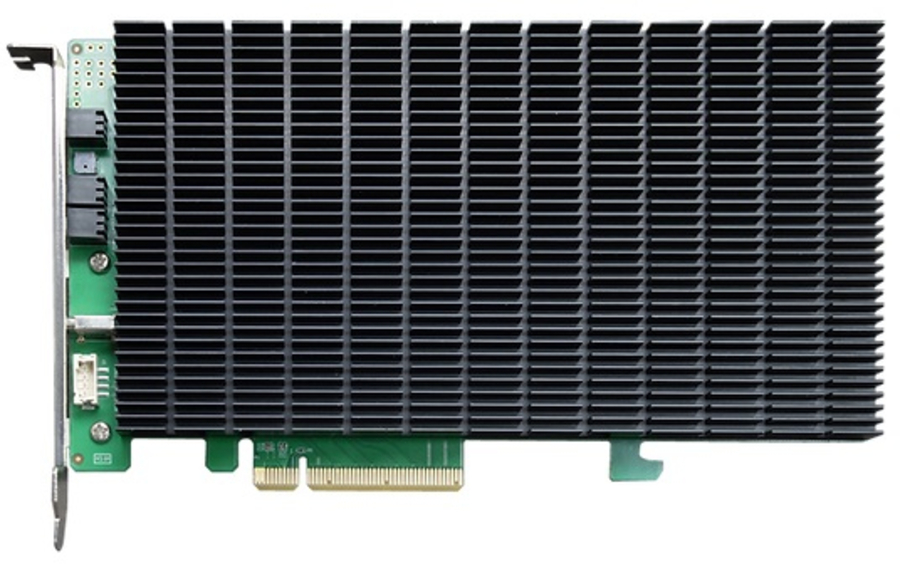

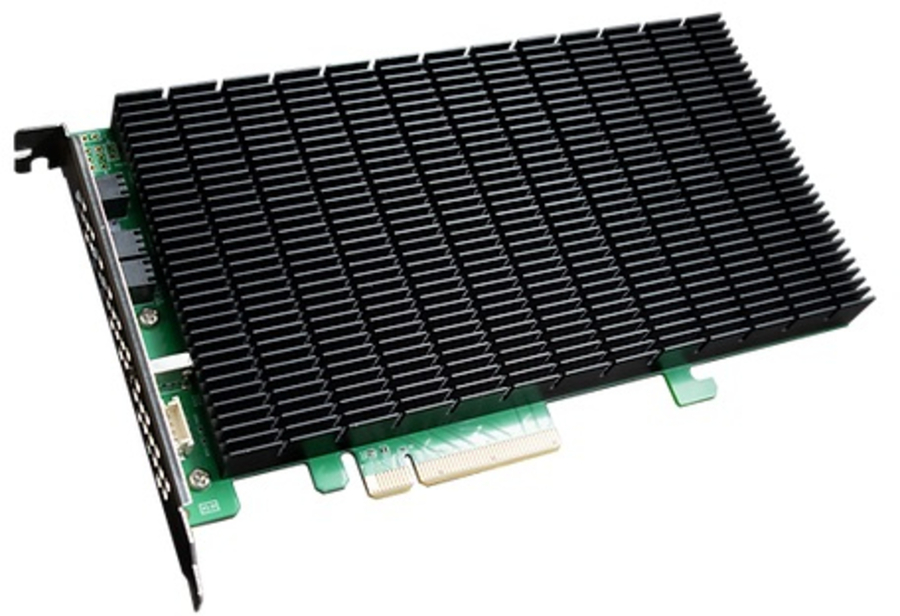

HighPoint SSD6204A NVMe RAID Controller
|
|
Price: $480.00
Manufacturer:
HighPoint
PCI-Express 3.0 x8, 2x M.2 NVMe, Full-Height
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58897652
|
SSD6204A
|
643653620432 |
Active
|
Details
|
General Information |
|
Summary |
HighPoint SSD6200 Series NVMe RAID Controllers are ideal for professional applications that require a bootable storage solution with host-level redundant RAID capability and native in-box driver support.
SSD6200 Series controllers were designed to maximize uptime of the host platform and ease the of integration and maintenance of NVMe RAID Storage. In addition, a wide range of solution packages are available for the professional VAR; customers can opt for either 2 and 4 dedicated M.2 device ports, integrated Host RAID 1, 0 & JBOD support, optional OOB management when outside of the OS platform, LED RAID status & I/O indication, UEFI/BIOS/CLI/GUI management interfaces, and Half-Height or Full-Height form factors.
Native hardware support ensures seamless OS Installation & Upgrades
HighPoint SSD6200 series controllers enable professional solutions providers to seamlessly configure bootable, redundant RAID storage for a wide range of customer applications. Native In-Box Driver support is available all major Virtualization platforms, such as VMware, Microsoft Hyper-V and Promox, and all current versions and distributions of Windows, Linux and FreeBSD operating systems. Customers are free to update the Kernel, apply patches, or download and install scheduled updates as needed, without fear of data loss or the need for complicated procedures.
Integrated Host RAID Technology
HighPoint Industrial and Virtualization solutions feature integrated host, hardware-level RAID 0, 1 and JBOD capability. RAID arrays hosted by SSD6200 series controllers are fully transparent and will be automatically recognized by all current VM and OS platforms as available single-drives. No drivers, special procedures or software application is required.
Maximum Uptime
Though simple, RAID 1 mirroring technology remains one of the most effective way to secure a bootable storage configuration against the threat of device failure. RAID 1 creates a hidden, automated backup of the target drive; in this case, a bootable NVMe SSD. If the original should fail, the mirrored backup will immediately, and seamlessly, take the reins. This enables the host system to remain online, and continue to operate, unabated.
Configure arrays with the flip of a switch!
No IT background? No problem! SSD6200 controllers are ideal for users of any skill level. Customers don't need to master a complicated RAID application to configure NVMe storage.
Optimizes Production Workflows
One-Click RAID Creation enables Solution Providers and VAR’s to optimize production workflows. The onboard RAID switch completely flattens the learning curve by eliminating the need for an interface or application. You don’t even need an OS or input devices! Simply install the SSD’s, plug in the card, power on the system and toggle the switch!
RAID Switch Settings
Each controller features two hardware switches which can be used to configure one of 3 arrays modes (Mirroring, Striping and JBOD).

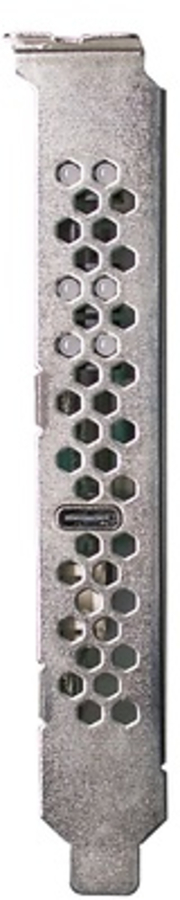

OOB (out-of-band) RAID Management
SSD6202A & SSD6204A controllers provide an out-of-band management port and integrated console management interface.
OOB is ideal for field maintenance and on-site services as it allows the RAID storage to be administered in a pre OS environment. OOB is well suited to secure Data Center and Hosting applications, as it only grants access to the NVMe RAID console and configuration; it cannot interact with user data in any way.
LED Indication
The SSD6202A & SSD6204A provide LED indicators which enable administrators to quickly determine the status of the NVMe SSDs, RAID array, and PCIe host connection.
Interested in a bootable BRD6202 or BRD6204 RAID Drive?
HighPoint is now shipping pre-configured, out of the box ready, Bootable NVMe RAID storage, with little to no markup!
HighPoint FnL BRD Series NVMe RAID AIC Drives deliver blazing performance and massive storage capacity with driverless, plug & play installation at the industry’s most affordable price points.
Blisteringly Fast
A single SSD6200 controller can deliver over 7000MB/s of transfer performance using off-the-shelf M.2 NVMe SSD of any capacity. The massive transfer bandwidth and versatility enable solution providers to deliver custom-tailored NVMe storage for a wide range of customer applications. |
|
Ports & interfaces |
|
Supported storage drive interfaces |
PCI Express 3.0 |
|
Host interface |
PCI Express x8 |
|
PCI Express slots version |
3.0 |
|
Performance |
|
RAID levels |
0, 1 |
|
Data transfer rate |
8 Gbit/s |
|
SSD support |
Yes |
|
Number of devices supported |
4 |
|
Channels quantity |
4 channels |
|
Mean time between failures (MTBF) |
920.585 h |
|
Certification |
CE, FCC, RoHS, REACH, WEEE |
|
Power |
|
Voltage |
12 V |
|
Power consumption (typical) |
3.84 W |
|
Technical details |
|
Sustainability certificates |
RoHS, WEEE |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 11 |
|
Compatible operating systems |
Microsoft Hyper-V, VMware, Proxmox |
|
Server operating systems supported |
Windows Server 2016, Windows Server 2019 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 55 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Weight & dimensions |
|
Width |
195 mm |
|
Depth |
18 mm |
|
Height |
111 mm |
|
Weight |
598 g |
|
