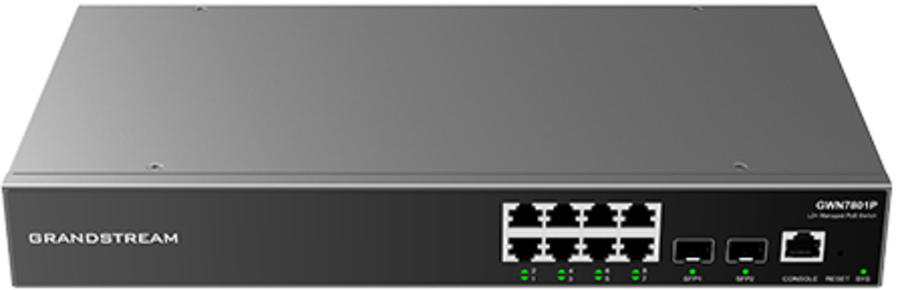

Grandstream GWN7801 8-Port Enterprise Layer 2+ Managed Network Switch
|
|
Price: $132.00
Manufacturer:
Grandstream
Gigabit Ethernet Ports 8,Gigabit SFP Ports 2, IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59102653
|
GWN7801
|
- |
Active
|
Details
|
General Information |
|
Summary |
Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable, the GWN7800 series is supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform
|
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+ |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
2 |
|
Network |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
IP routing |
Yes |
|
Rate limiting |
Yes |
|
Spanning tree protocol |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Auto-sensing |
Yes |
|
Auto-negotiation |
Yes |
|
Active link detection |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
4000 |
|
Data transmission |
|
Switching capacity |
20 Gbit/s |
|
Throughput |
10 Gbit/s |
|
Forwarding rate |
14.88 Mpps |
|
Store-and-forward |
Yes |
|
Static route |
Yes |
|
Number of static routes |
8000 |
|
Security |
|
DHCP features |
DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) rules |
1500 |
|
IGMP snooping |
Yes |
|
MAC address filtering |
Yes |
|
SSH/SSL support |
Yes |
|
Loop protection |
Yes |
|
BPDU filtering/protection |
Yes |
|
IP-MAC-Port binding |
Yes |
|
Password protection |
Yes |
|
Authentication type |
IEEE 802.1x |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast features |
Multicast forwarding |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
Yes |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
Power consumption (typical) |
30 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
175 mm |
|
Depth |
30 mm |
|
Height |
44 mm |
|
Weight |
1.8 kg |
|
Packaging data |
|
Cables included |
AC |
|
Rack mount kit |
Yes |
|
