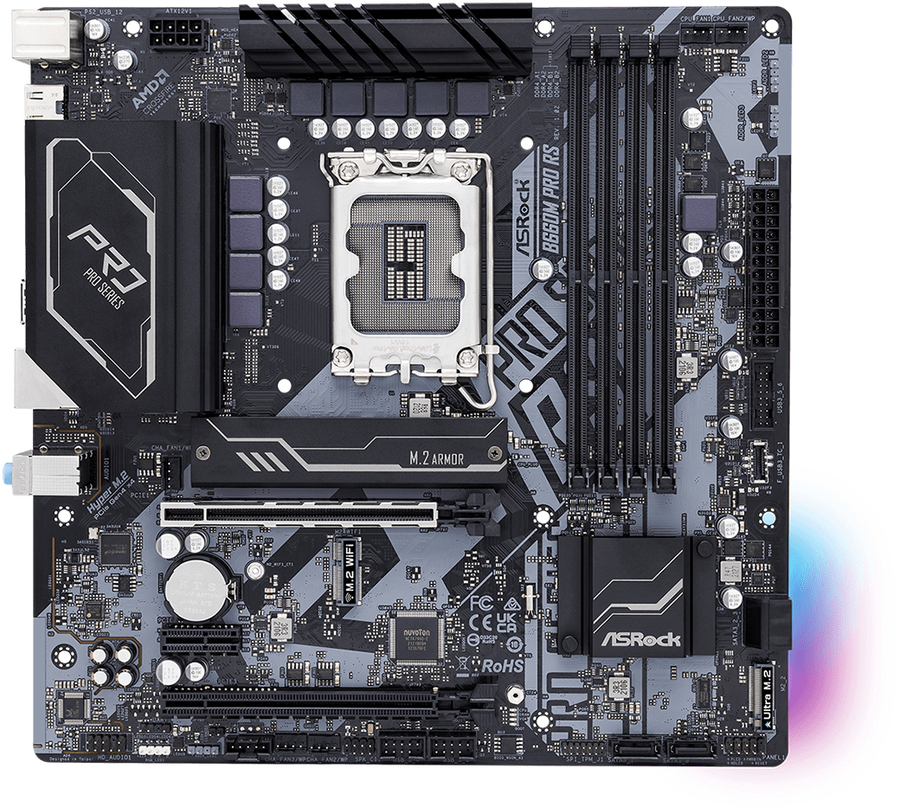

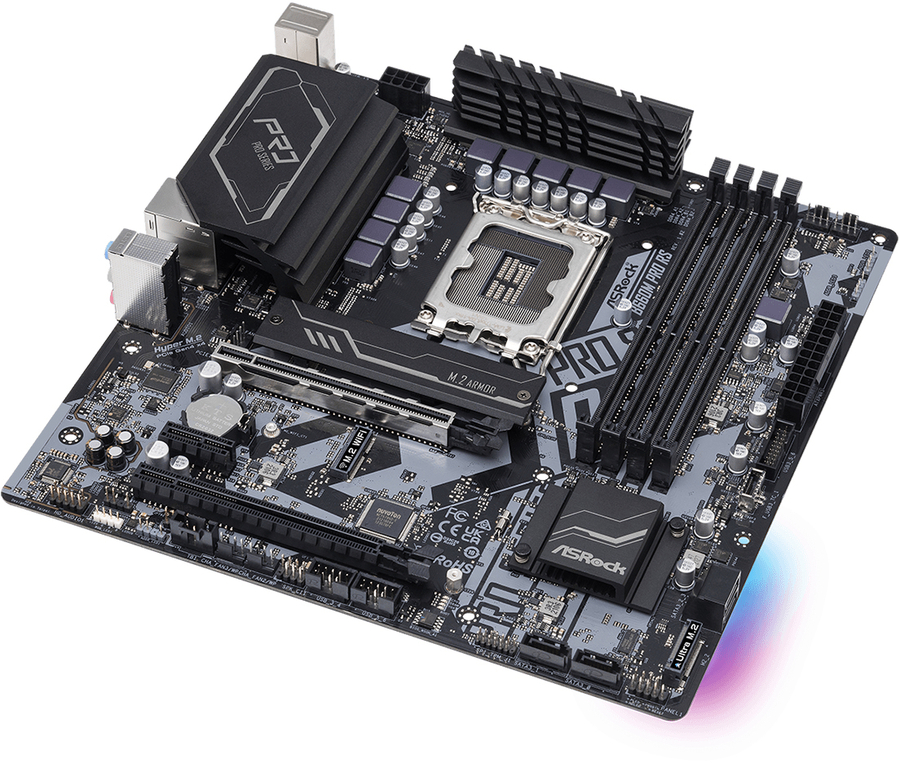

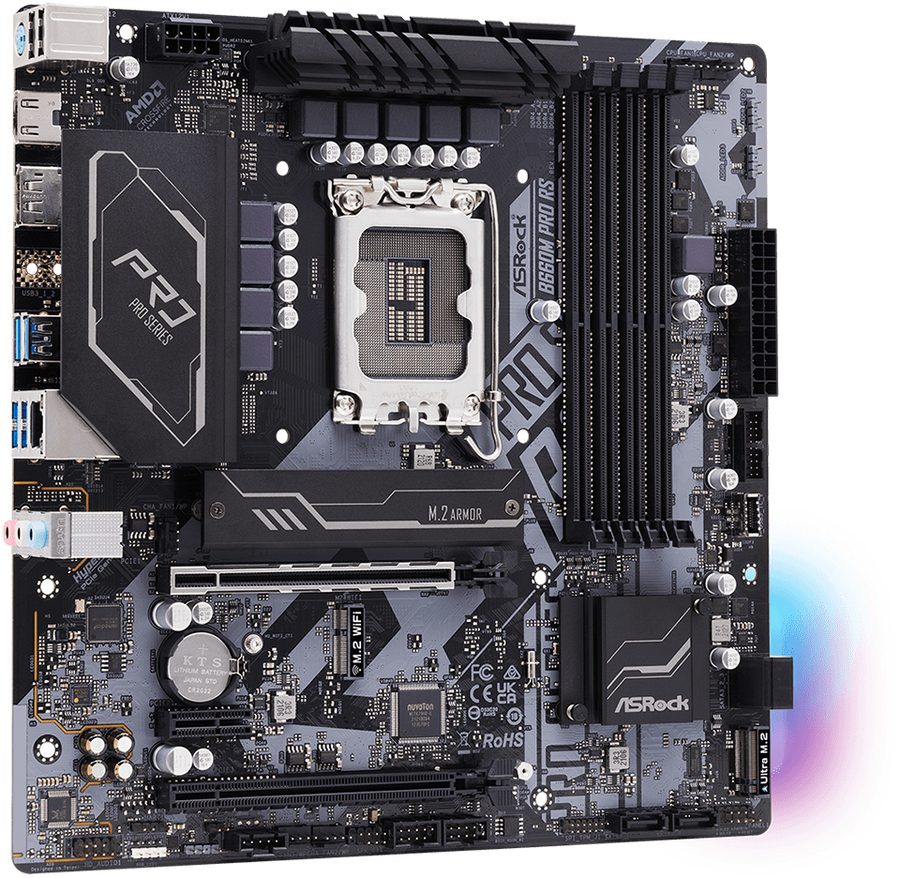

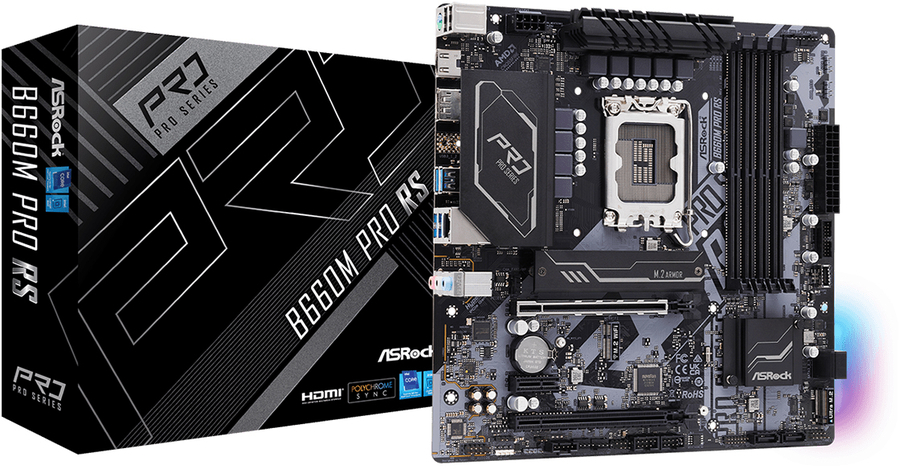

ASRock B660M Pro RS DDR4 S1700 mATX Mainboard
|
|
Regularly: $129.00
On Sale: $121.26
Sale Ends:
May 10th, 2024
Manufacturer:
ASRock
Intel B660, LGA1700, 4 x DDR4, HDMI, DP, 1G LAN, M.2, SATA III, USB 3.2, Micro ATX, 244x244 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59213490
|
B660M PRO RS
|
4710483936524 |
Active
|
Details
|
General Information |
|
Summary |
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
|
Maximum number of SMP processors |
1 |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC |
Yes |
|
Non-ECC |
Yes |
|
Supported memory clock speeds |
4800 MHz |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
Parallel processing technology support |
Crossfire |
|
Maximum resolution |
7680 x 4320 pixels |
|
HDCP |
Yes |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
3 |
|
Chassis intrusion connector |
Yes |
|
TPM connector |
Yes |
|
Thunderbolt headers |
1 |
|
RGB LED pin header |
Yes |
|

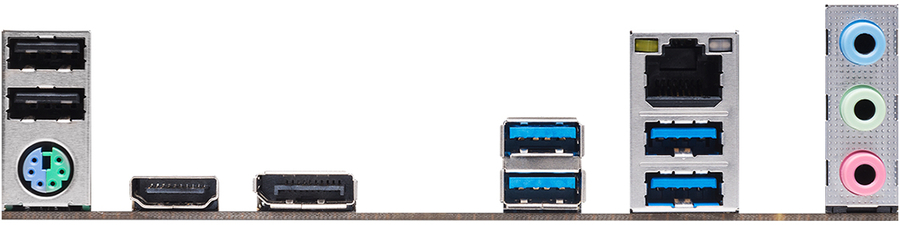

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI ports quantity |
1 |
|
PS/2 ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Intel® I219-V |
|
Wake-on-LAN ready |
Yes |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel B660 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
PC health monitoring |
CPU, Fan, Temperature, Voltage |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
1 |
|
PCI Express x16 slots |
2 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
ACPI version |
6.0 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|
Packaging content |
|
Cables included |
SATA |
|
Drivers included |
Yes |
|
