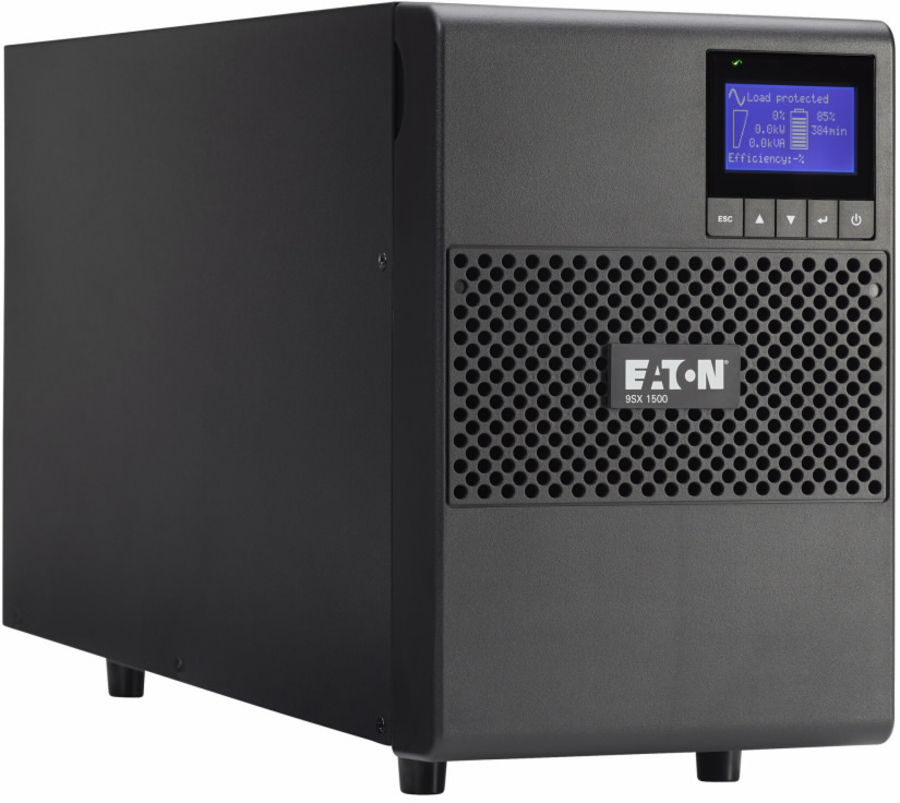

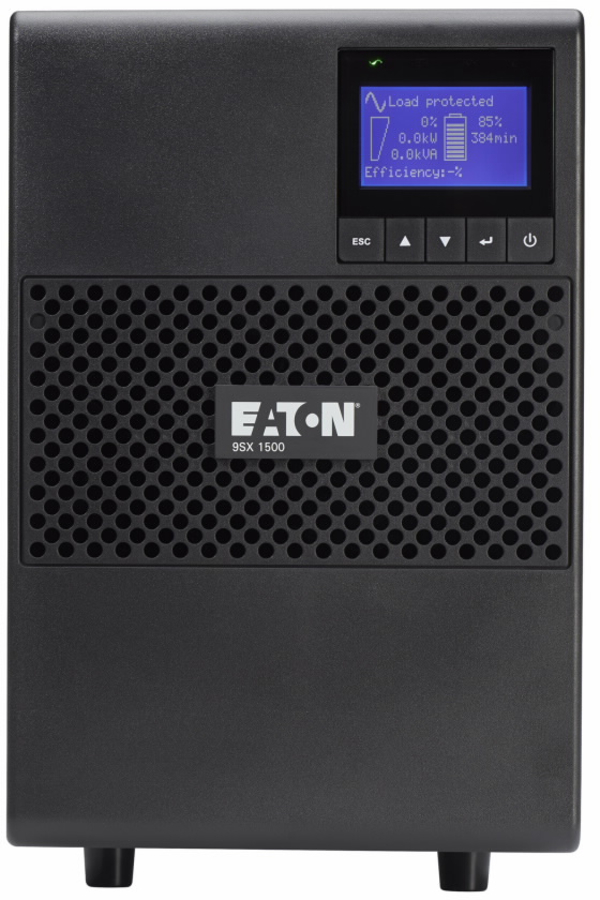

Eaton 9SX Online UPS 1500VA
|
|
Regularly: $1621.00
On Sale: $1556.16
Sale Ends:
May 10th, 2024
Manufacturer:
Eaton
1500 VA, 1350 W, (6) 5-15R, True sine wave, 120V, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59254779
|
9SX1500
|
743172091246 |
Active
|
Details
|
General Information |
|
Summary |
Eaton 9SX UPS Online 1500VA |
|
Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
1.5 kVA |
|
Output power |
1350 W |
|
Waveform |
Sine |
|
Input frequency |
60 Hz |
|
Output operation voltage (min) |
100 V |
|
Output operation voltage (max) |
125 V |
|
Output frequency |
50/60 Hz |
|
Efficiency (On-line mode) |
88% |
|
Output power factor |
9 |
|
Output voltage Total Harmonic Distortion (THD) |
3% |
|
Surge protection |
Yes |
|

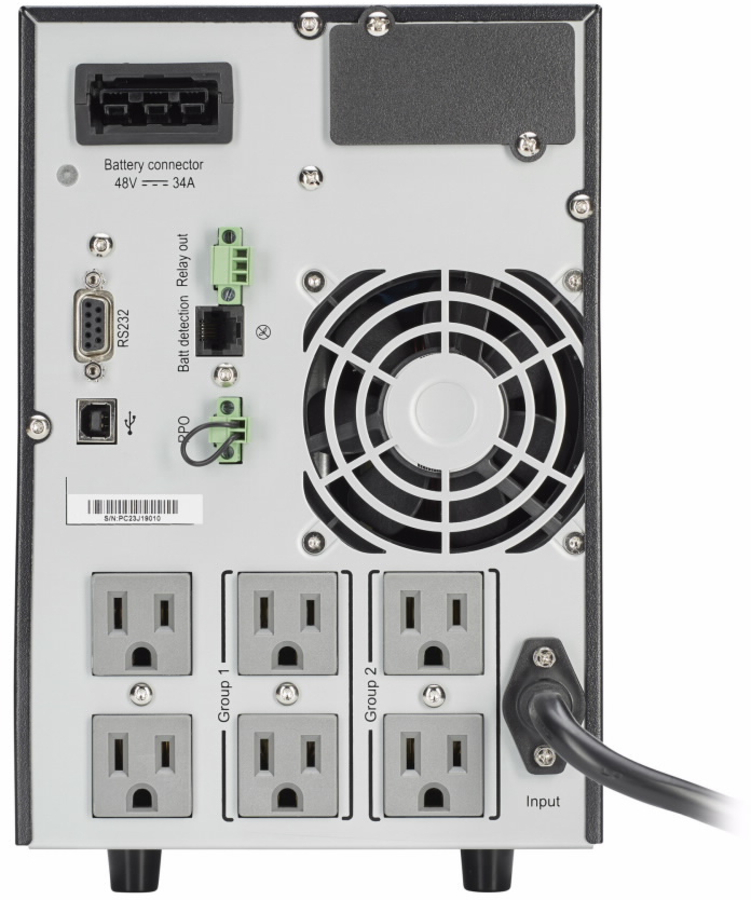

Ports & interfaces |
|
AC outlet types |
NEMA 5–15P |
|
Power plug |
C14 coupler |
|
AC outlets quantity |
6 AC outlet(s) |
|
Number of output IEC jumpers |
2 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB port type |
USB Type-B |
|
Serial interface |
Yes |
|
Serial interface type |
RS-232 |
|
Serial ports quantity |
1 |
|
RS-232 ports |
1 |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.8 m |
|
Cooling type |
Active |
|
Built-in fan |
Yes |
|
Display type |
LCD |
|
Certification |
cULus |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Width |
152.4 mm |
|
Depth |
304.8 mm |
|
Height |
228.6 mm |
|
Weight |
18.1 kg |
|
Packaging data |
|

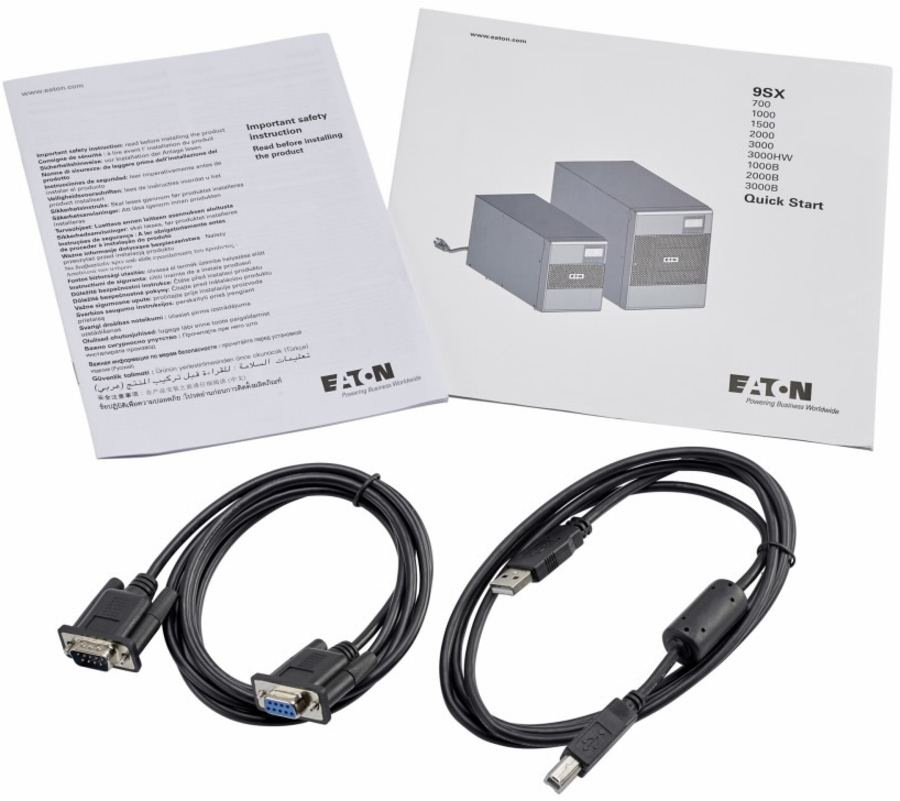

Cables included |
RS-232, USB cable |
|
Manual |
Yes |
|
Quick installation guide |
Yes |
|
