Kioxia XD7P 3.8TB E1.S PCIe XD7P 9.5MM SED Bare
|
|
Regularly: $1036.00
On Sale: $994.56
Sale Ends:
May 10th, 2024
Manufacturer:
Kioxia
Data Center NVMe™ SSD, 3840GB, SED
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59452574
|
KXDZDRJJ3T84
|
8592978481612 |
Active
|
Details
|
General Information |
|
Summary |

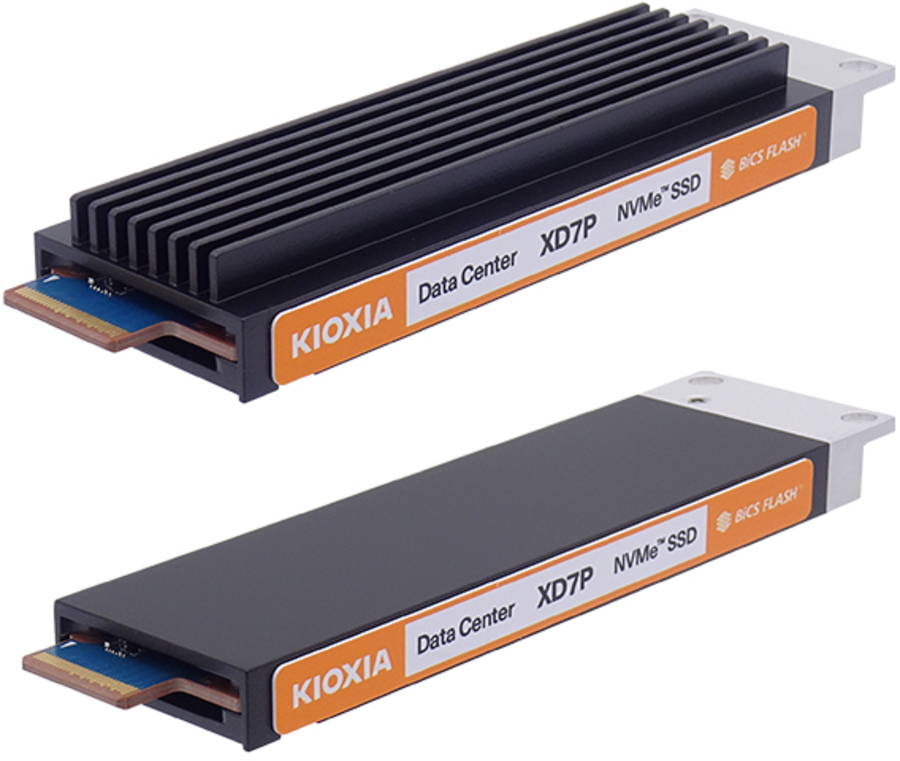

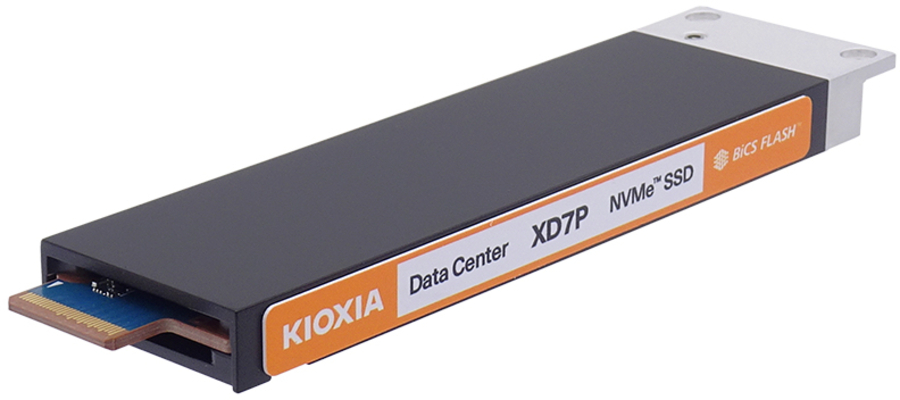

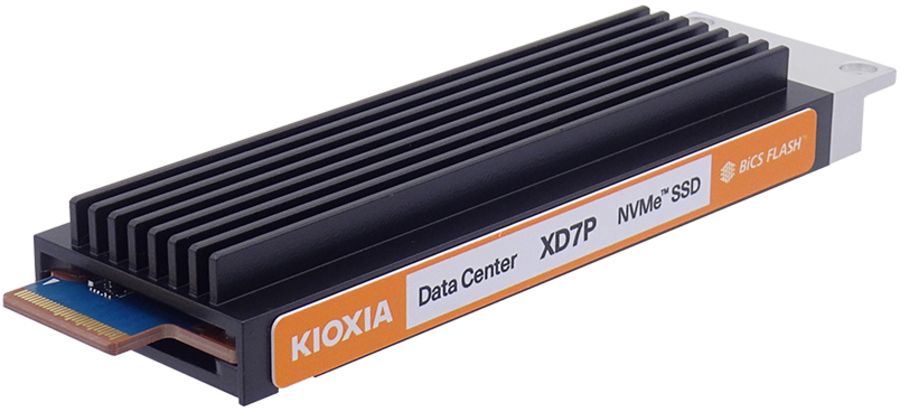

KIOXIA XD7P Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification. In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD7P Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB. |
|
Features |
|
SSD form factor |
E1.S |
|
SSD capacity |
3.84 TB |
|
Interface |
PCI Express 5.0 |
|
Memory type |
BiCS FLASH TLC |
|
NVMe |
Yes |
|
Component for |
Server/workstation |
|
Hardware encryption |
Yes |
|
NVMe version |
2.0 |
|
Read speed |
7200 MB/s |
|
Write speed |
4800 MB/s |
|
Random read (4KB) |
1650000 IOPS |
|
Random write (4KB) |
180000 IOPS |
|
Drive writes per day (DWPD) |
1 |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (read) |
20 W |
|
Power consumption (idle) |
3 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating shock |
700 G |
|
Vibration resistance |
1.24 G |
|
Weight & dimensions |
|
Width |
33.8 mm |
|
Depth |
118.8 mm |
|
Height |
15 mm |
|
Weight |
90 g |
|
