LSI 05-50137-02 9502-16i 16-Channel Tri-Mode OCP 3.0 SAS/SATA/NVMe HBA Storage Controller
|
|
Price: $1022.00
Manufacturer:
LSI
PCIe Gen 4.0 Tri-Mode HBA OCP 3.0 SFF storage adapter, 2x8 SFF-8654, 12 Gb/s, x8 lane PCI Express 4.0, 9W, 115 x 76 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59469583
|
05-50137-02
|
830343007684 |
Active
|
Details
|
General Information |
|
Summary |

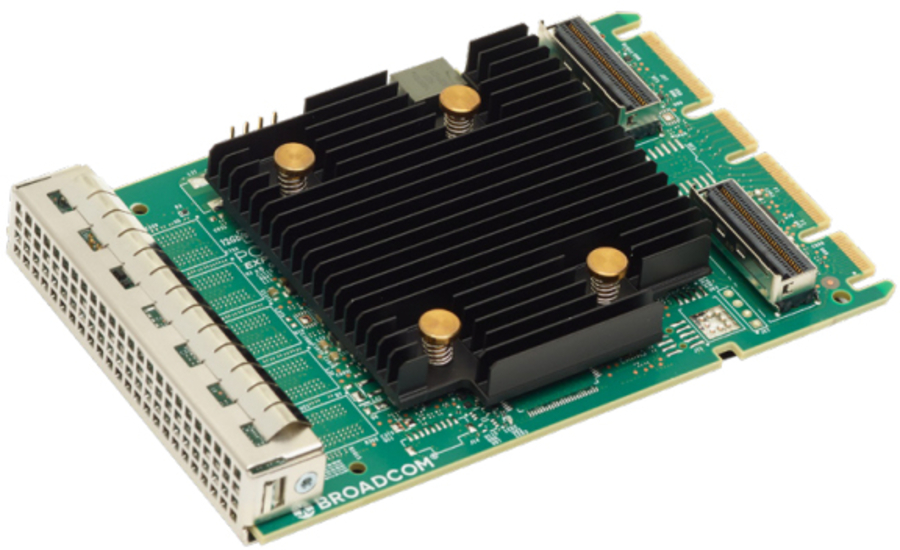

The 16-port, OCP 3.0 SFF Tri-Mode 9502-16i NVMe/SAS/SATA HBA enables more flexibility when integrating storage into the server, where a small form factor is required.
The OCP HBA enables the operation of NVMe, SAS or SATA devices in a single drive bay. By using an OCP slot for storage, users can free up a standard PCIe adapter slot for other uses. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SFF-8654 |
|
Host interface gender |
Male |
|
Design |
|
Internal |
Yes |
|
Purpose |
Server |
|
Cooling type |
Passive |
|
Mean time between failures (MTBF) |
5000000 h |
|
Features |
|
Data transfer rate (max) |
12 Gbit/s |
|
Power |
|
Power consumption (typical) |
9 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Weight & dimensions |
|
Width |
76 mm |
|
Depth |
115 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
