General Information |
|
Summary |

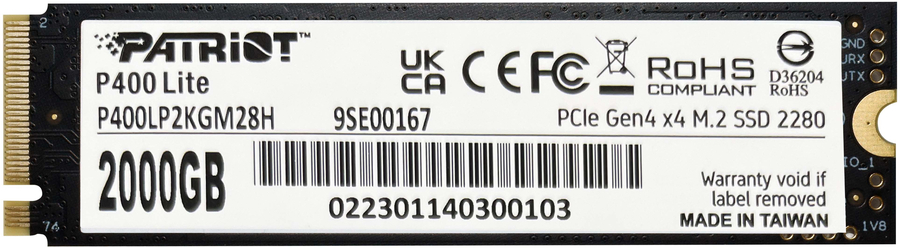

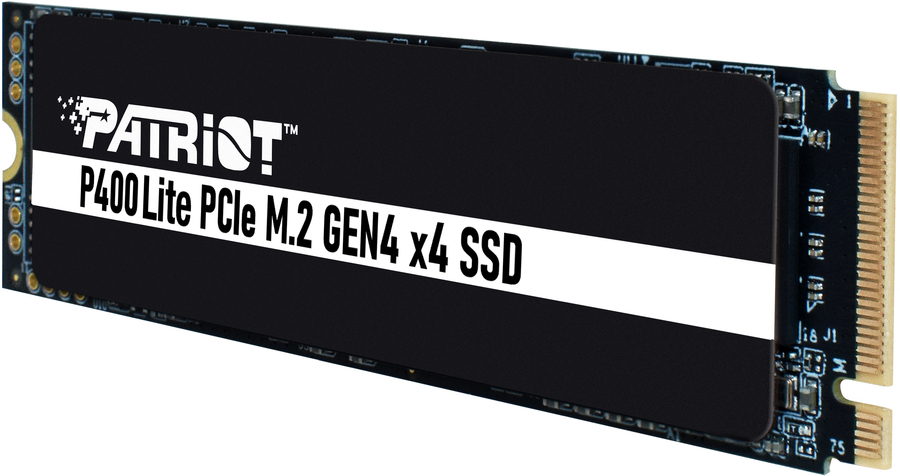

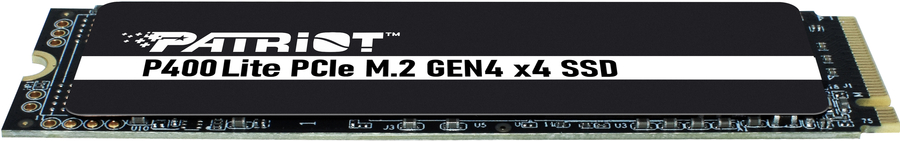

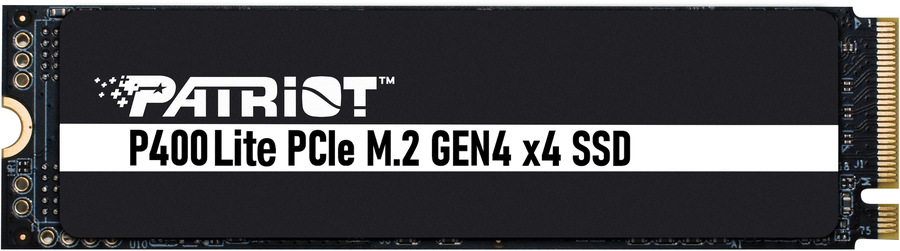

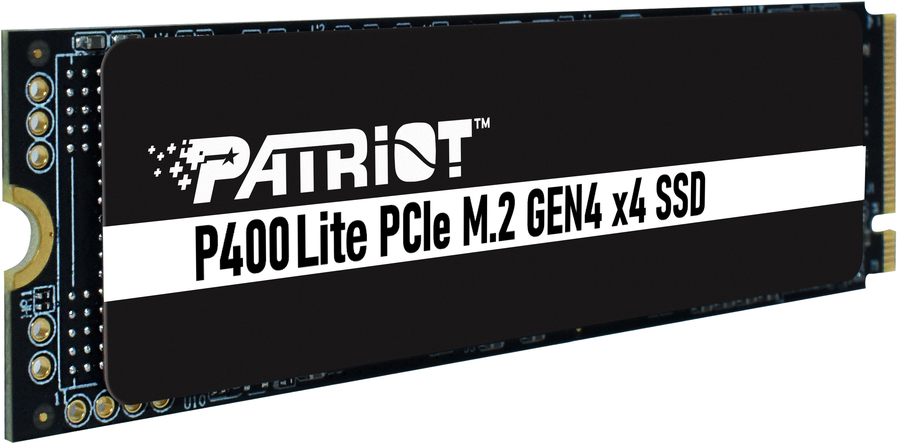

The P400 Lite is the latest in Patriot’s high-speed Gen 4 x4 PCIe M.2 storage solutions. Featuring low power consumption, multi-application uses and highly compatible M.2 2280 specification for easy installation, the P400 Lite offers excellent reliability for all users. With large storage capacities, faster data access, quick transfer speeds and an improved graphene heatshield for temperature dissipation, the P400 Lite offers sharp performance with zero compromise for quality. |
|
Features |
|
SSD form factor |
M.2 |
|
SSD capacity |
2 TB |
|
Interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
Component for |
PC/Laptop |
|
NVMe version |
1.4 |
|
Random read (4KB) |
380000 IOPS |
|
Random write (4KB) |
540000 IOPS |
|
Sequential read speed (ATTO) |
3500 MB/s |
|
Sequential write speed (ATTO) |
2700 MB/s |
|
Sequential read speed (CDM) |
3500 MB/s |
|
Sequential write speed (CDM) |
2700 MB/s |
|
PCI Express interface data lanes |
x4 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
S.M.A.R.T. support |
Yes |
|
ECC |
Yes |
|
End-to-End Data Protection |
Yes |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
|
Power |
|
Power consumption (average) |
2.38 W |
|
Power consumption (idle) |
0.38 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Technical details |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
|
Warranty period |
5 year(s) |
|
Weight & dimensions |
|
Width |
220 mm |
|
Depth |
80 mm |
|
Height |
3.8 mm |
|
Weight |
9 g |
|

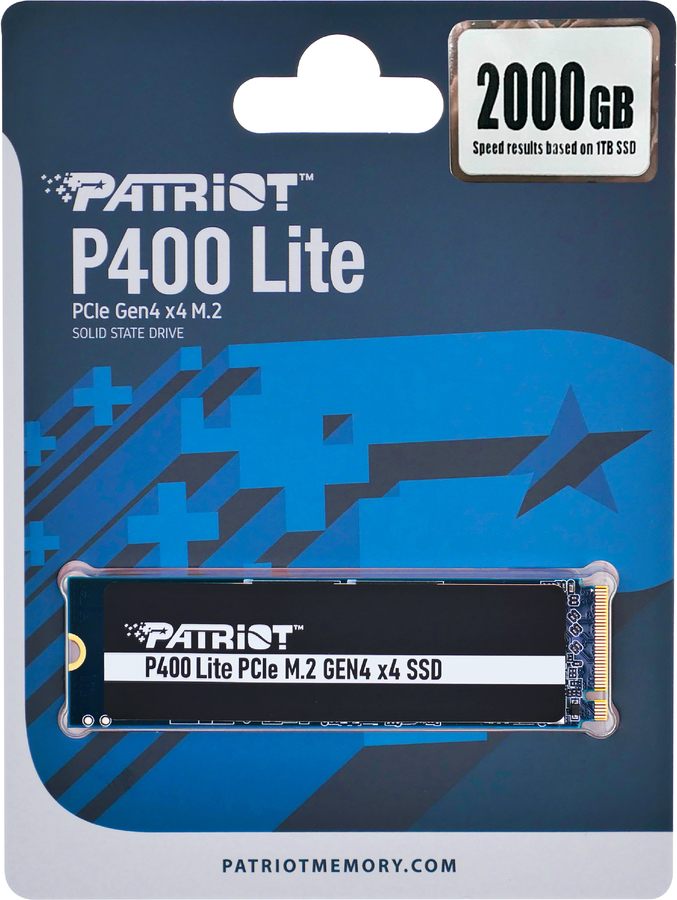

Packaging data |
|
Package width |
130.8 mm |
|
Package depth |
6.6 mm |
|
Package height |
99.6 mm |
|
Package weight |
20 g |
