General Information |
|
Summary |
Contemporary and Affordable Style for Your Family.
The IdeaCentre 510A will make things easy for you. This compact desktop PC was designed to go easy on your wallet and your lifestyle. Offering you performance powerful enough to make your most difficult tasks painless, a contemporary form factor that’s easy on the eyes, and the connectivity needed to effortlessly share the content you and your family will enjoy creating on it.
Try to Challenge It — We Dare You
The new standard for PC performance has arrived with up to 7th Generation Intel® Core™ processors. Offering a gamut of performance increases, this chip family represents the latest version of Intel® processors—meaning you will enjoy the latest performance for work or play. This processor can easily handle whatever task you throw at it.
Form Meets Function

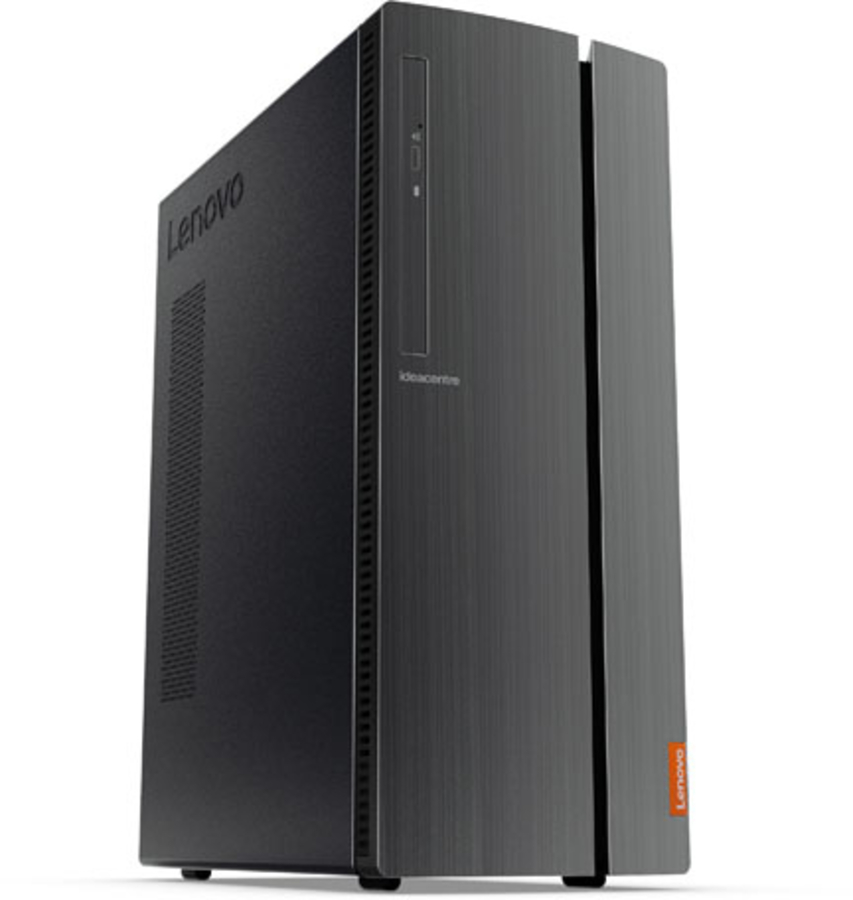

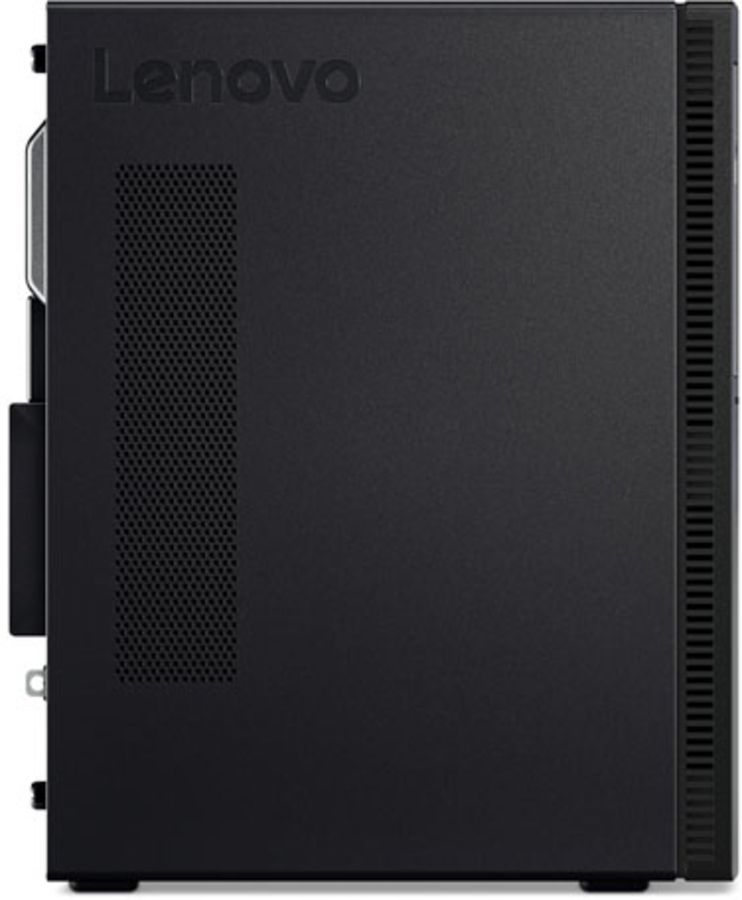

Compact and contemporary, the IdeaCentre 510A also features a brushed closure that makes it a great complement to your contemporary home. Enjoy its high performance and simple design at the same time, in this elegant addition to your home.
No Need to Sacrifice Looks for Functionality

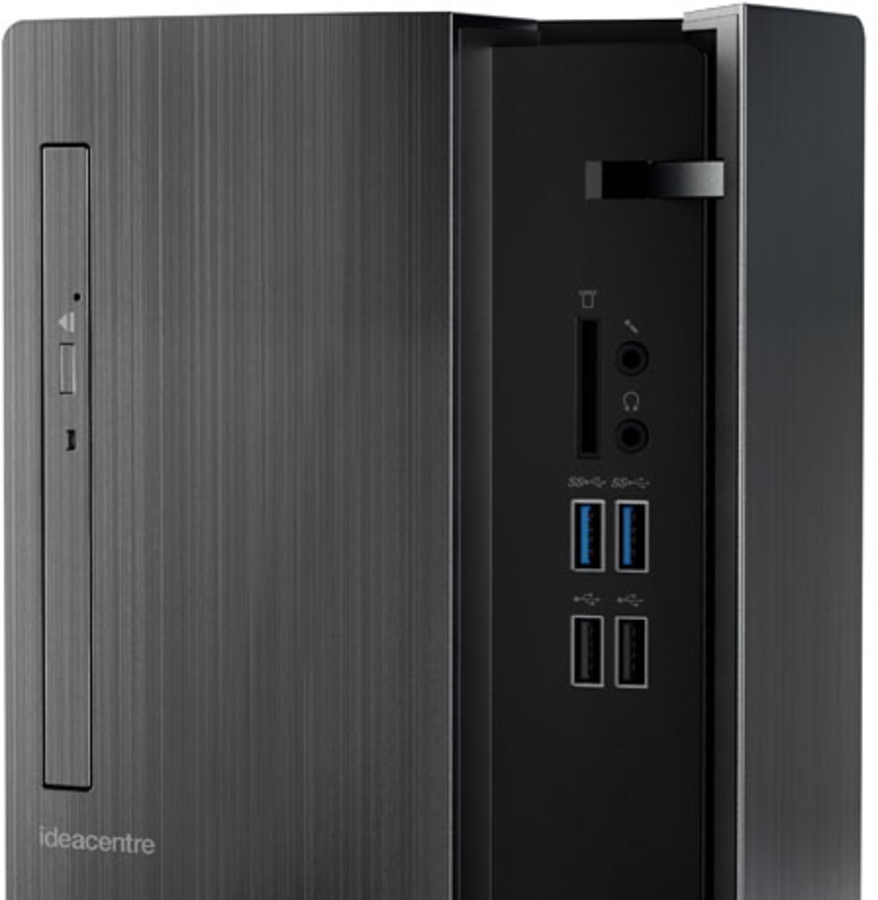

The IdeaCentre 510A features multiple ways to connect your monitor, keyboard, external hard drive, camera and favorite speakers—but there’s no need to fret about unsightly ports. Its abundant front ports are housed behind a magnetic door, so this machine keeps you plugged in while maintaining its classy style.
Connects to Almost Any Device or Accessory — Alone or All at Once

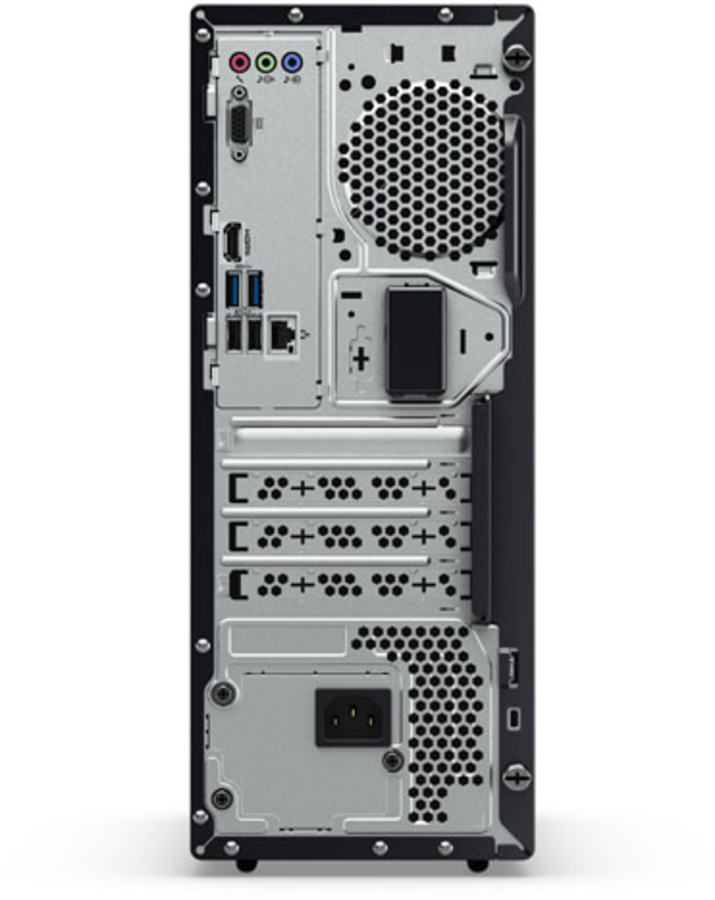

Your monitor, keyboard, external hard drive, camera and favorite speakers don’t need to vie for available ports on the IdeaCentre 510A. This machine offers multiple ways to connect, including 6 x USB 3.0, 2 x USB 2.0, 1 x VGA, 1 x HDMI and 1 x LAN with optional wireless support. Easily upload, transfer, display and play your media.
Cloud Content Makes It Easy to Connect With Your Family
Accessible via an easy-to-use app, Lenovo Family Cloud gives your family wireless access to secure data storage on your IdeaCentre 510A — from other devices. Effortlessly upload to your PC via the Lenovo Family Cloud software or access any file on your PC when connecting to the same network. With Lenovo Family Cloud, everything on your home PC is at your fingertips. |
|
Processor |
|
Processor family |
Intel® Core™ i3 |
|
Processor manufacturer |
Intel |
|
Processor model |
i3-7100 |
|
Processor frequency |
3.9 GHz |
|
Processor generation |
7th gen Intel® Core™ i3 |
|
Processor cores |
2 |
|
Processor threads |
4 |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Processor cache |
3 MB |
|
Processor cache type |
Smart Cache |
|
System bus rate |
8 GT/s |
|
Bus type |
DMI3 |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor codename |
Kaby Lake |
|
Thermal Design Power (TDP) |
51 W |
|
Tjunction |
100 °C |
|
PCI Express slots version |
3.0 |
|
Maximum number of PCI Express lanes |
16 |
|
PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
|
Number of processors installed |
1 |
|
Stepping |
S0 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory types supported by processor |
DDR3L-SDRAM, DDR4-SDRAM |
|
Memory clock speeds supported by processor |
1333,1600,2133,2400 MHz |
|
ECC supported by processor |
No |
|
Memory |
|
Internal memory |
4 GB |
|
Maximum internal memory |
32 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory layout (slots x size) |
1 x 4 GB |
|
Memory slots |
2x DIMM |
|
Memory clock speed |
2400 MHz |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
1 TB |
|
Optical drive type |
DVD±RW |
|
Storage media |
HDD |
|
Number of HDDs installed |
1 |
|
HDD capacity |
1 TB |
|
HDD speed |
7200 RPM |
|
HDD size |
3.5" |
|
Card reader integrated |
Yes |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® HD Graphics 630 |
|
On-board graphics card family |
Intel® HD Graphics |
|
On-board graphics card base frequency |
350 MHz |
|
On-board graphics card dynamic frequency (max) |
1100 MHz |
|
Maximum on-board graphics card memory |
64 GB |
|
Number of displays supported (on-board graphics) |
3 |
|
On-board graphics card DirectX version |
12.0 |
|
On-board graphics card OpenGL version |
4.4 |
|
On-board graphics card ID |
0x5912 |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
|
Antenna type |
1x1 |
|
Bluetooth |
Yes |
|
Bluetooth version |
4.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
|
HDMI ports quantity |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
DVI port |
No |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
Line-out |
Yes |
|
Line-in |
Yes |
|
Design |
|
Chassis type |
Tower |
|
Product colour |
Black |
|
Volume |
15 L |
|
Placement supported |
Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
PC |
|
Motherboard chipset |
Intel® B250 |
|
Audio chip |
Realtek ALC662 |
|
Audio system |
High Definition Audio |
|
Password protection |
Yes |
|
Password protection type |
HDD, Power on |
|
Software |
|
Operating system installed |
Windows 10 Home |
|
Operating system architecture |
64-bit |
|
Processor special features |
|
Intel 64 |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Embedded options available |
No |
|
Intel® InTru™ 3D Technology |
Yes |
|
Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
|
Intel Clear Video Technology |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel TSX-NI |
No |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
No |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel Trusted Execution Technology |
No |
|
Execute Disable Bit |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes |
|
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
|
Processor package size |
37.5 x 37.5 mm |
|
Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
|
Processor code |
SR35C |
|
Scalability |
1S |
|
CPU configuration (max) |
1 |
|
Thermal solution specification |
PCG 2015C |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Identity Protection Technology version |
1.00 |
|
Intel Stable Image Platform Program (SIPP) version |
0.00 |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel TSX-NI version |
0.00 |
|
Processor ARK ID |
97455 |
|
Intel® Turbo Boost Technology |
No |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® Quick Sync Video Technology |
Yes |
|
Intel® Identity Protection Technology (Intel® IPT) |
Yes |
|
Conflict-Free processor |
Yes |
|
Power |
|
Power supply |
180 W |
|
Weight & dimensions |
|
Width |
145 mm |
|
Depth |
285.2 mm |
|
Height |
366 mm |
|
Weight |
5.8 kg |
|
Packaging content |
|
Display included |
No |
|
Mouse included |
Yes |
|
Keyboard included |
Yes |
|
Other features |
|
Optical drives quantity |
1 |
