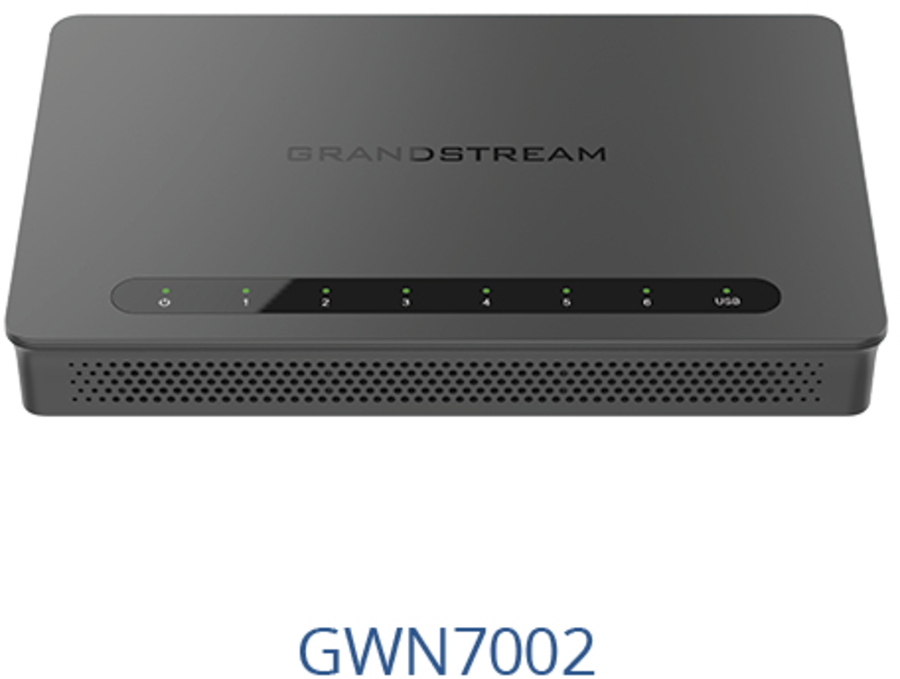

Grandstream Multi-wan 6-port Gigabit VPN Wired Router
|
|
Regularly: $88.00
On Sale: $84.48
Sale Ends:
May 10th, 2024
Manufacturer:
Grandstream
Multi-WAN Gigabit VPN Router
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59536267
|
GWN7002
|
- |
Active
|
Details
|
General Information |
|
Summary |
The GWN7000 Series are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.
GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.
GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.
|
|
WAN connection |
|
Ethernet WAN |
Yes |
|
SIM card slot |
No |
|
SFP WAN |
Yes |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
|
Throughput |
2.2 Gbit/s |
|
Static route |
Yes |
|
Port forwarding |
Yes |
|
Management features |
|
Web-based management |
Yes |
|
Quality of Service (QoS) support |
Yes |
|

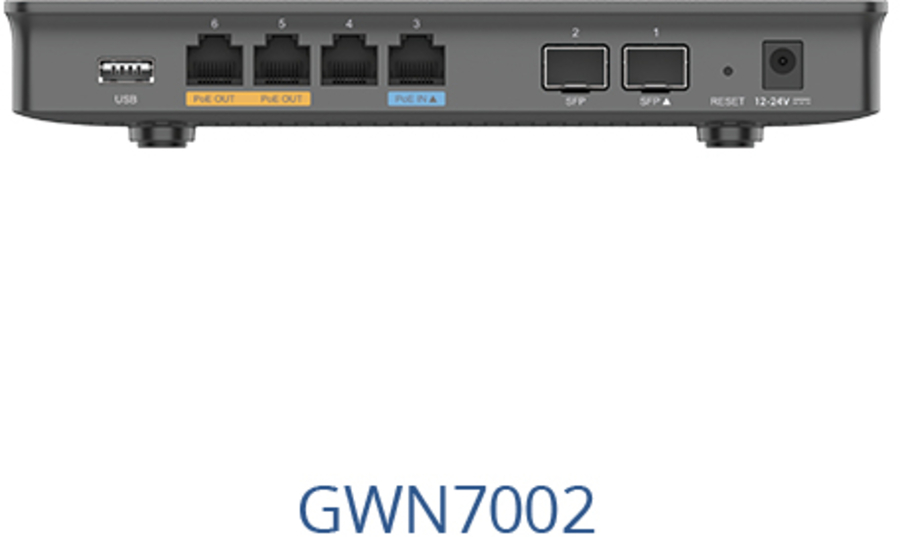

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Power over Ethernet (PoE) ports quantity |
2 |
|
SFP module slots quantity |
2 |
|
USB ports quantity |
1 |
|
USB version |
2.0 |
|
DC-in jack |
Yes |
|
Protocols |
|
Supported network protocols |
IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
|
Security |
|
Security algorithms |
IPSec |
|
URL filtering |
Yes |
|
IP address filtering |
Yes |
|
Network address translation (NAT) |
Yes |
|
VPN tunnels quantity |
50 |
|
VPN support |
SSL VPN Server / Client-to-Site
• IPsec VPN Client-to-Site / Site-to-Site
• PPTP VPN Server / Clien-to-Site
• L2TP Client-to-Site
• WireGuard (pending)
• IPSec Encryption: DES, 3DES, AES
• IPSec Authentication: MD5, SHA-1, SHA2-256
• IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
• IPSec Protocols: ESP
• IPSec NAT Traversal
• SSL VPN Encryption: AES, DES
• SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
• SSL VPN Certificate: RSA
• PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec
• PPTP/L2TP Authentication: MS-CHAPv1/2 |
|
NAT functionality |
30K NAT sessions |
|
Features |
|
Built-in processor |
Yes |
|
Processor frequency |
1000 MHz |
|
Flash memory |
256 MB |
|
Internal memory |
256 MB |
|
Certification |
FCC, CE, RCM, IC, UKCA |
|
Design |
|
Product colour |
Black |
|
Wall mountable |
Yes |
|
LED indicators |
Yes |
|
Power |
|
Power consumption (typical) |
24 W |
|
Power source type |
DC |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Output voltage |
24 V |
|
Output current |
1 A |
|
Power over Ethernet (PoE) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-30 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
210 mm |
|
Depth |
130 mm |
|
Height |
35 mm |
|
Weight |
505 g |
|
Packaging data |
|
AC adapter included |
Yes |
|
Cables included |
LAN (RJ-45) |
|
Quick installation guide |
Yes |
|
Package width |
246 mm |
|
Package depth |
235 mm |
|
Package height |
54 mm |
|
Package weight |
730 g |
|
