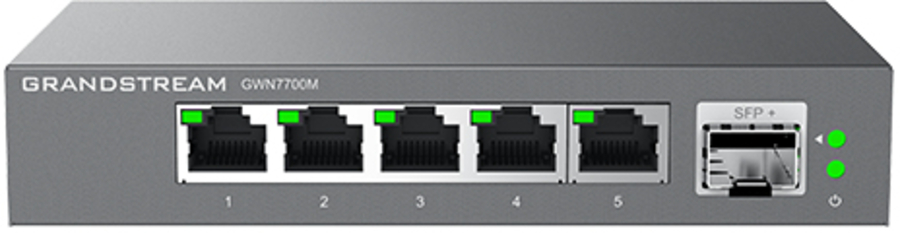

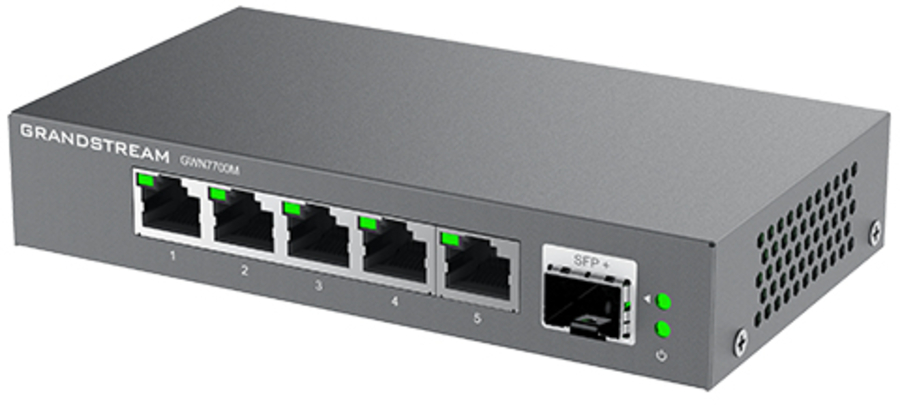

Grandstream GWN7700M Unmanaged 2.5 6-port Multi-gigabit Switch
|
|
Price: $78.00
Manufacturer:
Grandstream
2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59536268
|
GWN7700M
|
- |
Active
|
Details
|
General Information |
|
Summary |
The GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit, and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7700M and GWN77001M require no configuration or installation, are desktop and wall-mountable, and provide auto MDI/MDIX to eliminate the need for crossover cables. They support auto-negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The plug-and-play GWN7700M and GWN7701M are the ideal unmanaged network switches for home offices and small-to-medium businesses that require
high-speed, multi-Gigabit connectivity.
|
|
Management features |
|
Switch type |
Unmanaged |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
|
Installed SFP+ modules quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Auto-negotiation |
Yes |
|
Active link detection |
Yes |
|
Data transmission |
|
Switching capacity |
45 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9 |
|
Security |
|
IGMP snooping |
Yes |
|
MAC address filtering |
Yes |
|
Authentication type |
IEEE 802.1x |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
Black |
|
LED indicators |
Activity, Power |
|
Power |
|
Power source |
DC |
|
Power supply included |
Yes |
|
DC input voltage |
12 V |
|
Input current |
1 A |
|
Power consumption (max) |
9.7 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
145 mm |
|
Height |
27 mm |
|
Weight |
300 g |
|
Packaging data |
|
Package width |
110 mm |
|
Package depth |
255 mm |
|
Package height |
53 mm |
|
Package weight |
520 g |
|
