Ubiquiti NanoBeam 5AC Gen2 5 Ghz, 450 Mbps, 19 dBi, 10/100/1000 Ethernet, 128 MB DDR2, 8 MB Flash, 1.5:1 VSWR, 189 x 189 x 125 mm
|
|
Regularly: $127.00
On Sale: $121.92
Sale Ends:
May 10th, 2024
Manufacturer:
Ubiquiti
5 Ghz, 450 Mbps, 19 dBi, 10/100/1000 Ethernet, 128 MB DDR2, 8 MB Flash, 1.5:1 VSWR, 189 x 189 x 125 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59620213
|
NBE-5AC-GEN2
|
810354026348 |
Active
|
Details
|
General Information |
|
Summary |
Ubiquiti NBE-5AC-Gen2 NanoBeam AC Outdoor 5GHz 19dBi WiFi Point-to-Point Link, Single (450Mbps AC). The Ubiquiti NBE-5AC-Gen2 NanoBeam AC Outdoor 5GHz 19dBi WiFi Point-to-Point Link is the latest in a generation of airMAX and is designed to integrate a separate WiFi radio for fast and easy setup using a mobile device. The Ubiquiti NBE-5AC-Gen2 NanoBeam features a multi-radio architecture to power a revolutionary RF analytics engine, the most advanced in the industry and includes next-generation airMAX ac technology to boost the advantages of the proprietary TDMA protocol. |
|
Data transmission |
|
Maximum data transfer rate |
450 Mbit/s |
|
Maximum transfer distance |
15000 m |
|
Antenna |
|
Antenna gain level (max) |
19 dBi |
|
Wireless LAN features |
|
Wi-Fi |
Yes |
|
Frequency band |
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
|
Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Security |
|
Security algorithms |
WPA2 |
|
Management features |
|
Web-based management |
Yes |
|
Features |
|
Product type |
Network bridge |
|
Material |
Plastic |
|

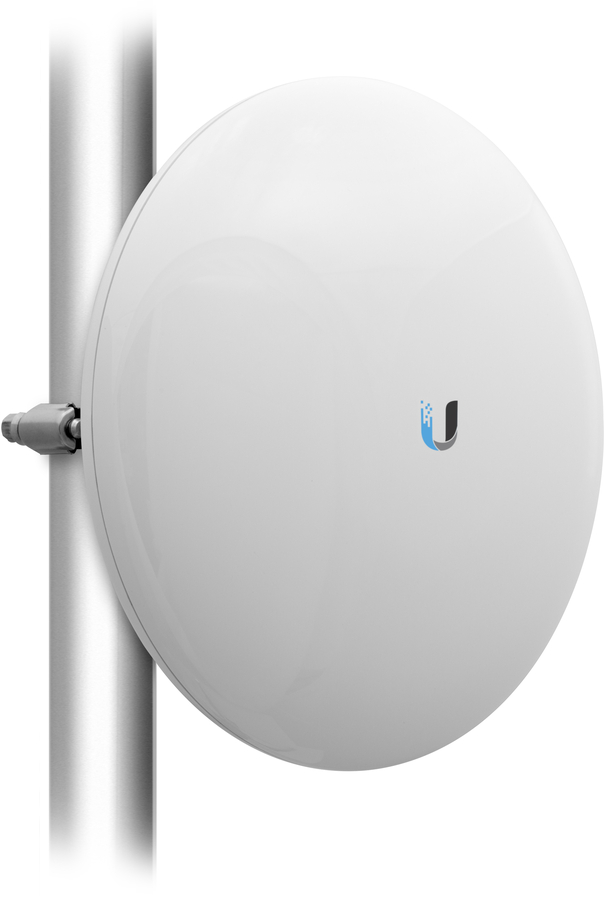

Mounting type |
Pole/Wall |
|
Product colour |
White |
|

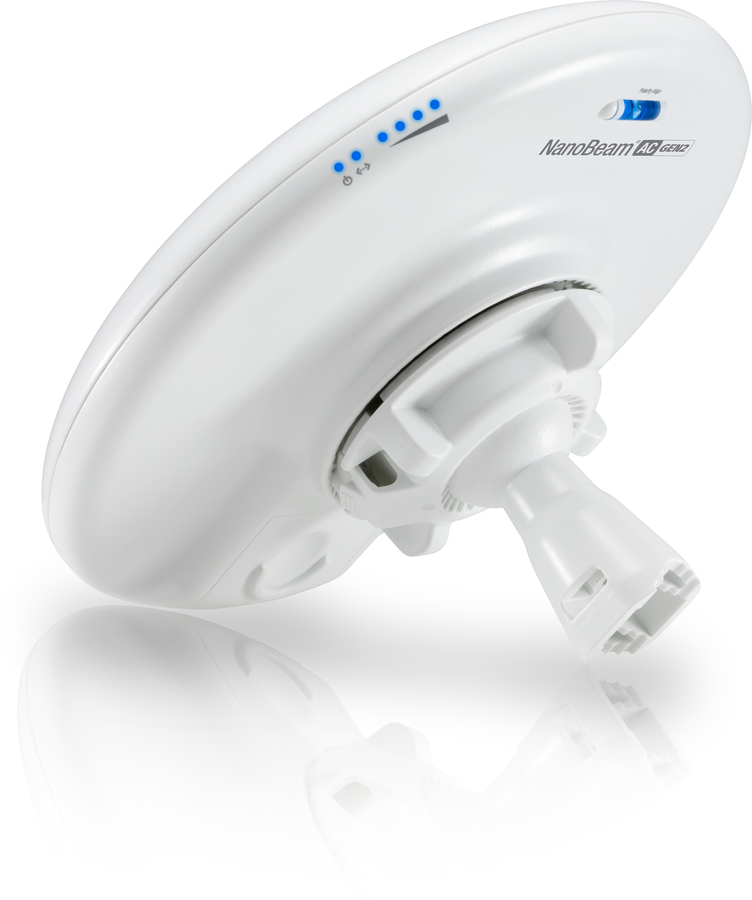

LED indicators |
LAN, Power, Signal strength |
|
Reset button |
Yes |
|
Surge protection |
Yes |
|
Power |
|
Power source type |
PoE |
|
Power consumption (max) |
8.5 W |
|
Power over Ethernet (PoE) |
Yes |
|
DC output voltage |
24 V |
|
DC output current |
0.5 A |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 176 °F |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Certificates |
|
Certification |
CE, FCC, IC, RoHS |
|
Weight & dimensions |
|
Width |
189 mm |
|
Depth |
189 mm |
|
Height |
125 mm |
|
Weight |
530 g |
|
Packaging content |
|
PoE+ Injector(s) |
Yes |
|
Mounting bracket(s) included |
Yes |
|
Cables included |
AC |
|
Technical details |
|
Sustainability certificates |
CE, RoHS |
|
Processor |
|
Processor family |
Atheros |
|
Processor model |
MIPS 74Kc |
|
Processor frequency |
720 MHz |
|
Memory |
|
Flash memory |
8 MB |
|
RAM capacity |
128 MB |
|
RAM type |
DDR2 |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
