General Information |
|
Summary |
RELENTLESS PERFORMANCE
Portable Power With Next-Level Efficiency

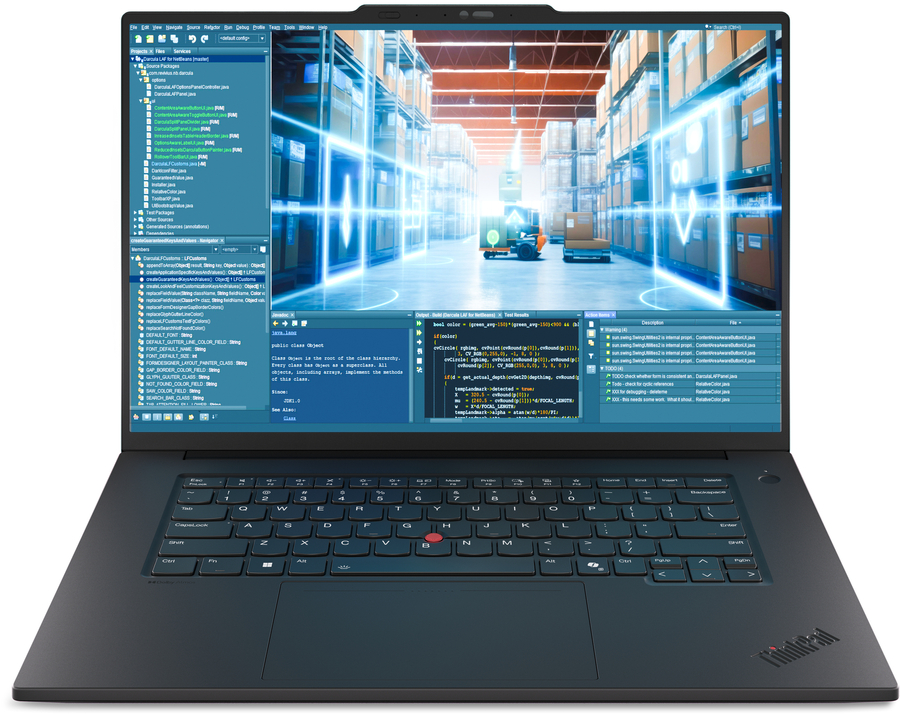

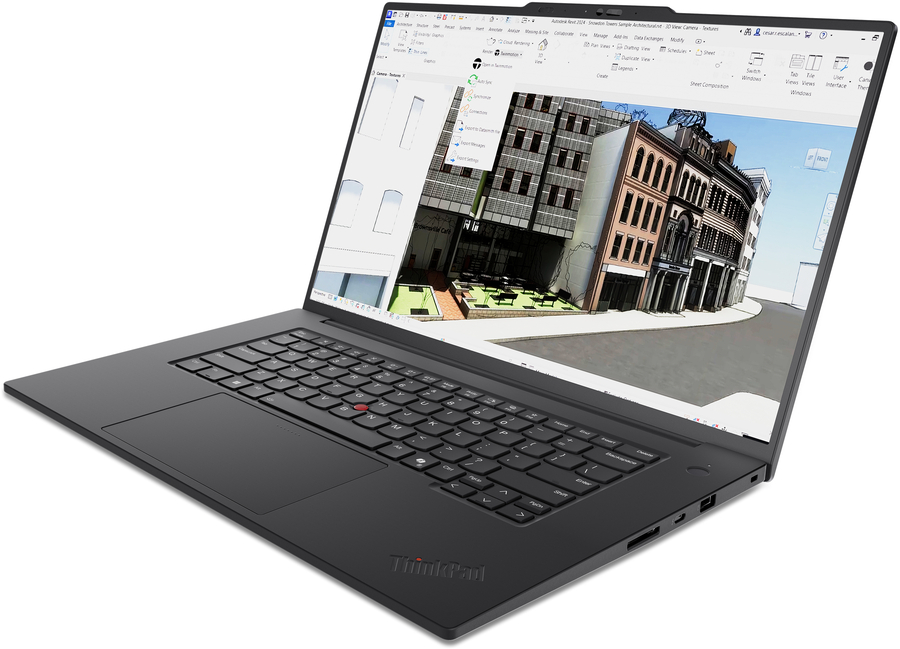

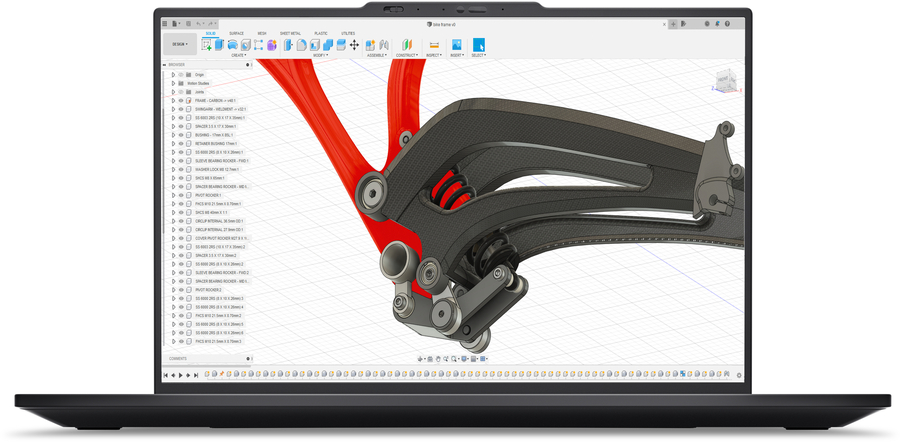

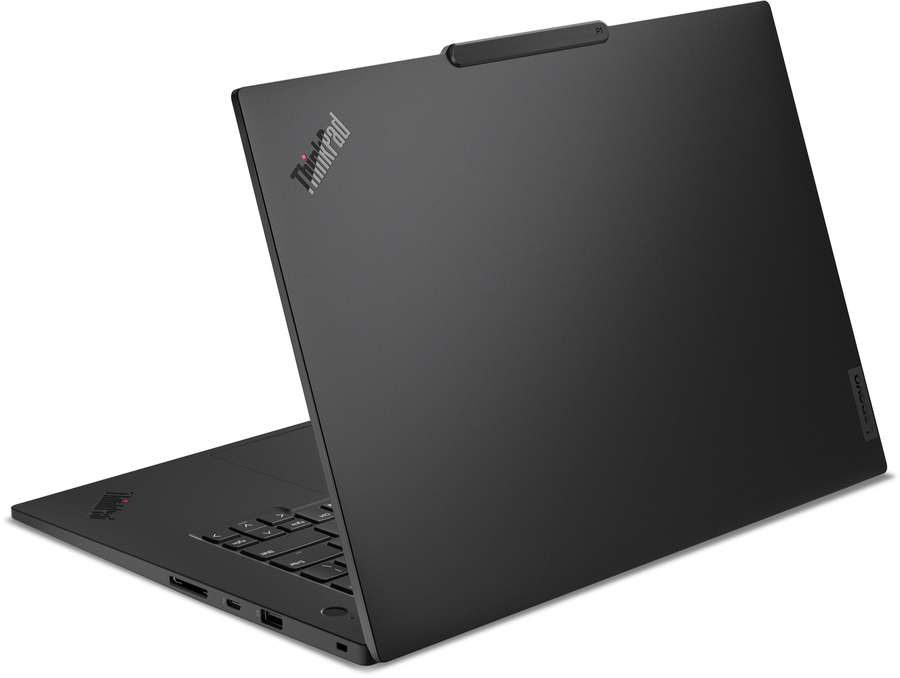

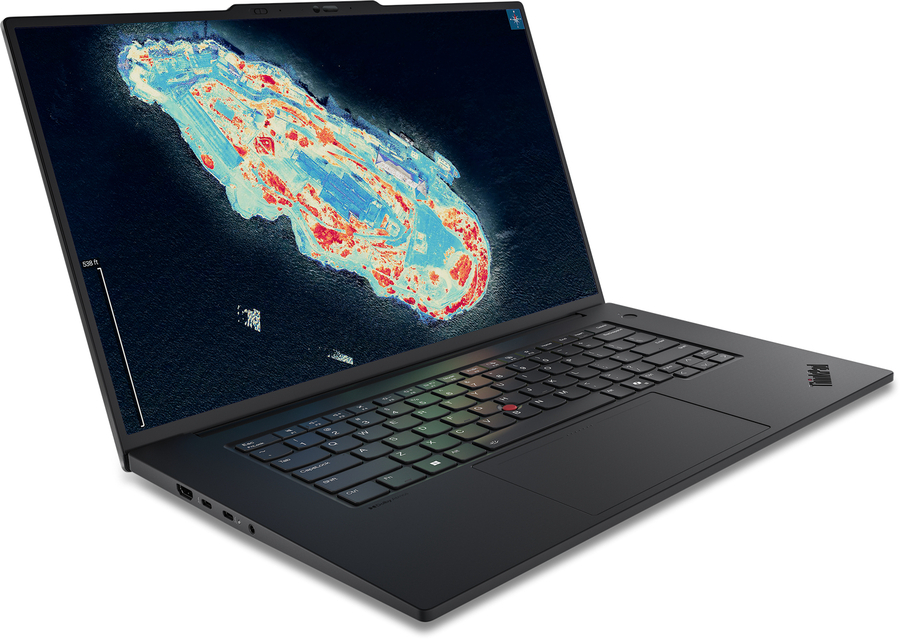

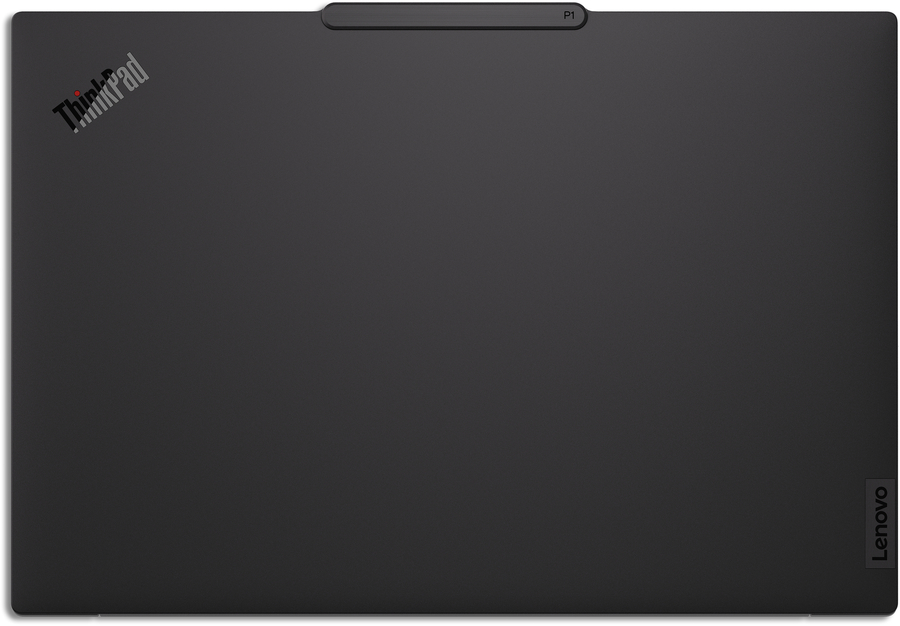

The 16″ Lenovo ThinkPad P1 Gen 8 mobile workstation delivers elite performance in a sleek, lightweight design. Powered by Intel® Core™ Ultra (Series 2) processors and up to NVIDIA RTX PRO™ 2000 Blackwell Generation graphics, it’s built for developers, CAD specialists and creative professionals who demand power without the bulk.
AI-ENHANCED WORKFLOWS
Streamline. Automate. Dominate.
Transform the way you work and boost productivity with advanced AI processing power. Streamline workflows, automate tasks, and work smarter with AI-powered tools that seamlessly integrate into professional applications, enabling faster iterations and more efficient content creation. Perfect for professionals who need quick, effective results.
IMMERSIVE DISPLAY
Sharper, Brighter, Smarter
The 16ʺ ThinkPad P1 Gen 8 elevates visuals with advanced display options, including Tandem OLED (T-OLED) technology. Experience stunning color accuracy, deep contrast, and exceptional brightness for an immersive viewing experience. Perfect for power users, it offers superior outdoor visibility and power efficiency, ensuring vibrant visuals on the go.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all. |
|
Design |
|
Product type |
Mobile workstation |
|
Product colour |
Black |
|
Form factor |
Clamshell |
|
Housing material |
Aluminium |
|
Display |
|
Display diagonal |
40.6 cm (16") |
|
Display resolution |
3840 x 2400 pixels |
|
Touchscreen |
No |
|
HD type |
WQUXGA |
|
Panel type |
IPS |
|
LED backlight |
Yes |
|
Native aspect ratio |
16:10 |
|
Anti-glare screen |
Yes |
|
Display brightness |
800 cd/m² |
|
RGB colour space |
DCI-P3 |
|
Colour gamut |
100% |
|
Maximum refresh rate |
60 Hz |
|
Contrast ratio (typical) |
1500:1 |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
Dolby Vision, DisplayHDR 400 |
|
Processor |
|
Processor family |
Intel Core Ultra 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
255H |
|
Processor generation |
Intel Core Ultra (Series 2) |
|
Processor cores |
16 |
|
Processor threads |
16 |
|
Processor boost frequency |
5.1 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Low Power Efficient-cores |
2 |
|
Performance-core Max Turbo Frequency |
5.1 GHz |
|
Efficient-core Max Turbo Frequency |
4.4 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
|
Performance-core base frequency |
2 GHz |
|
Efficient-core base frequency |
1.5 GHz |
|
Low Power Efficient-core Base Frequency |
700 MHz |
|
Processor cache |
24 MB |
|
Processor base power |
28 W |
|
Maximum turbo power |
115 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|
Total processor performance up to |
96 TOPs |
|
NPU performance up to |
13 TOPs |
|
GPU performance up to |
74 TOPs |
|
Memory |
|
Internal memory |
32 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
LPDDR5x-SDRAM |
|
Memory clock speed |
7467 MHz |
|
Memory form factor |
LPCAMM2 |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
1 TB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
SD |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
Yes |
|
Discrete graphics card model |
NVIDIA RTX PRO 2000 Blackwell |
|
On-board graphics card model |
Intel Arc 140T |
|
Discrete GPU manufacturer |
NVIDIA |
|
Discrete graphics card memory |
8 GB |
|
Discrete graphics memory type |
GDDR7 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Arc Graphics |
|
Audio |
|
Audio chip |
Cirrus Logic CS42L43 |
|
Audio system |
Dolby Atmos |
|
Number of built-in speakers |
2 |
|
Speaker power |
2 W |
|
Built-in microphone |
Yes |
|
Number of microphones |
2 |
|
Camera |
|
Front camera |
Yes |
|
Front camera resolution (numeric) |
5 MP |
|
Infrared (IR) camera |
Yes |
|
Privacy camera |
Yes |
|
Privacy type |
Privacy shutter |
|
Network |
|
Mobile network connection |
No |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
Wi-Fi 7 (802.11be) |
|
Antenna type |
2x2 |
|
WLAN controller model |
Intel Wi-Fi 7 BE201 |
|
WLAN controller manufacturer |
Intel |
|
Ethernet LAN |
No |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.4 |
|
Near Field Communication (NFC) |
No |
|
WWAN |
Not installed |
|

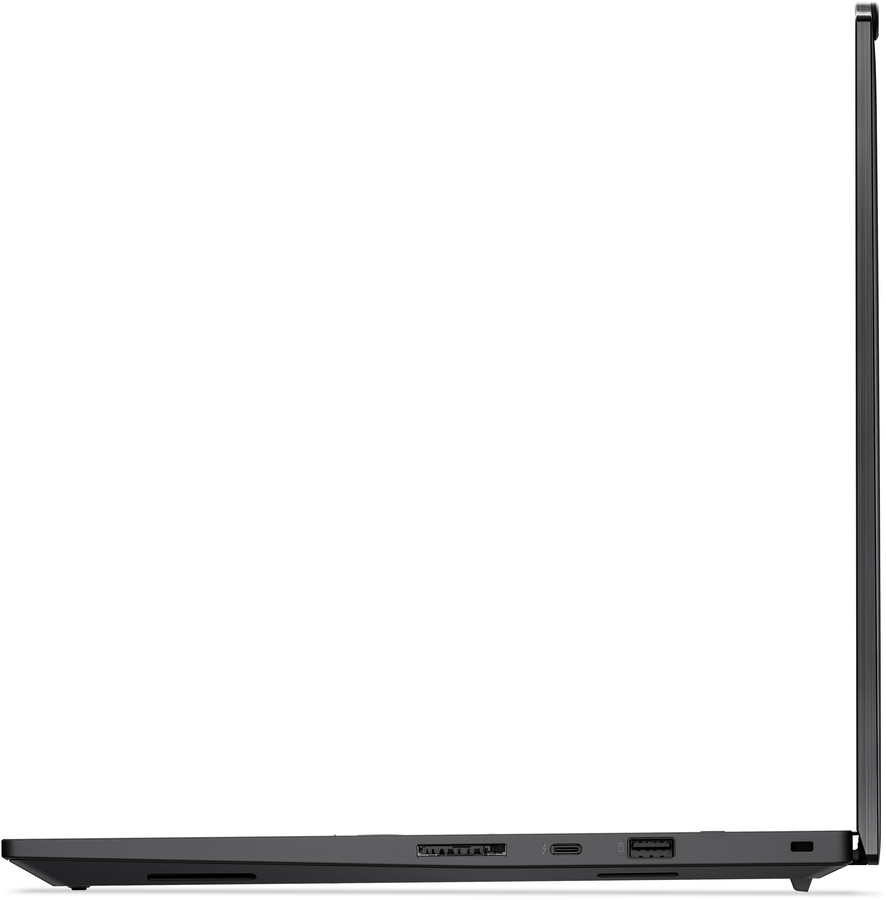

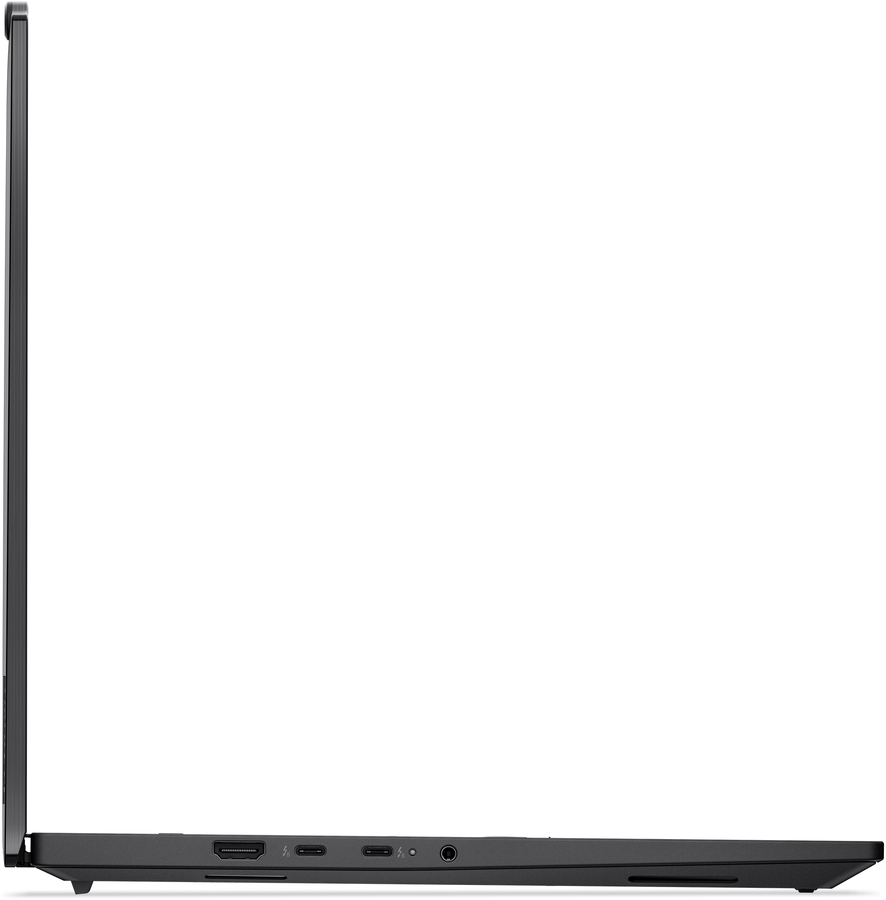

Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
|
HDMI version |
2.1 |
|
Thunderbolt 4 ports quantity |
1 |
|
Thunderbolt 5 ports quantity |
2 |
|
Combo headphone/mic port |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB Sleep-and-Charge |
Yes |
|
USB Sleep-and-Charge ports |
1 |
|
Performance |
|
Motherboard chipset |
Intel SoC |
|
Keyboard |
|
Numeric keypad |
No |
|
Pointing device |
ThinkPad UltraNav |
|
Keyboard backlit |
Yes |
|
Spill-resistant keyboard |
Yes |
|
Keyboard language |
English |
|
Copilot key |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system language |
ENG-UK, US English |
|
Bundled software |
Lenovo AI Now + Intel Connectivity Performance Suite + ThinkShield Pro (SentinelOne, Sepio, Cigent) 1-year |
|
Battery |
|
Battery capacity |
90 Wh |
|
Battery technology |
Lithium-Ion (Li-Ion) |
|
Fast charging |
Yes |
|
Power |
|
USB Type-C charging port |
Yes |
|
AC adapter power |
140 W |
|
AC adapter frequency |
50 - 60 Hz |
|
AC adapter input voltage |
100 - 240 V |
|
USB Power Delivery (USB PD) |
Yes |
|
Security |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Fingerprint reader |
Yes |
|
Smart card reader |
No |
|
Windows Hello |
Yes |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Password protection |
Yes |
|
Password protection type |
Power on, SSD, Supervisor |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
5 - 43 °C |
|
Operating relative humidity (H-H) |
8 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Maximum shipping altitude |
3048 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
MIL-STD-810H military test passed
Eyesafe Certified 2.0
Intel Evo Platform
TÜV Rheinland Low Blue Light |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
|
Weight & dimensions |
|
Weight |
1.84 kg |
|
Width |
354.3 mm |
|
Depth |
241 mm |
|
Height (front) |
9.9 mm |
|
Height (rear) |
1.58 cm |
|
Packaging content |
|
AC adapter included |
Yes |
