General Information |
|
Summary |

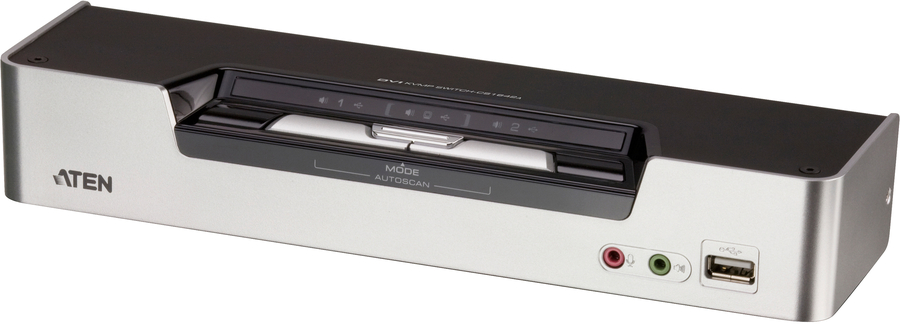

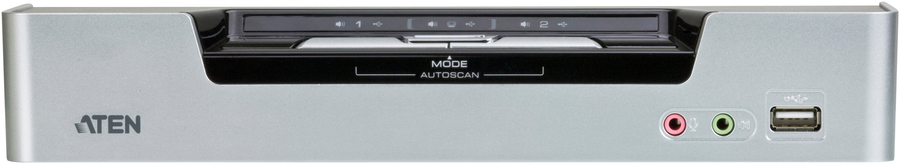

The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality. |
|
Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
DVI-I |
|

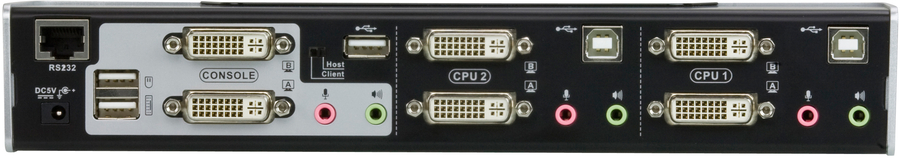

Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
|
DVI-I ports quantity |
6 |
|
Console USB ports quantity |
2 |
|
USB 2.0 ports quantity |
4 |
|
Audio connections |
Yes |
|
Headphone outputs |
2 |
|
Number of microphone inputs |
1 |
|
DC-in jack |
Yes |
|
Performance |
|
Maximum resolution |
2560 x 1600 pixels |
|
Video bandwidth |
60 Hz |
|
Scan interval |
1,99 s |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black, Silver |
|
Rack capacity |
1U |
|
Housing material |
Metal, Plastic |
|
Push button |
Yes |
|
Hot keys |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
DC |
|
DC input voltage |
5.3 V |
|
Power consumption (typical) |
10.6 W |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Other operating systems supported |
Yes |
|
Sustainability |
|
Sustainability certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
262.3 mm |
|
Depth |
76.8 mm |
|
Height |
44 mm |
|
Weight |
560 g |
|
Packaging content |
|
Cables included |
DVI, KVM |
|
Quick installation guide |
Yes |
|
AC adapter included |
Yes |
