Aten 4-Port DVI Dual Link Splitter with Audio

Home :: Audio & Video Products :: Video Products ::


Regularly: $379.00
On Sale: $363.84    Sale Ends: April 12th, 2024

Manufacturer: Aten

4-Port DVI Dual Link/Audio Splitter

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
100974 VS174 672792003707 Active

Details

General Information

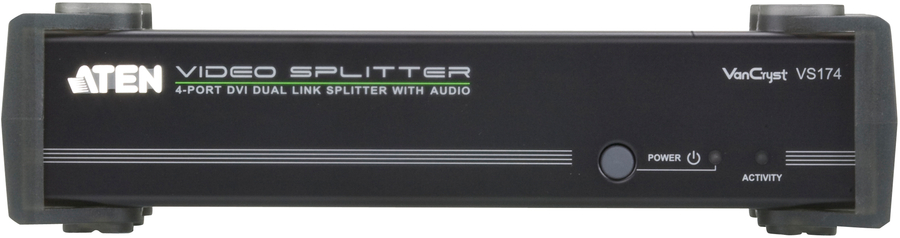

Summary The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
Ports & interfaces

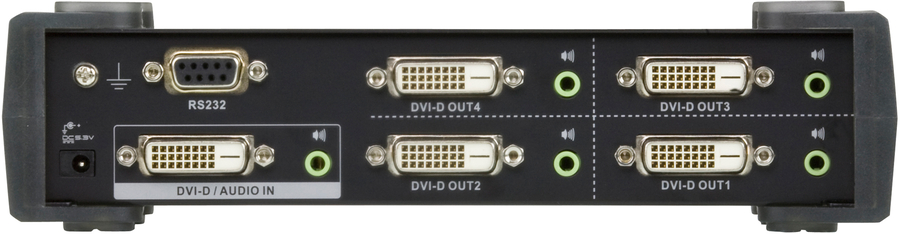

Video ports quantity 5
Video port type DVI
Video out 4x DVI-D
Video in DVI-D DL
Audio ports quantity 5
Serial ports quantity 1
DC-in jack Yes
Features
Maximum resolution 2560 x 1600 pixels
Product colour Black
Housing material Metal
Power LED Yes
Certification RoHS
Power
AC input voltage 5.3 V
Power consumption (typical) 5.6 W
Weight & dimensions
Dimensions (WxDxH) 88 x 210 x 55.5 mm
Weight 730 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Technical details
Audio input 3.5mm
Audio output 3.5mm

Multimedia

Multimedia Items
leaflet (leaflet)
