General Information |
|
Summary |

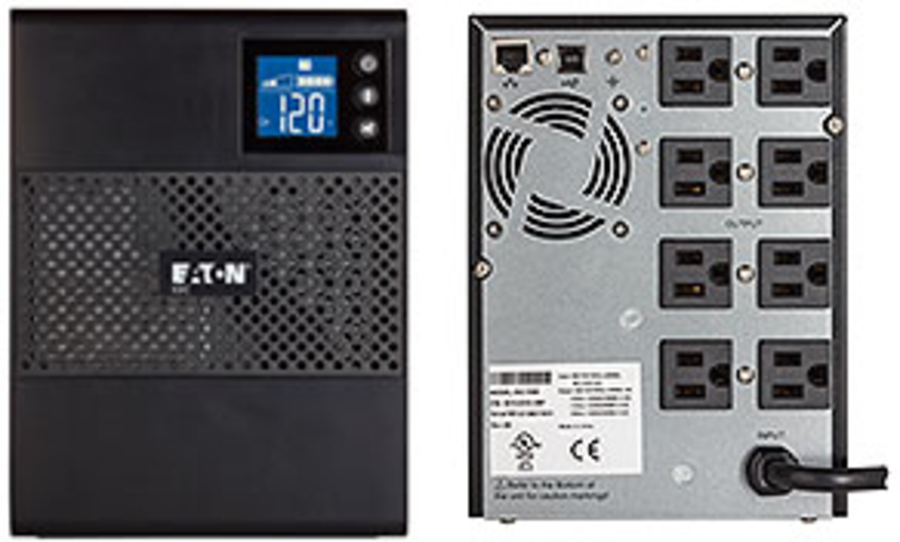

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries. |
|
Features |
|
Output power capacity |
1.5 kVA |
|
Output power |
1080 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
96 V |
|
Input operation voltage (max) |
144 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
100 V |
|
Output operation voltage (max) |
120 V |
|
Efficiency |
94% |
|
Noise level |
40 dB |
|
Surge protection |
Yes |
|
Ports & interfaces |
|
AC outlet types |
NEMA 5–15R |
|
Power plug |
NEMA 5-15P |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB 2.0 ports quantity |
1 |
|
Serial ports quantity |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
5 min |
|
Typical backup time at half load |
13 min |
|
Hot-swap battery |
No |
|
Cold start |
Yes |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.8 m |
|
Display type |
LCD |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
|
Safety regulation & standards |
|
Safety |
CE/cULus/NOM |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
410 mm |
|
Height |
209 mm |
|
Weight |
15.4 kg |
|
Other features |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
120 V |
